ABH 0127 Jamb Mounted Pivot Set - Center Hung

SKU: 0127-US32D
$114.40
  • Features:
    • Non-Handed
    • Pivot set is centered into the door thickness
    • Maximum door load 200 lbs.
    • Maximum door size - 42" x 102"
    • Average weight per unit = 2.5 lbs

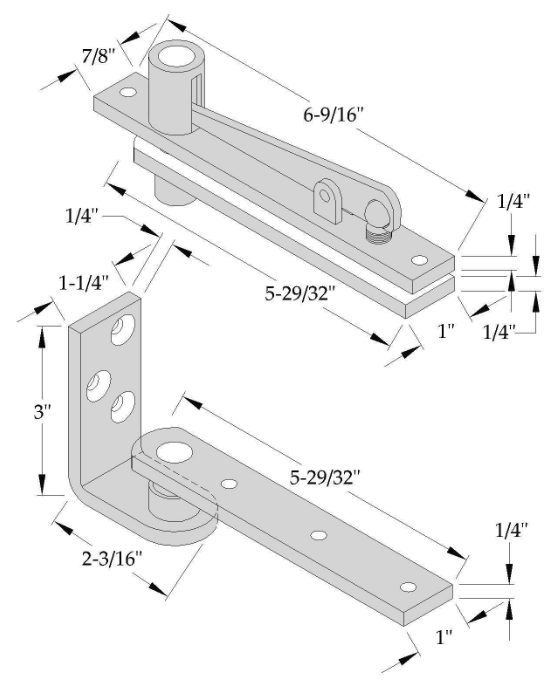

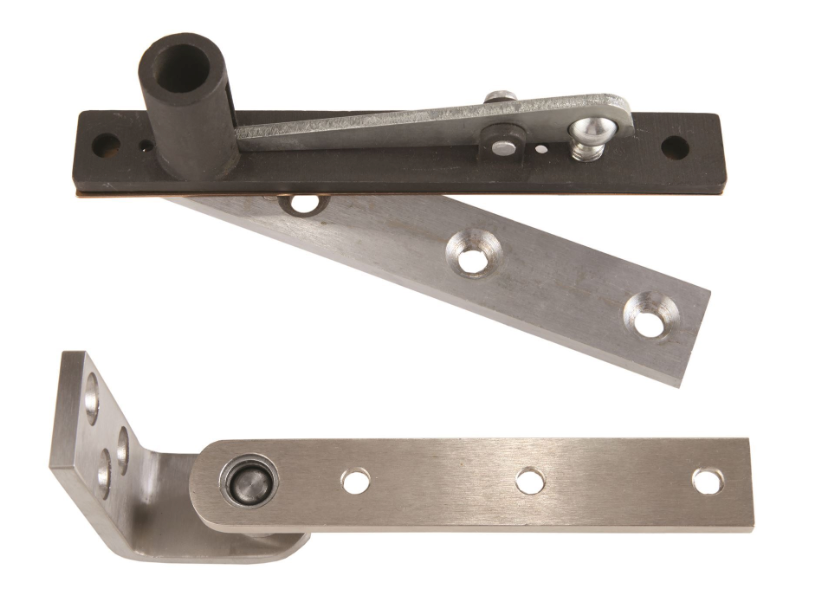

  • Includes:
    • 0320 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door

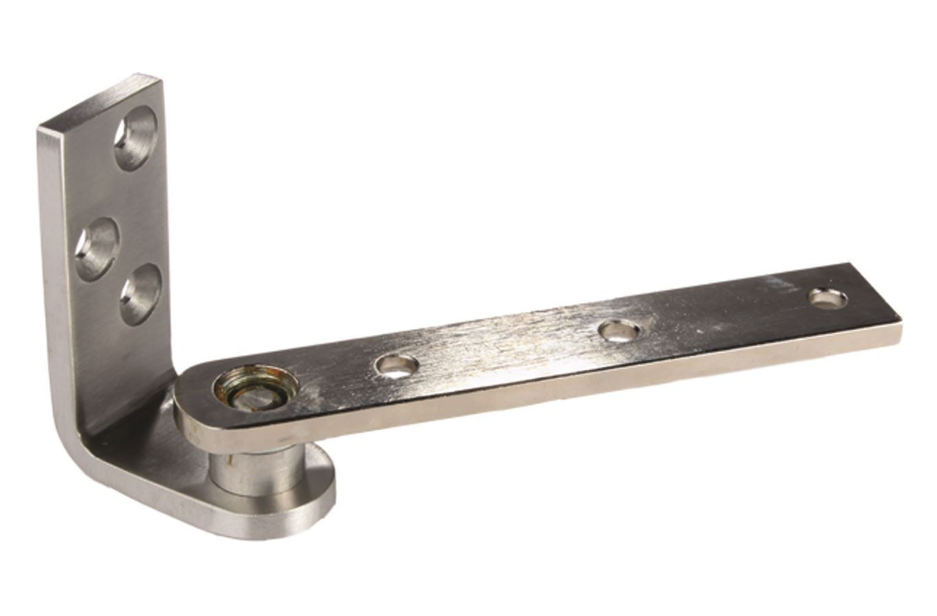

    • 0127 Bottom Pivot
      • Bottom leaf mortises into side jamb and rests on floor
      • Door leaf mortises into bottom of door
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "SEC" Fasteners
