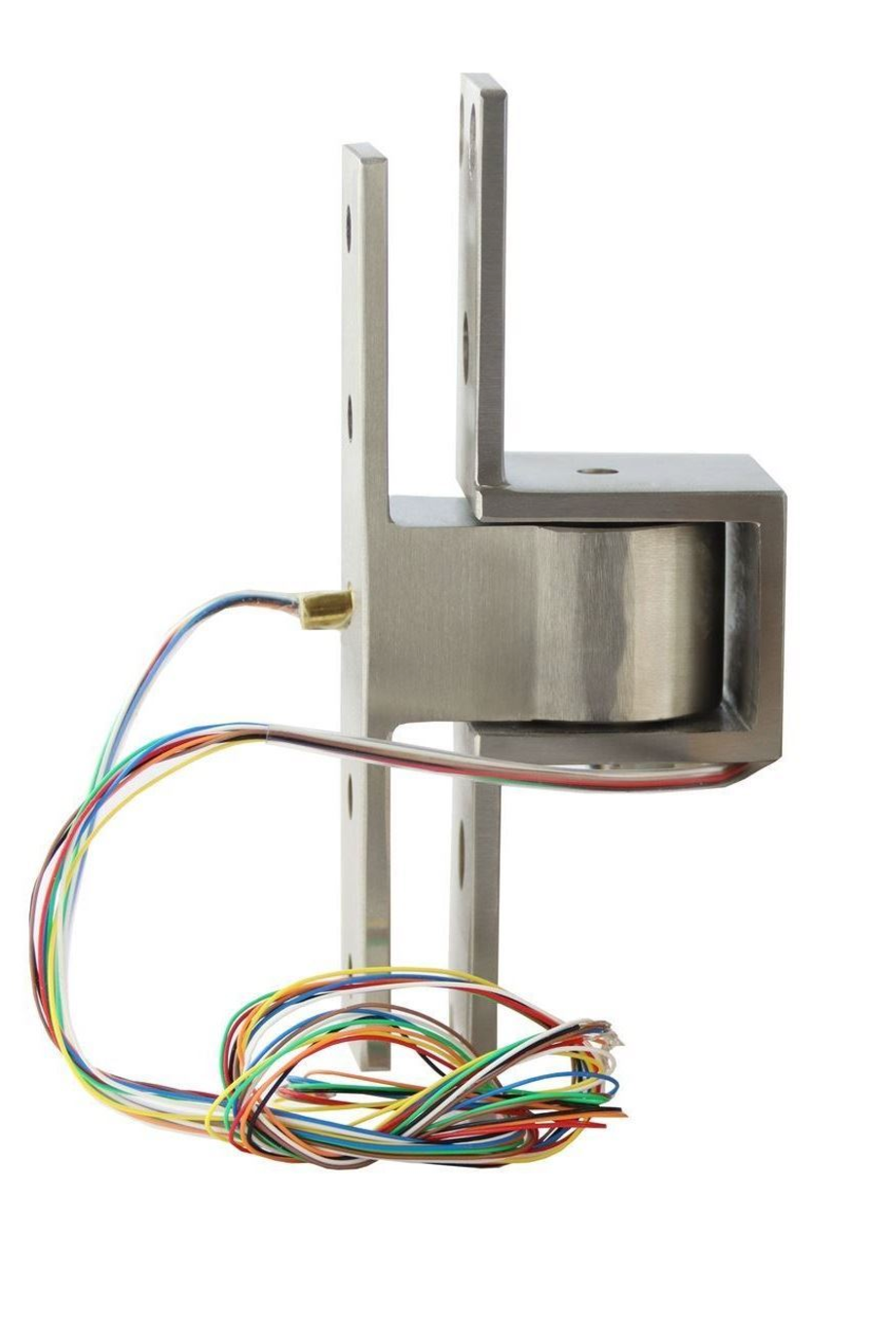

ABH E0519 Electrified Pocket Pivot

SKU: E0519-RH-US32D
$519.20
  • Features:
    • Pivot point is located inside the frame
    • Allows door to swing into a pocket in the frame at a right angle
    • When the door is in the pocket, it is completely clear of the door opening and flush with adjacent wall
    • Maximum door swing is 90°
    • Minimum three pocket pivots per door 60" - 90" tall
    • Add one pocket pivot for each additional 30" door height
    • Maximum door load per pivot - 90 pounds
    • Non-handed
    • UL listed for use on 3-hour fire rated hollow metal doors (20 minutes on wood core doors) - Standard
    • Heavy duty stainless steel needle bearings
    • Stainless steel base material
    • Average weight per unit = 3 lbs
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  • "SEC" Fasteners
