Home » ABH 0173 Pivot Set - 3/4" Offset
ABH

ABH 0173 Pivot Set - 3/4" Offset

SKU: 0173-RH-US32D
$145.20
  • Features:
    • 019 intermediate pivot recommended for all doors over 6’8” (order separately)
    • Handed - Specify LH or RH
    • Foor doors without bottom pivot or using floor closer
    • Maximum door load 150 pounds
    • Maxium door width - 36"
    • Heavy duty bearings
    • Stainless steel base material
    • Average weight per unit = 4 lbs

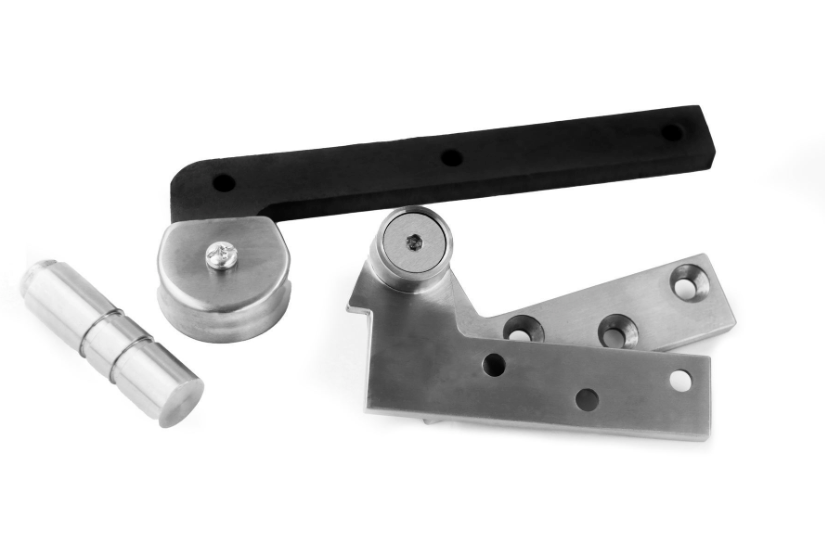

  • Includes:

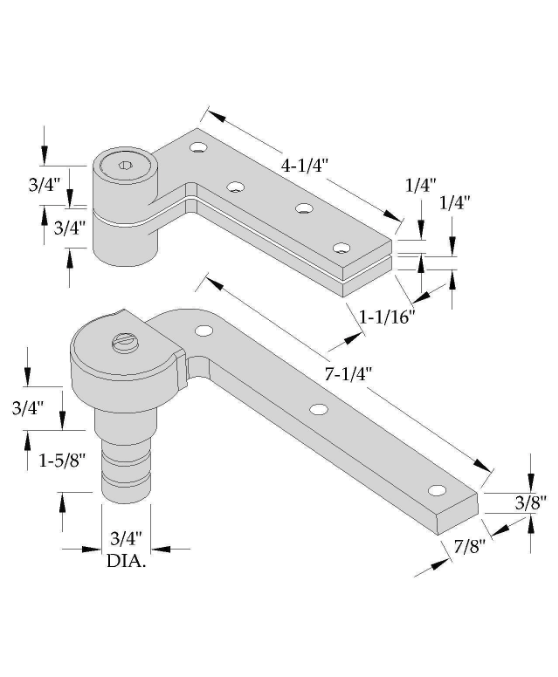

    • 0180 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door
    • 0173B Bottom Pivot
      • Bottom leaf mortises into concrete foor
      • Door leaf mortises into bottom of door
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "SEC" Fasteners
