Home » ABH E019-1.5 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 1-1/2" Offset
ABH

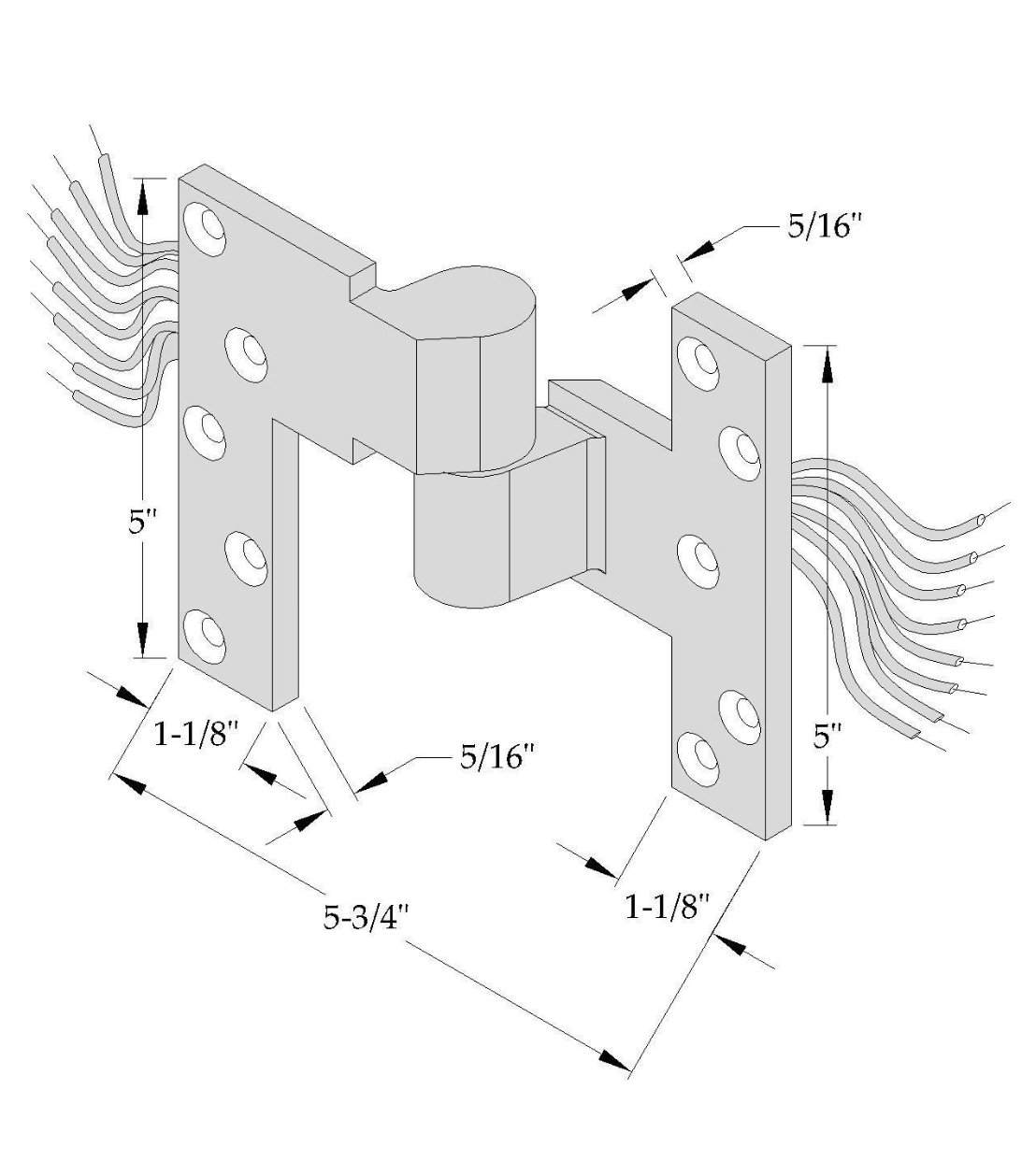

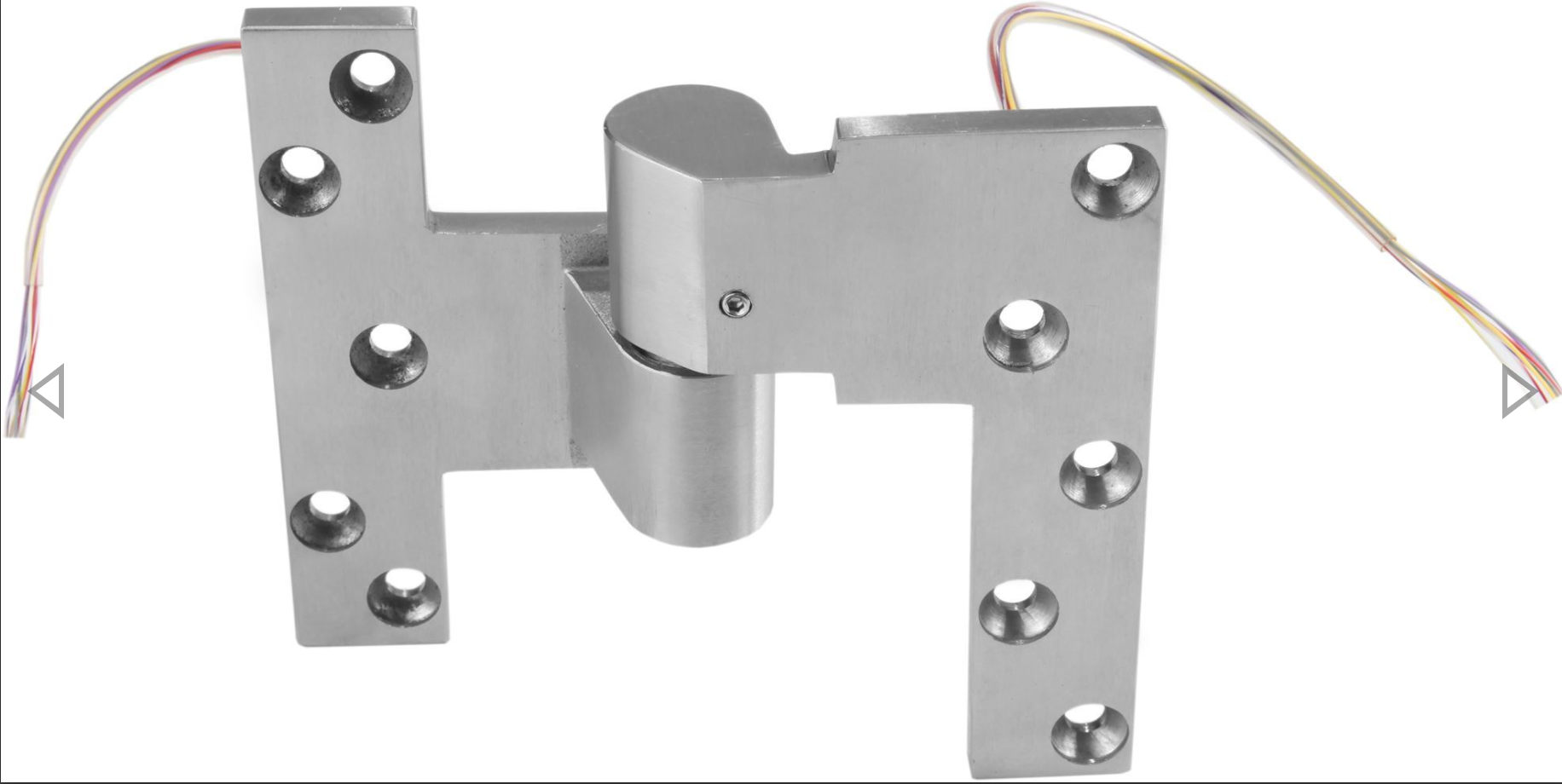

ABH E019-1.5 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 1-1/2" Offset

SKU: E019-1.5-RH-US32D
$400.00
  • Features:
    • Non-Handed
    • Pivot set is centered into the door thickness
    • Maximum door load 500 lbs.
    • Maximum door size - 44" x 102"
    • Average weight per unit = 4 lbs

  • Includes:
    • E0340 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door
      • Provides electrical power transfer from the frame to the door
      • (8) 30 AWG Wires
    • 0370 Bottom Pivot
      • Bottom leaf mounts on top of finished floor
      • Door leaf mortises into bottom of door
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  • "SEC" Fasteners
