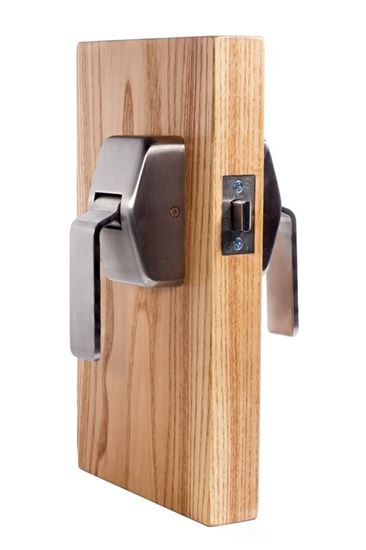

ABH 6000 Series Push/Pull Hospital Latch

SKU: 602T-US32D
$137.00
  • Features:

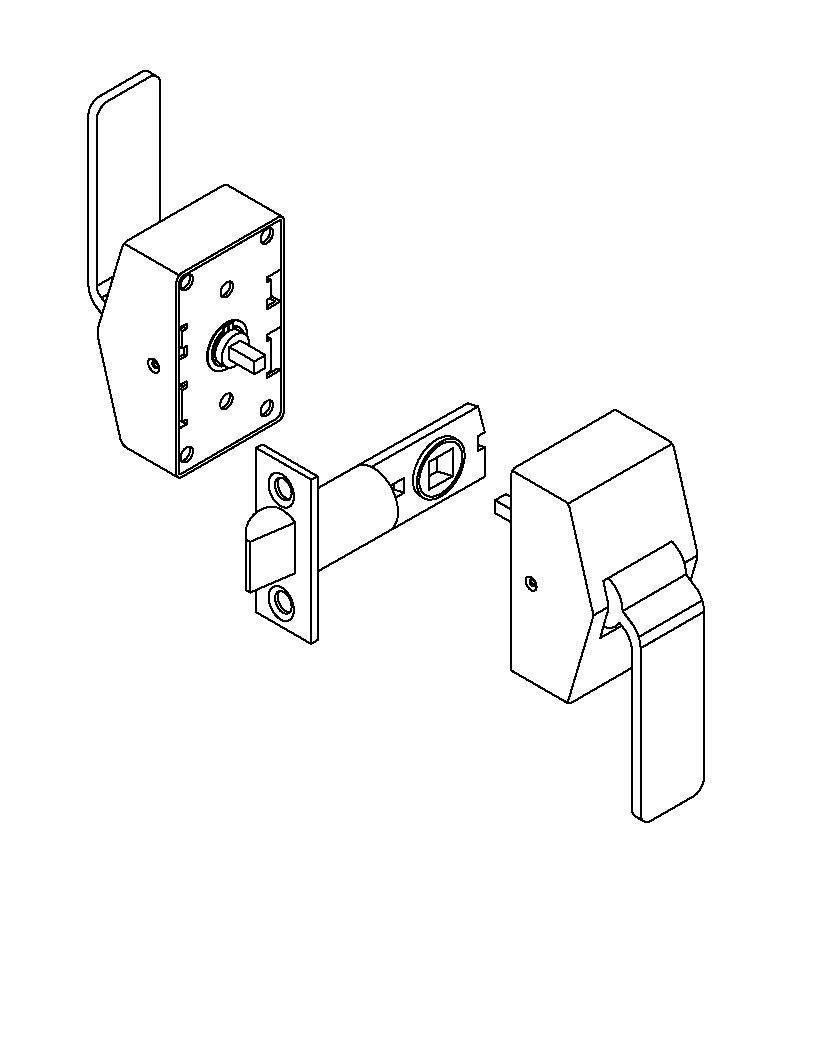

    • Cylindrical latch application - passage function
    • 1-3/4" standard door thickness (specify if different)
    • Meets ADA requirements
    • Trim is mounted using four thru-bolts for maximum stability
    • One continuous spring provides a smoother operation and an extended life for the unit
    • Non-handed for installation and stocking ease
    • Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
    • Handles can be mounted up or down by simply rotating trim 180°
    • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
    • 1/2" Latch Bolt Throw
    • Average weight per unit = 5 lbs
    • Patent# 6,196,599 & Additional Patent Pending
  • "SEC" Fasteners
  • "THICK" Special Door Thickness
  • "L" Lead-Lined
  • "AM" Anti-Microbial Coating
  • "H" Hip Paddle
  • "EX" Extended Handle
  • "X" Slip-On Handle Extension
  • "PL" Entrance Only
  • "PS" Exit Only
  • "FM" Flush Mount Asylum Trim (Cylindrical Latch only)
  • "J" Junior Cover
  • "RC" Round Cover
  • "P" Engraved Handles "PUSH" or "PULL"
