The ABH 6200-C Series Asylum Trim Cylindrical Latches are specifically engineered to help create safer environments in hospitals, behavioral healthcare facilities, detention centers, and other institutional applications where patient and occupant safety is a top priority. Designed with security, durability, and ligature-resistant performance in mind, the 6200-C Series combines dependable operation with a sleek angled trim profile that resembles a standard thumb turn for a clean, modern appearance.
Featuring a cylindrical latch passage function, the 6200-C Series allows smooth operation by simply rotating the trim clockwise or counterclockwise. Its non-handed design simplifies installation and inventory management, while four thru-bolt mounting points provide maximum stability and long-term durability in demanding environments.

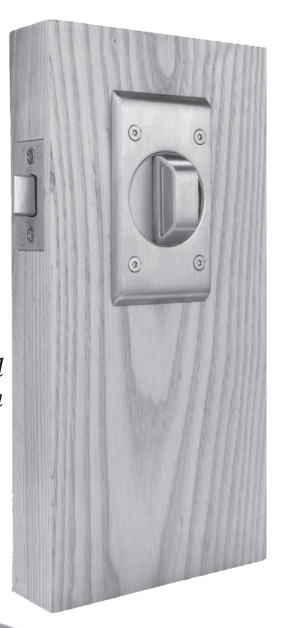

The “C” Angled Asylum Trim design offers both functionality and aesthetics, making it an excellent choice for facilities requiring anti-ligature hardware solutions without sacrificing appearance.
Standard Features
- Designed for behavioral healthcare, hospitals, and institutional facilities
- Cylindrical latch application with passage function
- Angled “C” trim design modeled after a thumb turn
- Ligature-resistant hardware solution for enhanced safety
- Operates by rotating clockwise or counterclockwise
- Fits standard 1-3/4" door thickness (specify if different)
- Includes “SEC” security fasteners standard
- Four thru-bolt mounting system for superior stability
- Non-handed design for easy installation and stocking
- UL Listed for 90 minutes or less
- Compatible with openings up to 4’0” x 8’0”
- 1/2" latch bolt throw
- Patent #6,196,599 with additional patents pending
Applications
Ideal for behavioral health facilities, psychiatric hospitals, correctional institutions, medical centers, and other high-security environments where anti-ligature and patient safety considerations are essential.
