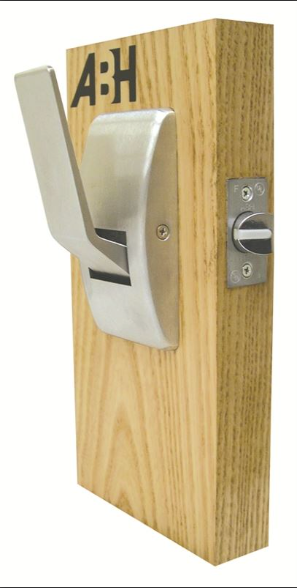

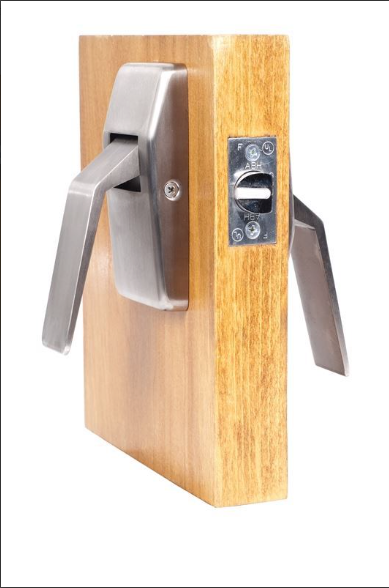

ABH 6800 Series Low Profile Hospital Push Pull Edge

SKU: 6811-2-3/4”T-US32D
$152.35
  • Features:
    • Cylindrical latch application - passage function
    • 1-3/4" standard door thickness (specify if different)
    • Meets ADA requirements
    • Trim is mounted using four thru-bolts for maximum stability

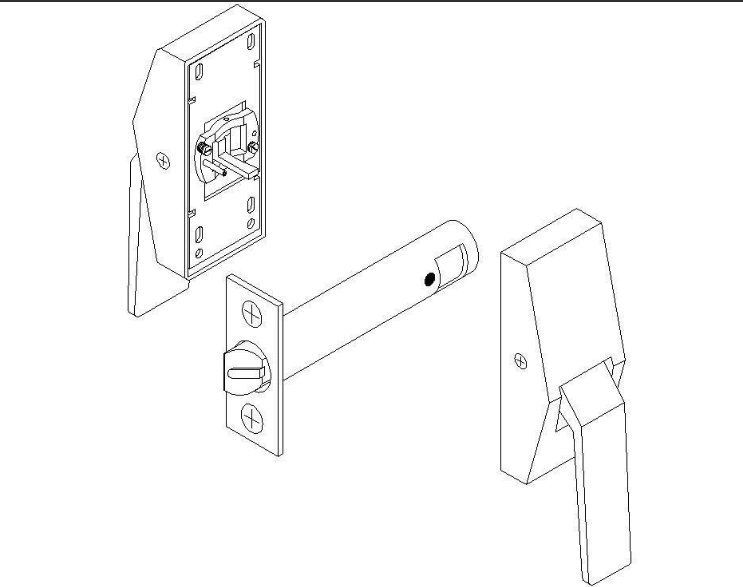

    • Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
    • Linear acting cam which provides for a smoother operating unit
    • One continuous spring provides a smoother operation and an extended life for the unit
    • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
    • 1/2" Latch Bolt Throw
    • Average weight per unit = 4.75 lbs
    • Patent# 7,258,374 & Addition Patents Pending
  • "SEC" Fasteners
  • "THICK" Special Door Thickness
  • "L" Lead-Lined
  • "AM" Anti-Microbial Coating
  • "CN" Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
  • "RX" Request to Exit

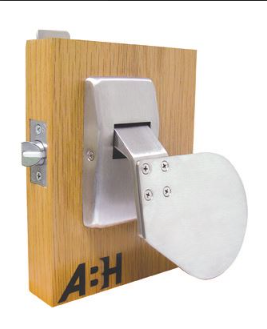

  • "H" Hip Paddle
  • "EX" Extended Handle
  • "X" Slip-On Handle Extension
  • "PL" Entrance Only
  • "PS" Exit Only
  • "M" Security Plate for Exit Only to Prevent Latch Tampering
  • "FM" Flush Mount Asylum Trim (Cylindrical Latch only)
  • "J" Junior Cover
  • "RC" Round Cover

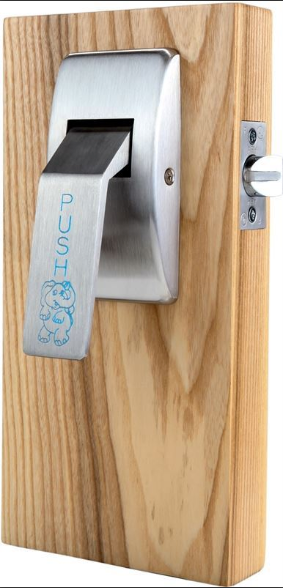

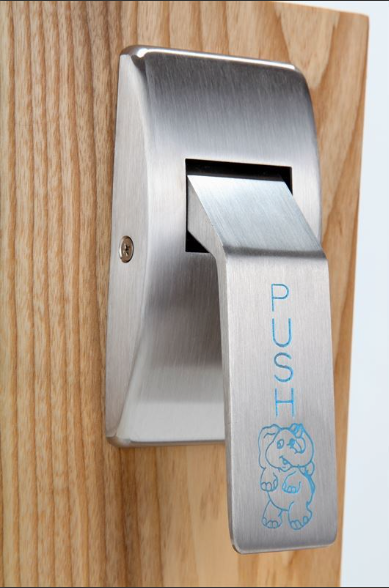

  • "P" Engraved Handles "PUSH" or "PULL"
