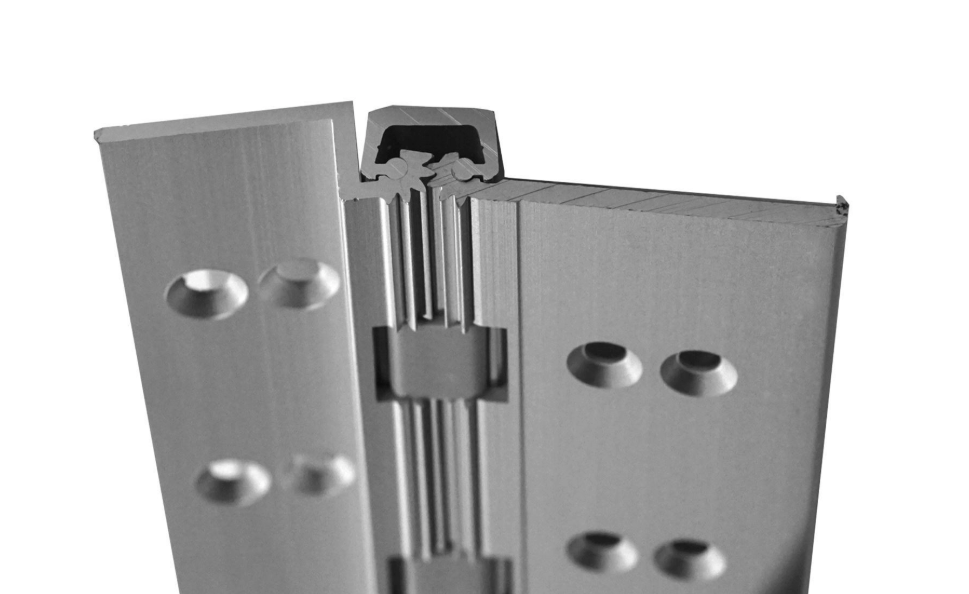

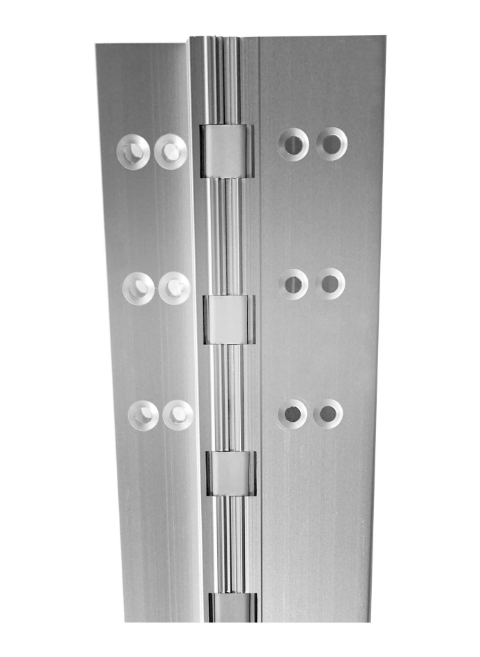

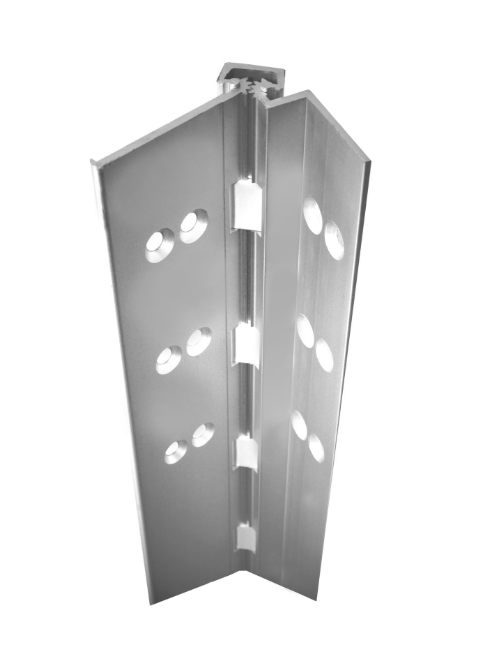

ABH A135HD Aluminum Continuous Gear Hinges Full Mortise

SKU: A135HD-C079
$121.25

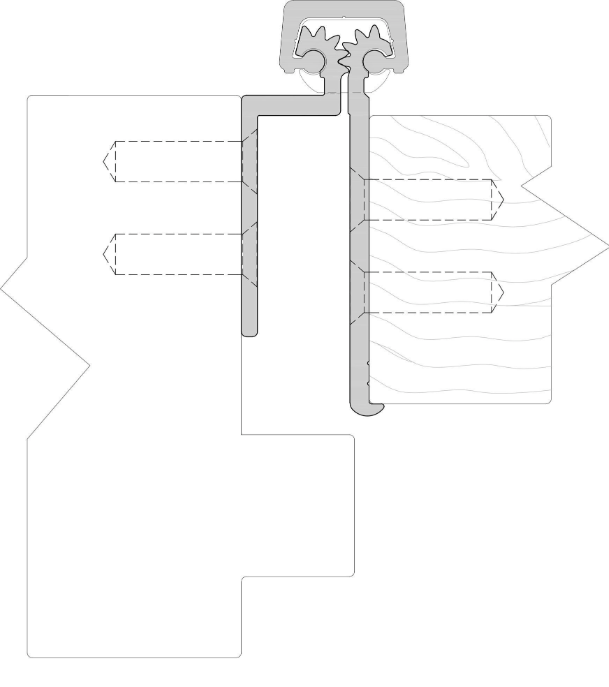

  • Full Concealed, Heavy Duty
  • 1/8" Door Inset
  • Safety hinge application when used without a frame stop
  • Door Lip Protector
  • Used Primarily in schools, nursing homes and day care faciities to avoid fingers and/or other objects being closed in the door

  • Fasteners:
    12-24 X 3/4" undercut self drilling, thread forming tek machine screws

  • Standard Lengths:
    79", 83", 85", 95" and 120" + Custom Sizes Available

  • Fire Rating
    • Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
    • Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)

  • Reinforcement:
    • Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
    • Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.
  • "HT" Hospital Tip
  • "WEDGE-FM" Adjustable Safety Wedge for Full Mortise Models
  • "LR-BEAR" Ligature-Resistant Bearings
  • "DD" Dutch Door Prep
  • "SEC" Fasteners
  • "CUT" Cut to Custom Length
  • "TR" Tamper-Resistant (Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material)
  • "SC" School Cap
  • "SPLICE" Spliced Hinge
  • "SL" - Sheared Leaf
  • "THICK" Special Door Thickness
  • "CUSTOM HOLE" Custom hole locations
  • "CUSTOM FINISH"
