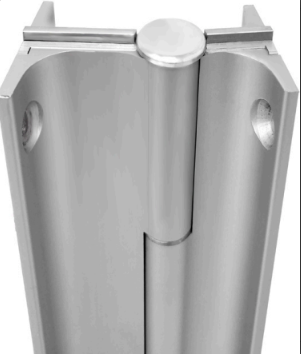

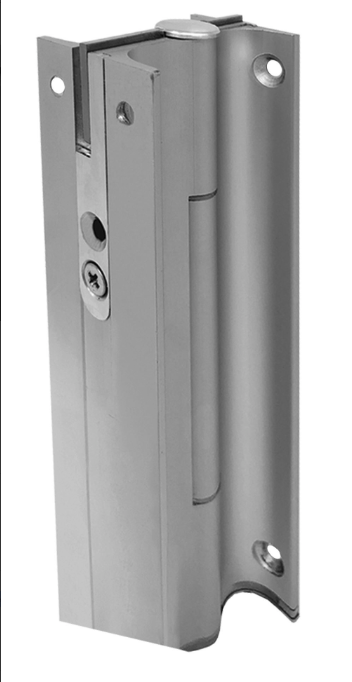

ABH A507 Double Swing Ligature Resistant Barricade Hinge

SKU: A507-C079
$560.70
  • Double Swing Hinge for Behavioral Health Applications - Approved BY NY Office of Mental Health
  • Spring Loaded Top Gap Close Mechanism
  • 48” door width maximum
  • 600 lbs. door weight maximum
  • Pin Torx Security Screws Standard
  • Custom Anodize and Powder coat Options

  • Standard Lengths:
    79", 83", 85", 95" and 120" + Custom Sizes Available

  • Reinforcement:
    • Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
    • Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.
  • ALARM TOP
  • "EZ12" (12) 22 AWG Wires with Molex® Microfit 3.0 Connectors for Concealed Electrification
  • "TW12" (12) 22 AWG Wires for Concealed Electrification
  • "CUT" Cut to Custom Length
  • "CUSTOM HOLE" Custom hole locations
  • "CUSTOM FINISH"
