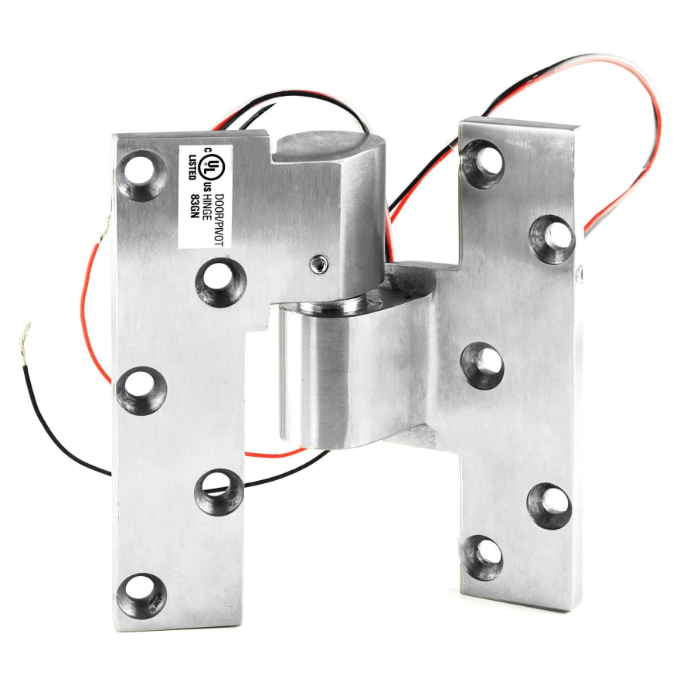

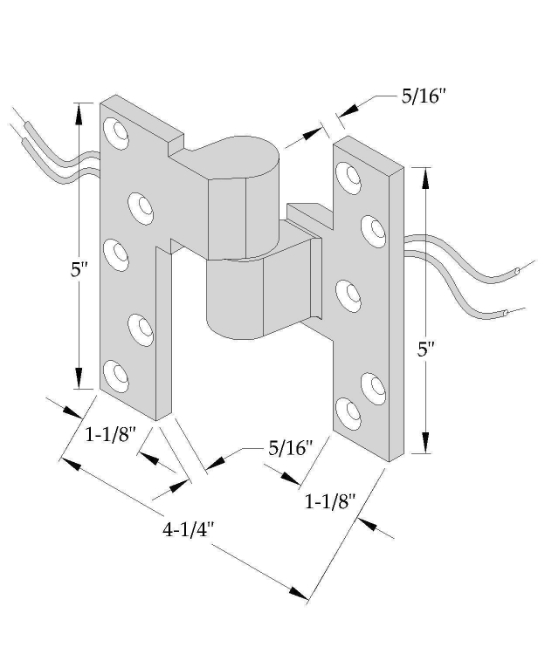

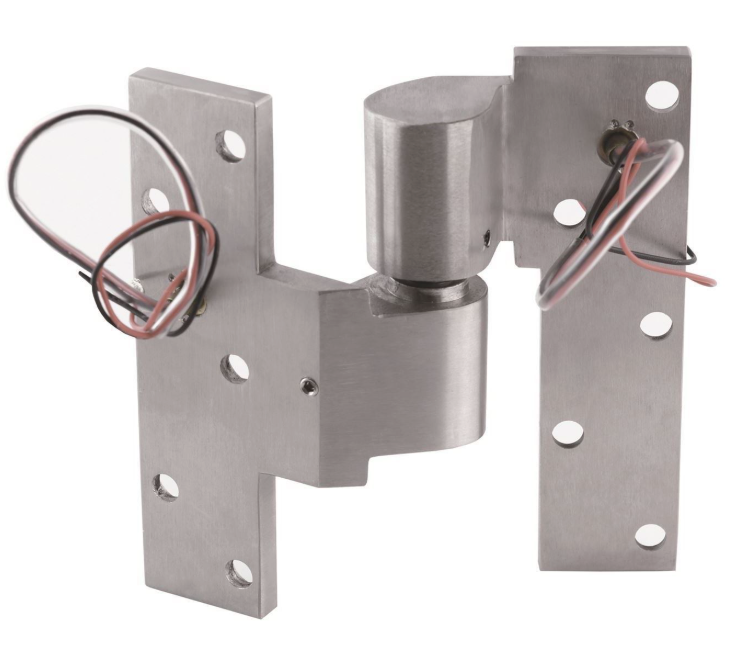

ABH E019U Intermediate Pivot (2) 18 Ga. Wires - Electrified - 3/4" Offset

SKU: E019U-RH-US32D
$476.85
  • Features:
    • Provides electrical power transfer from the frame to the door
      • Large inrush current
      • (2) 18 AWG Wires
      • Each wire is rated at 2 amps continuously
    • Mortises into side jamb and hinge edge of door
    • Handed - Specify LH or RH
    • For use with with 3/4" offset pivot sets
    • Helps maintain door alignment
    • UL Listed for use on 3-hour fire rated doors - Standard
    • Heavy duty stainless steel needle bearings
    • Stainless steel base material
    • Average weight per unit = 3 lbs
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  • "SEC" Fasteners
