Home » ABH 0923 Reinforcing Pivot
ABH

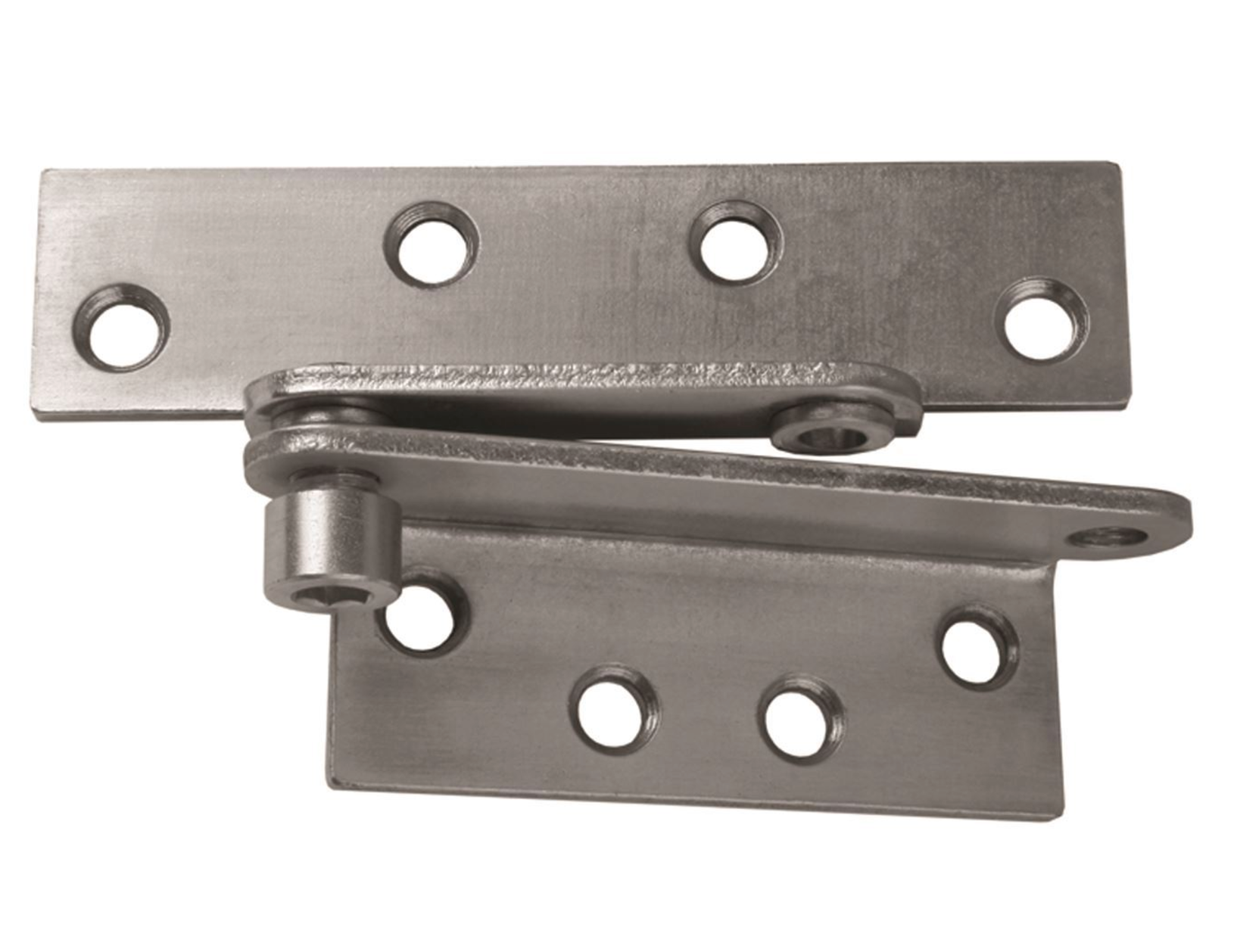

ABH 0923 Reinforcing Pivot

SKU: 0923-RH-US32D
$50.05
  • Features:
    • Helps take load off failing top hinge and eliminate door sag
    • Surface mounts to the face of the frame header and face of the door
    • Matches pivot point of a standard 4-1/2" butt hinge
    • Non-handed
    • Maximum door load - 300 pounds
    • Cold-rolled steel, zinc plated - US2G finish
    • For 1/8" inset door with 3/4" offset
    • Average weight per unit = 2 lbs
  • "SEC" Fasteners
