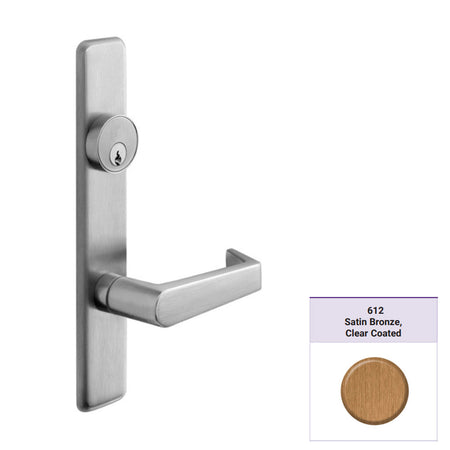

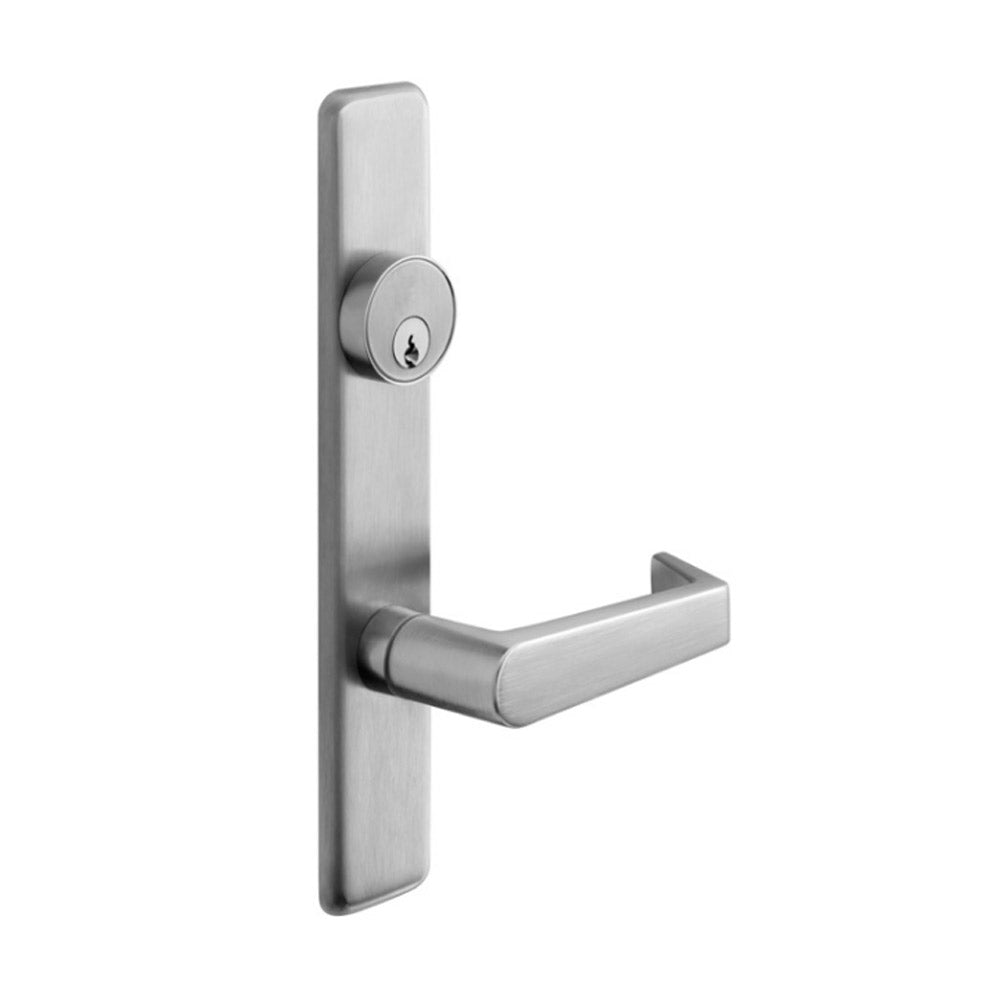

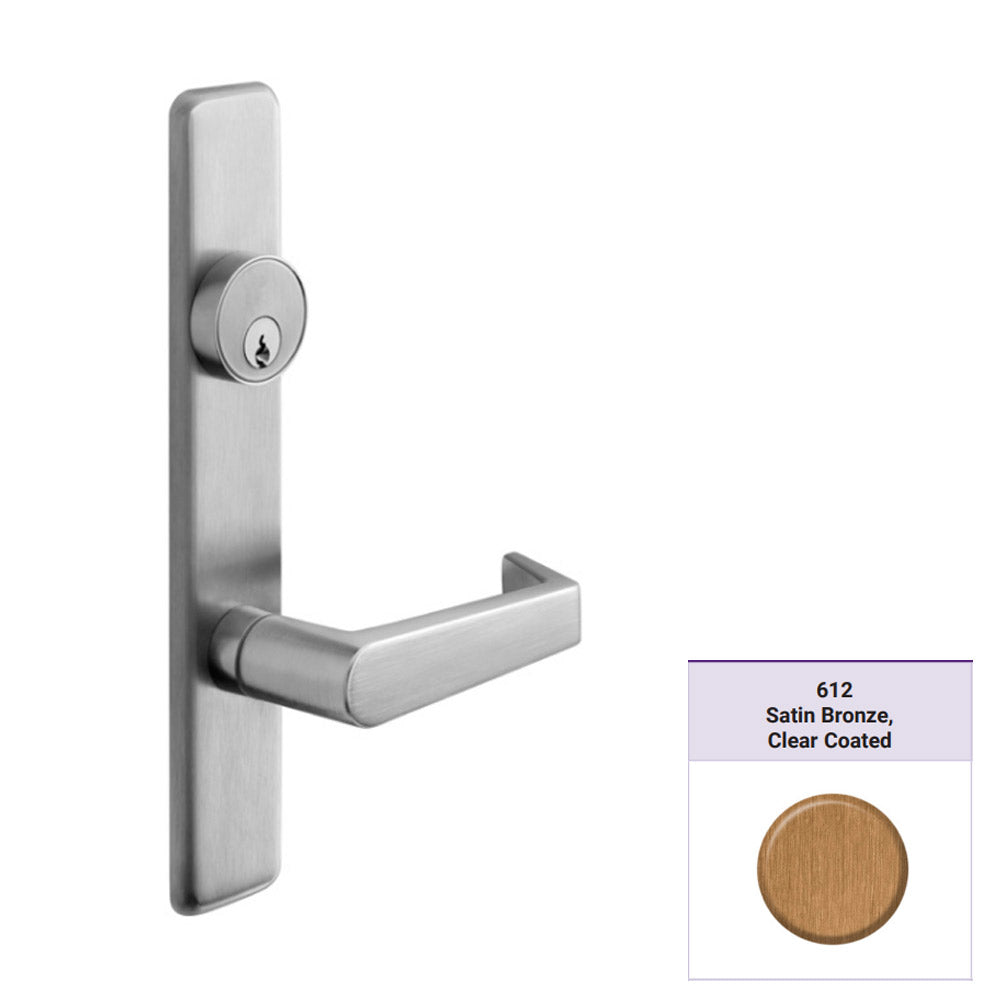

Accentra 506F Exit Device Trim - Classroom/Storeroom Cylinder Controls Lever Trim

SKU: AU506F-606-LHR
$485.65

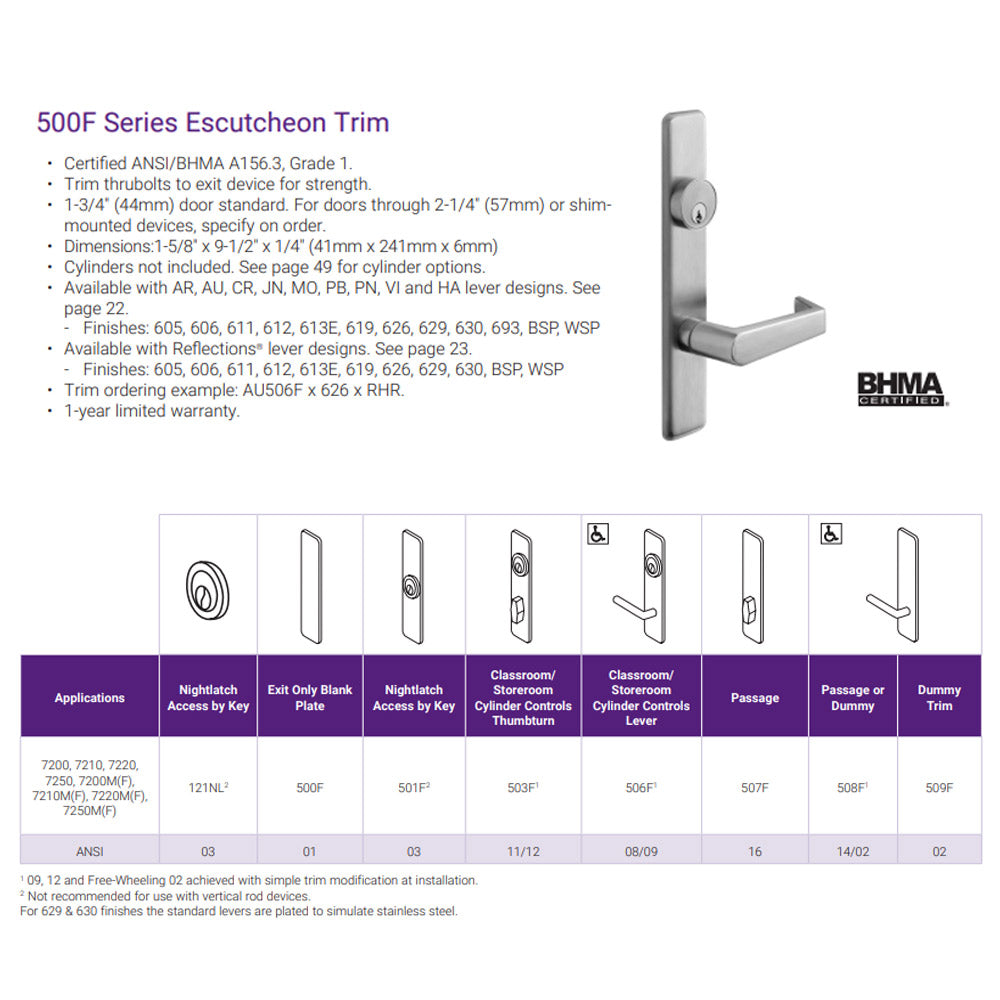

500F Series Escutcheon Trim – Rugged Performance with Architectural Style

Upgrade your exit device system with the 500F Series Escutcheon Trim—engineered for ANSI/BHMA A156.3, Grade 1 durability and refined with a selection of premium lever styles and finishes. Designed for strength, reliability, and compatibility, this trim series offers versatile functionality for commercial spaces demanding both form and function.

Key Features:

  • Certified ANSI/BHMA A156.3, Grade 1 for top-tier performance.

  • Durable through-bolted design ensures secure attachment to exit device.

  • Standard for 1-3/4" (44mm) thick doors; for doors up to 2-1/4" (57mm) or shim-mounted devices, specify when ordering.

  • Compact profile: 1-5/8" x 9-1/2" x 1/4" (41mm x 241mm x 6mm).

  • Cylinders sold separately (refer to cylinder options on page 49).

  • Available in a range of lever designs: AR, AU, CR, JN, MO, PB, PN, VI, and HA.

  • Reflections® decorative lever designs also available.

  • Broad selection of architectural finishes:

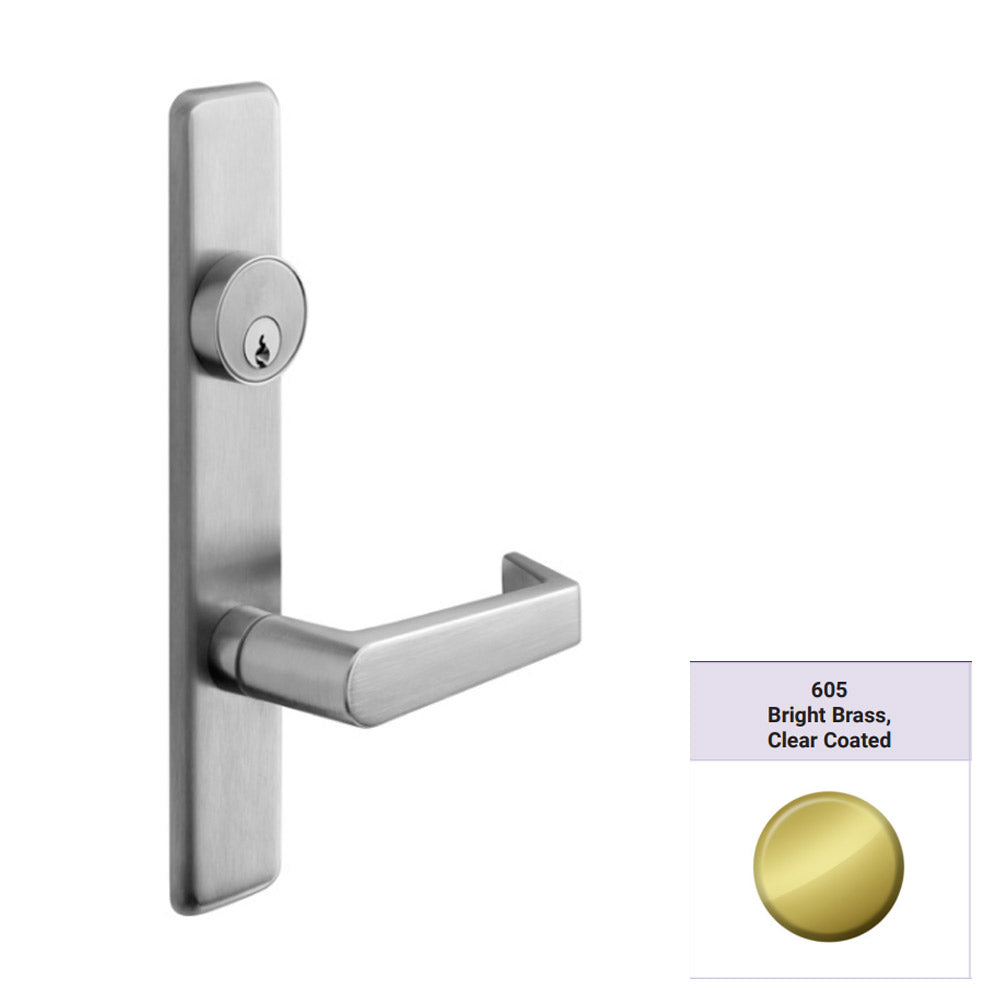

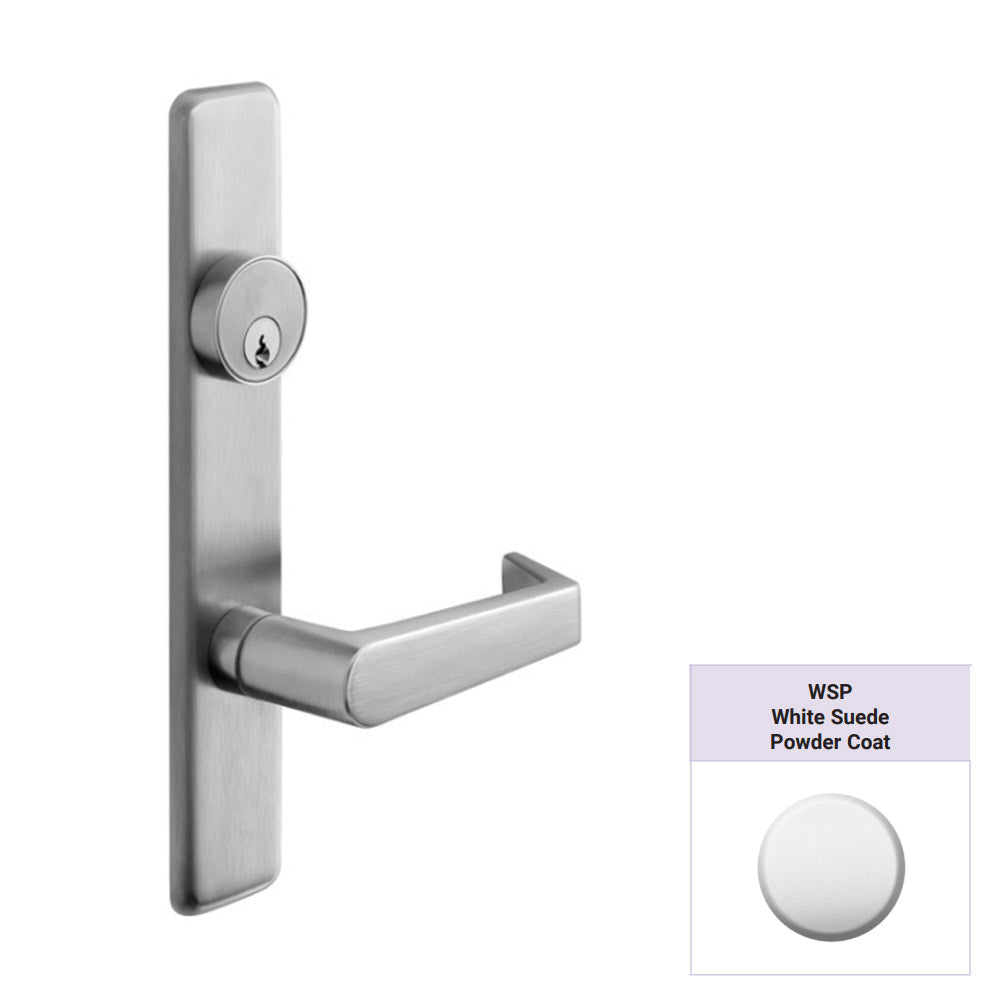

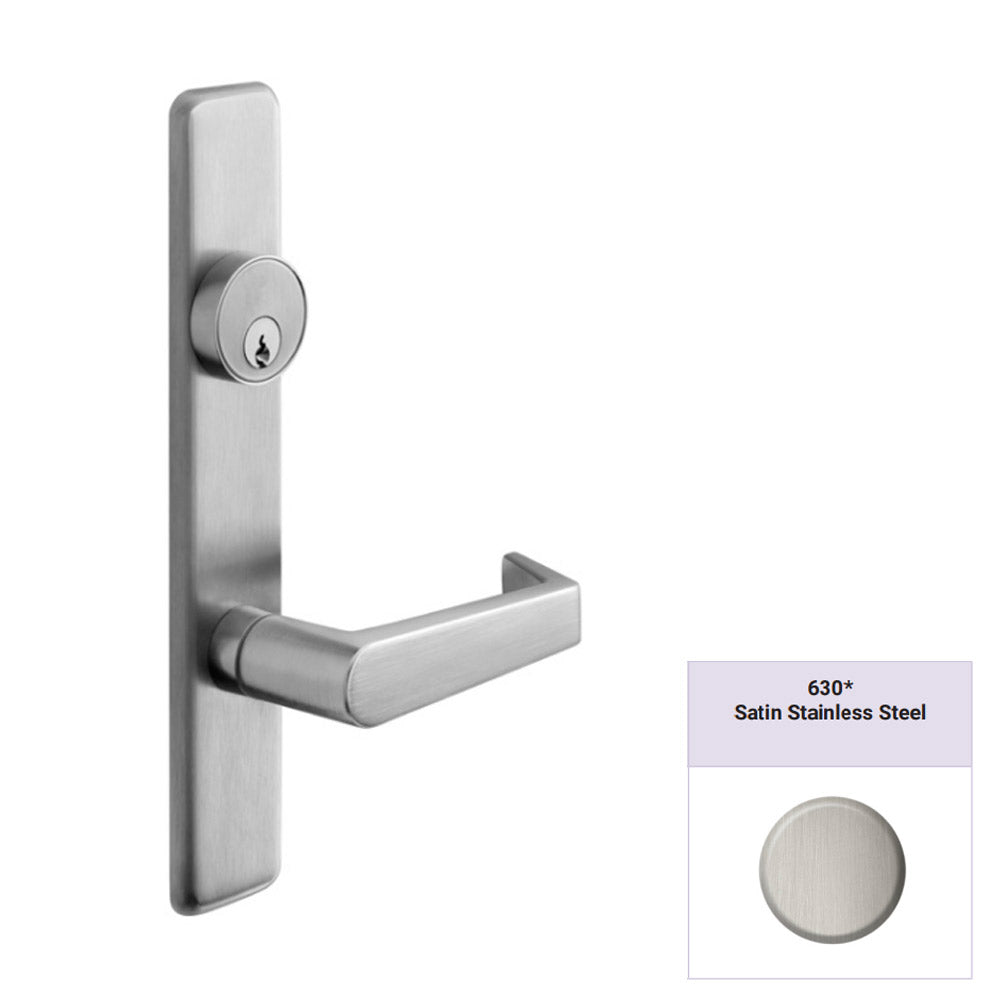

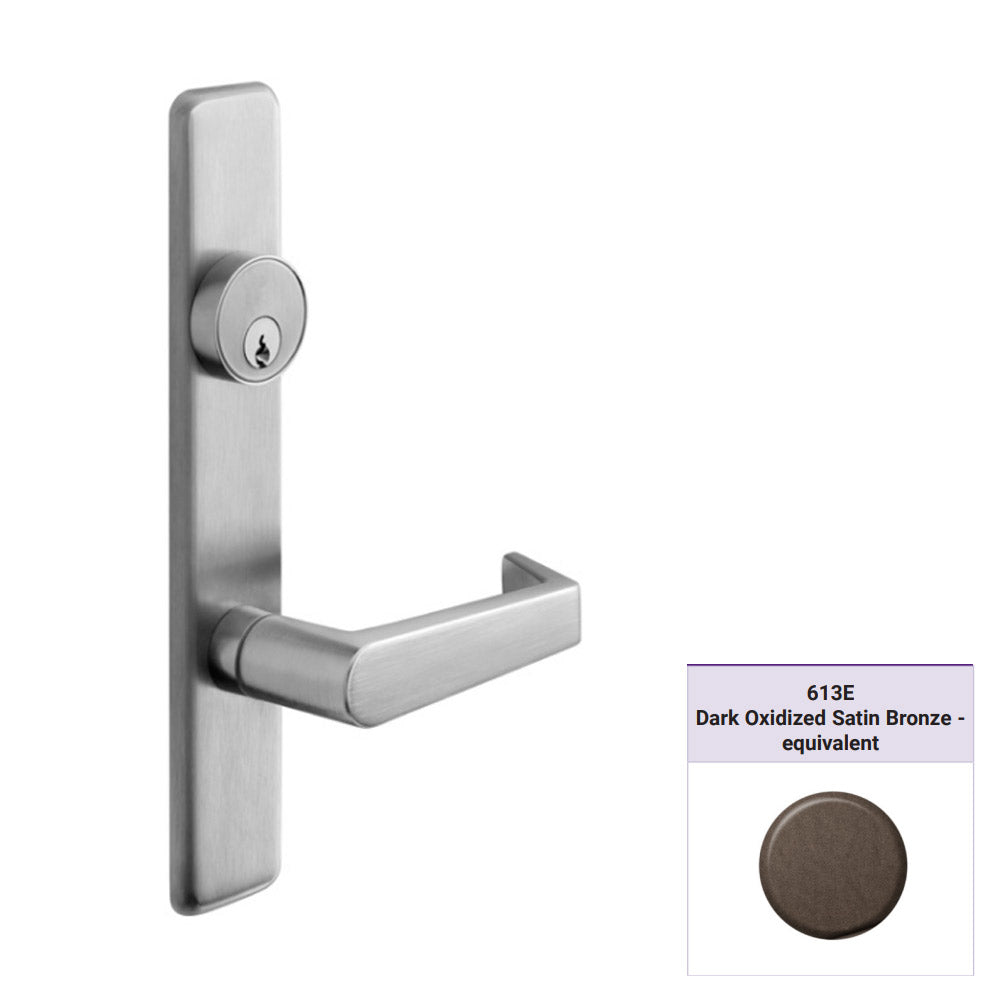

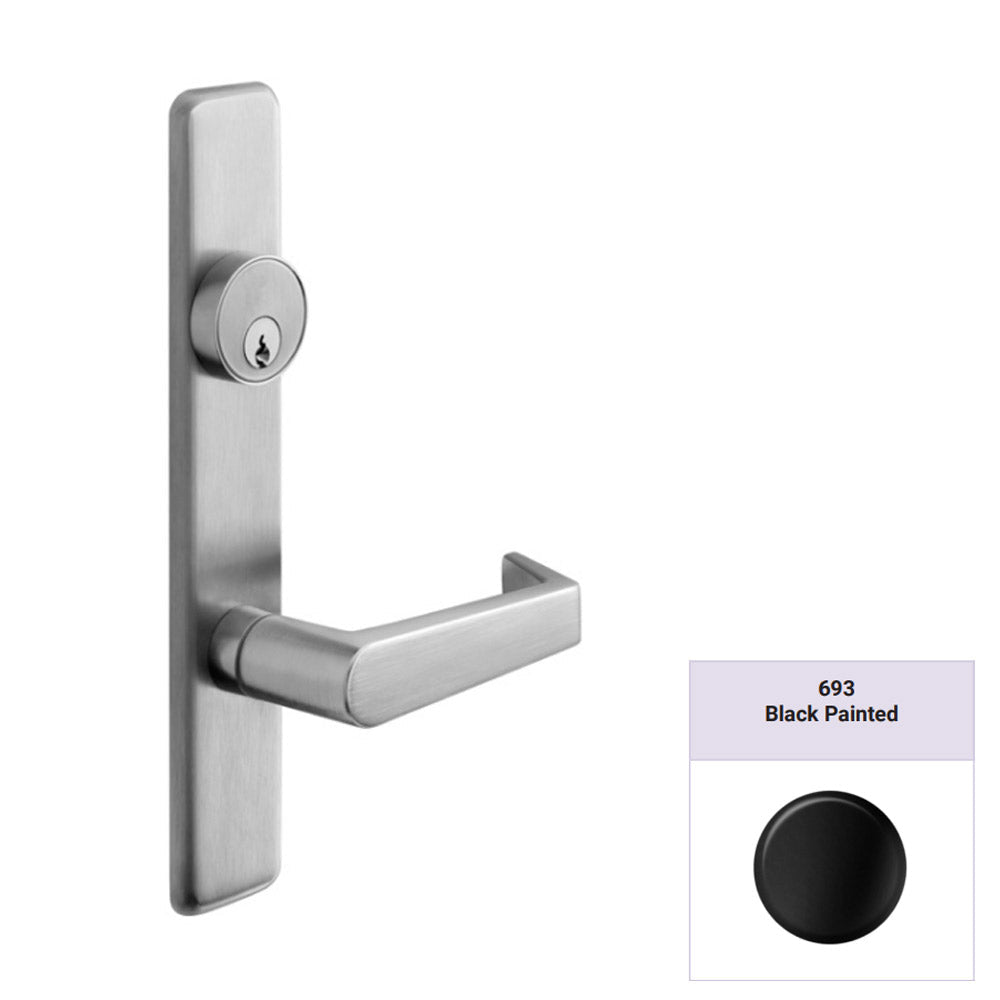

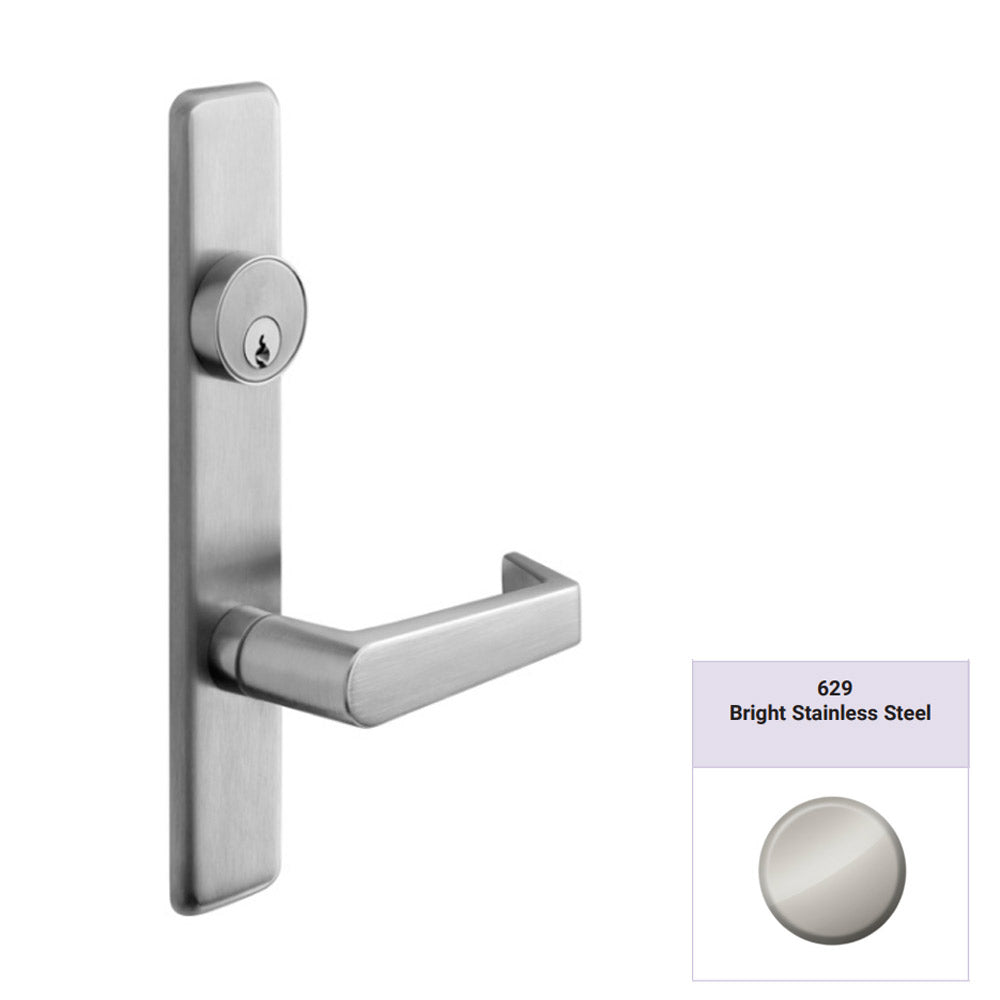

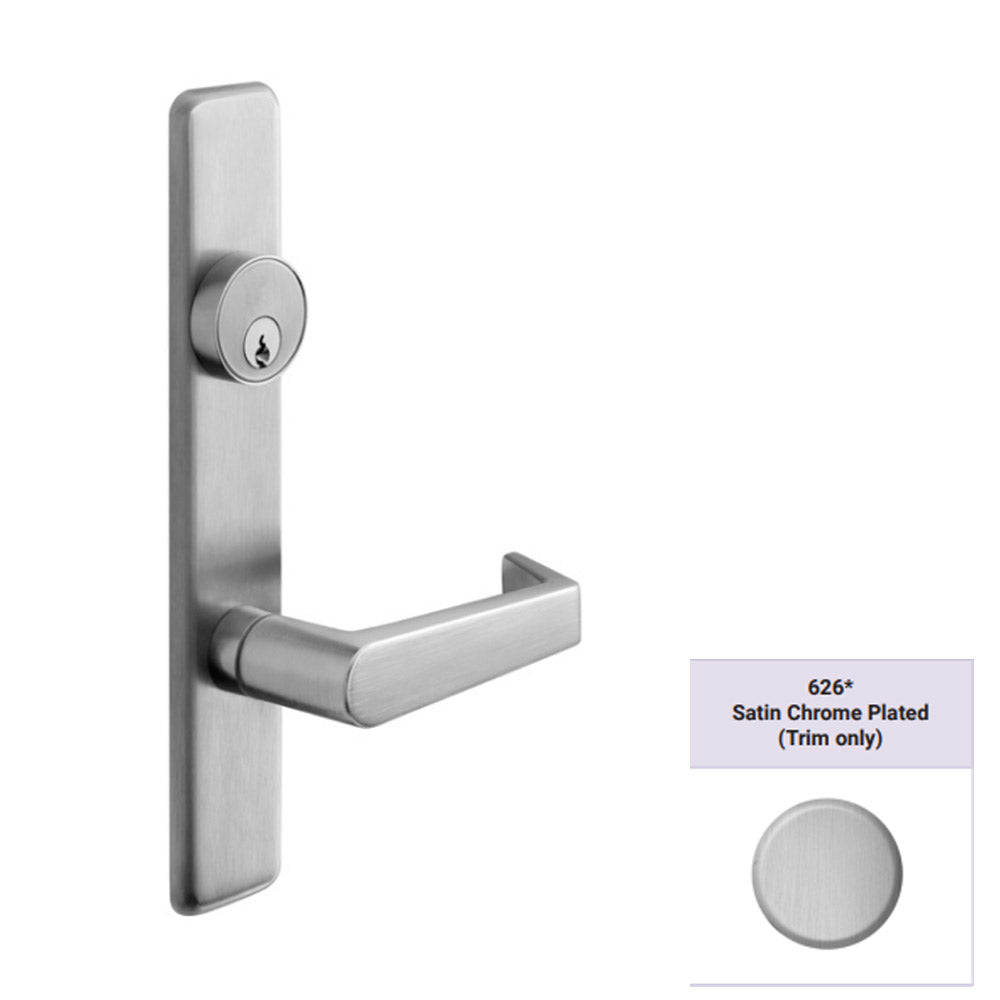

    • Standard: 605, 606, 611, 612, 613E, 619, 626, 629, 630, 693, BSP, WSP

    • Reflections®: 605, 606, 611, 612, 613E, 619, 626, 629, 630, BSP, WSP

  • 1-Year limited warranty for peace of mind.

Function Options:

  • 500F – Exit Only, Blank Plate

  • 501F – Nightlatch, Key Access

  • 503F – Classroom/Storeroom with Cylinder Thumbturn

  • 506F – Classroom/Storeroom with Cylinder Lever

  • 507F – Passage Function

  • 508F – Passage or Dummy Function

  • 509F – Dummy Trim

Ordering Example: AU506F x 626 x RHR

Whether you're outfitting new doors or retrofitting existing exits, the 500F Series provides dependable performance, flexibility, and a clean architectural aesthetic to match your commercial building design.

Application:

Compatible with exit devices including:

  • 7200, 7210, 7220, 7250

  • 7200M(F), 7210M(F), 7220M(F), 7250M(F)w

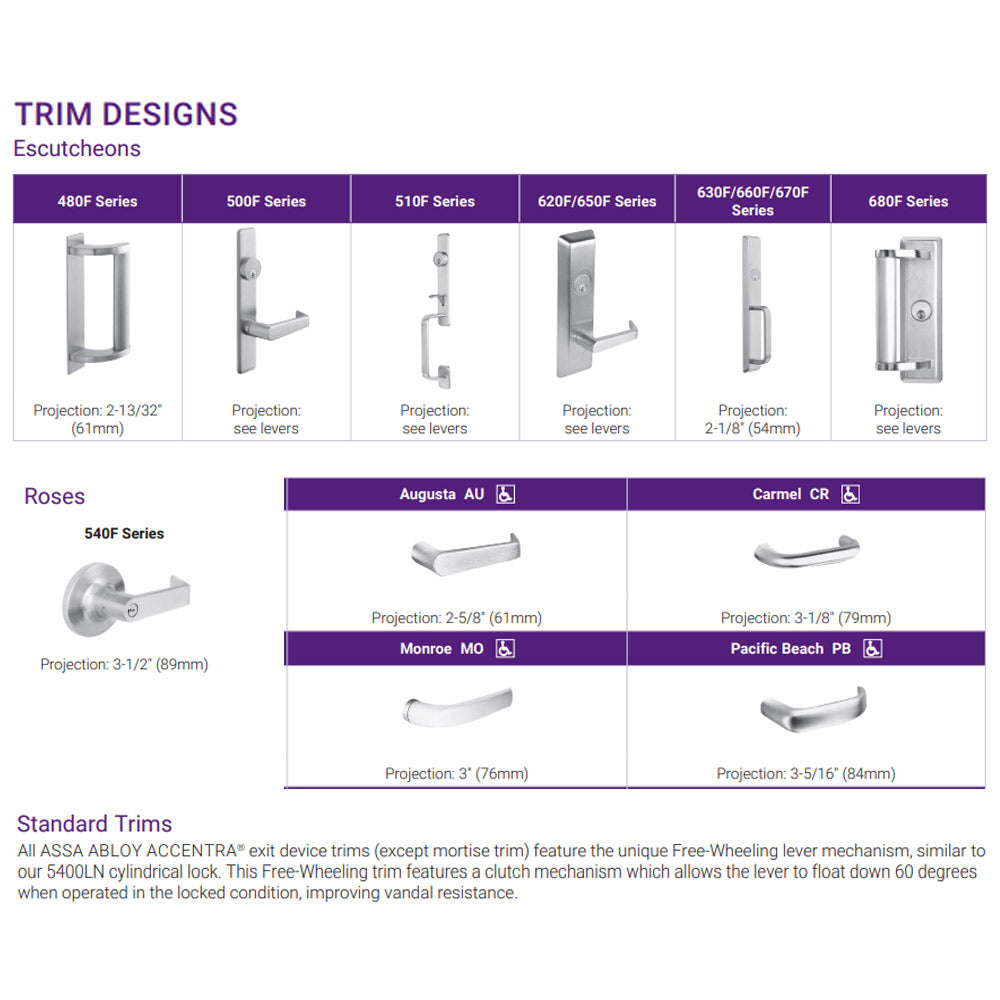

Standard Trims:

  • AU – Augusta, Projection: 2-5/8" (61mm)

  • MO – Monroe, Projection: 3" (76mm)

  • CR – Carmel, Projection: 3-1/8" (79mm)

  • PB – Pacific Beach, Projection: 3-5/16" (84mm)
