Accentra 517F Exit Device Trim - Classroom / Storeroom Nightlatch Pull Thumbturn - Passage Trim

SKU: 517F-630
$451.55

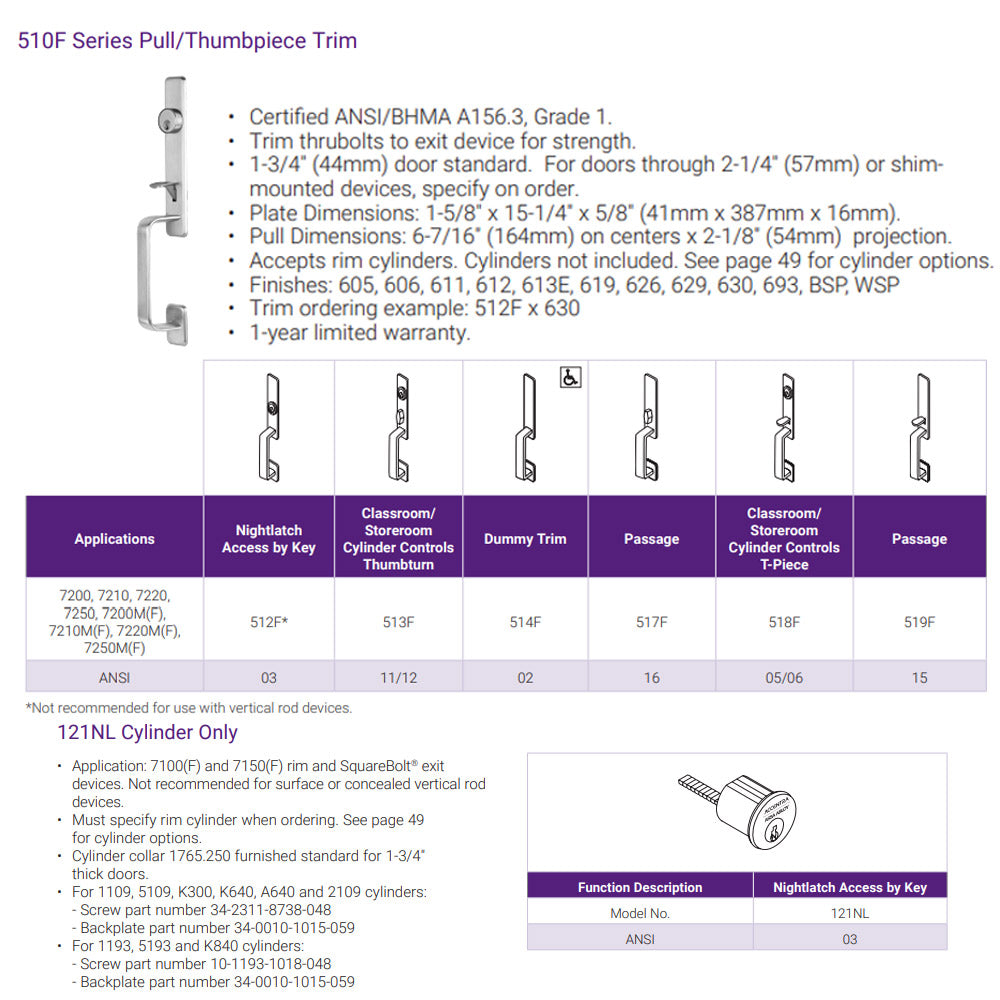

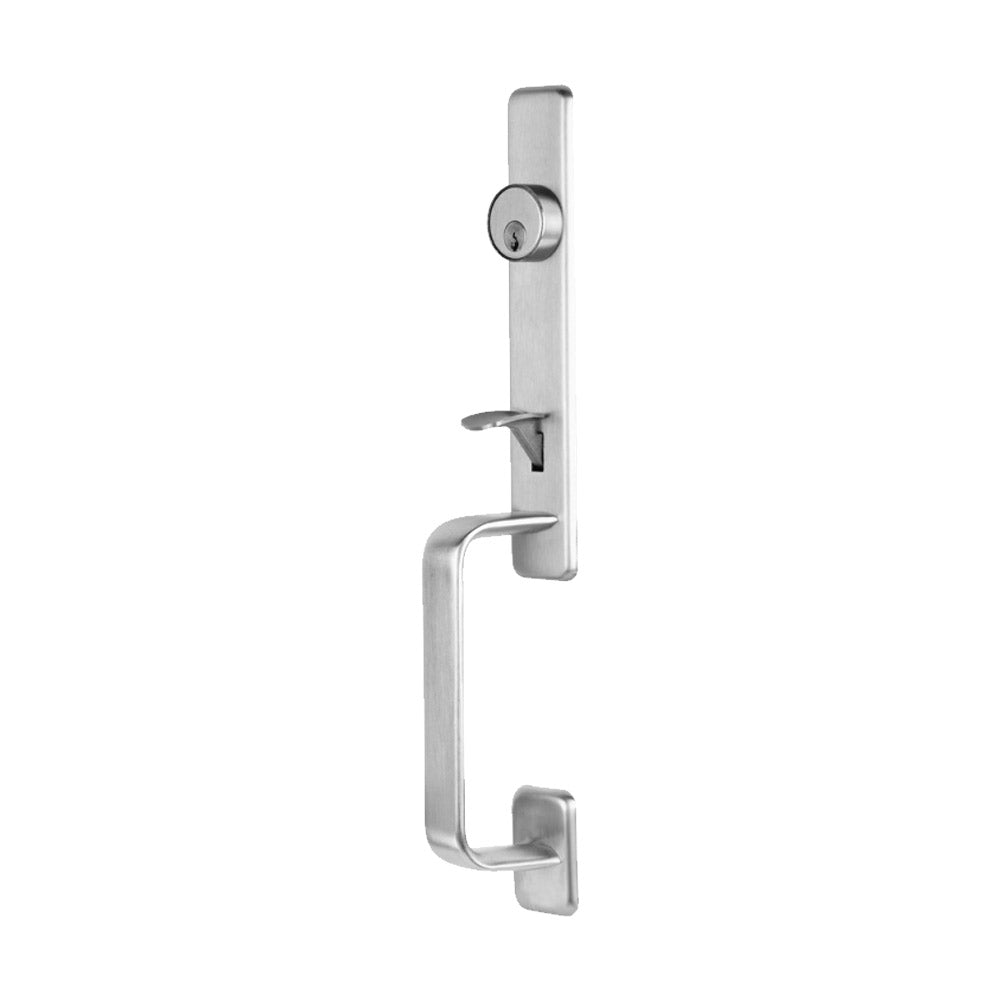

510F Series Pull/Thumbpiece Trim – Strength, Style, and Versatility for Commercial Doors

Upgrade your commercial exit devices with the 510F Series Pull/Thumbpiece Trim, built for high performance, durability, and architectural elegance. Designed for compatibility with the 7200 Series Exit Devices, this trim delivers ANSI/BHMA A156.3 Grade 1 certified strength, making it ideal for demanding environments such as schools, healthcare facilities, offices, and more.

Key Features:

  • Certified Strength: ANSI/BHMA A156.3, Grade 1 certified for maximum durability and performance.

  • Reinforced Installation: Trim thru-bolted to exit device for added security and structural integrity.

  • Standard Door Compatibility: Fits 1-3/4" (44mm) thick doors. For doors up to 2-1/4" (57mm) or shim-mounted devices, please specify at order.

  • Sleek Plate Design: Plate dimensions – 1-5/8" x 15-1/4" x 5/8" (41mm x 387mm x 16mm).

  • Durable Pull Handle: 6-7/16" (164mm) on centers with a 2-1/8" (54mm) projection.

  • Cylinder-Ready: Accepts standard rim cylinders (sold separately). See page 49 for available cylinder options.

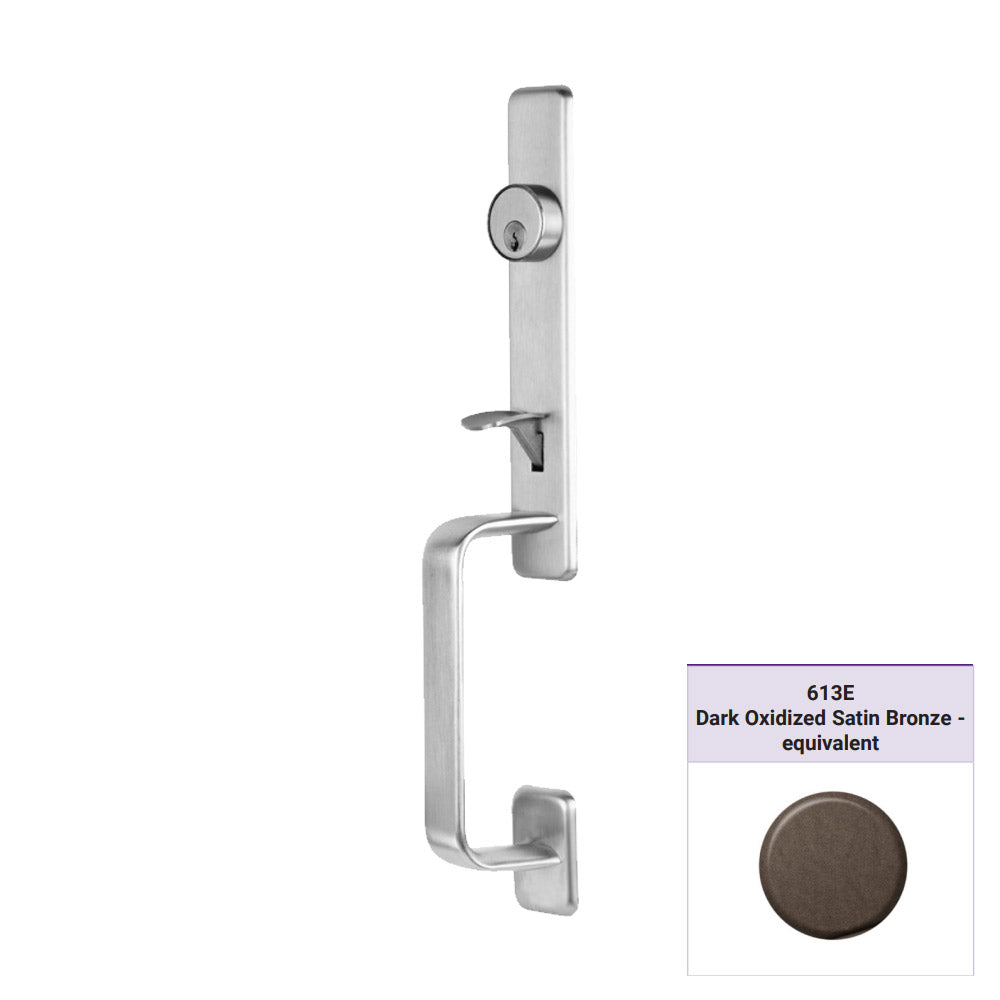

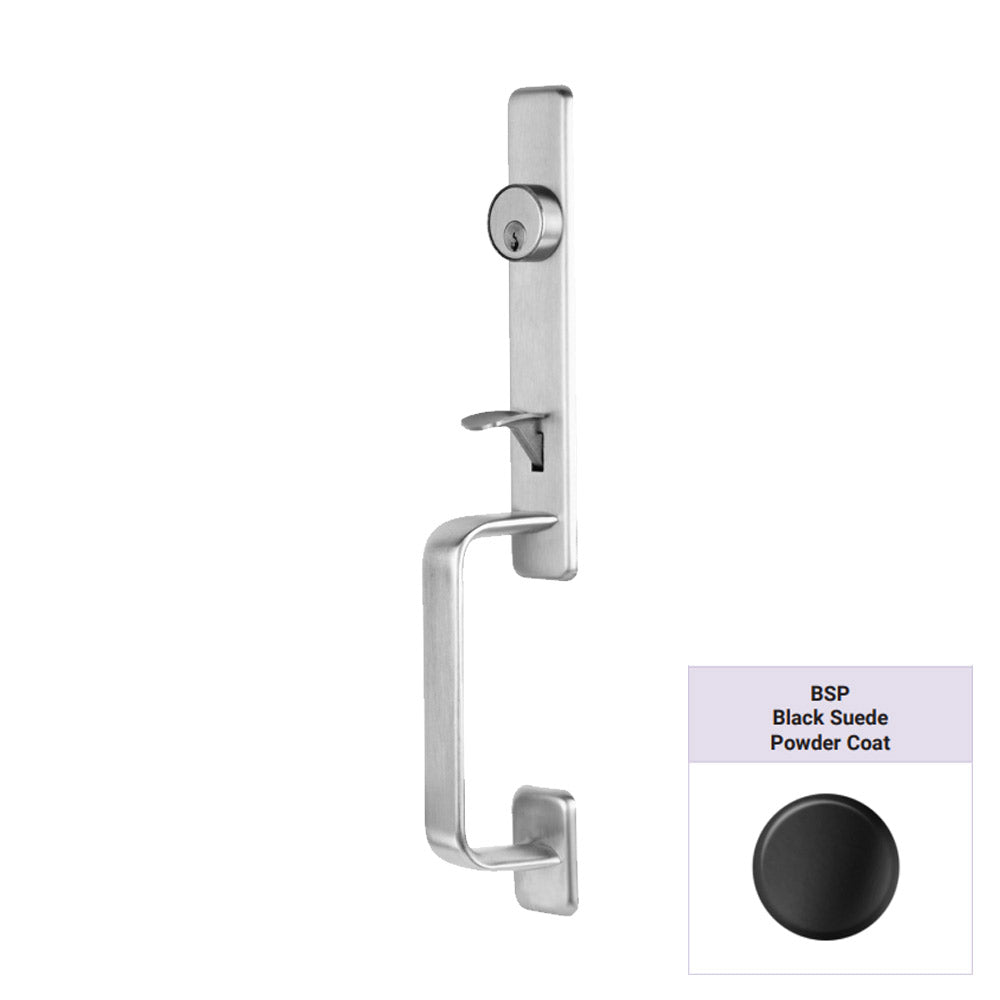

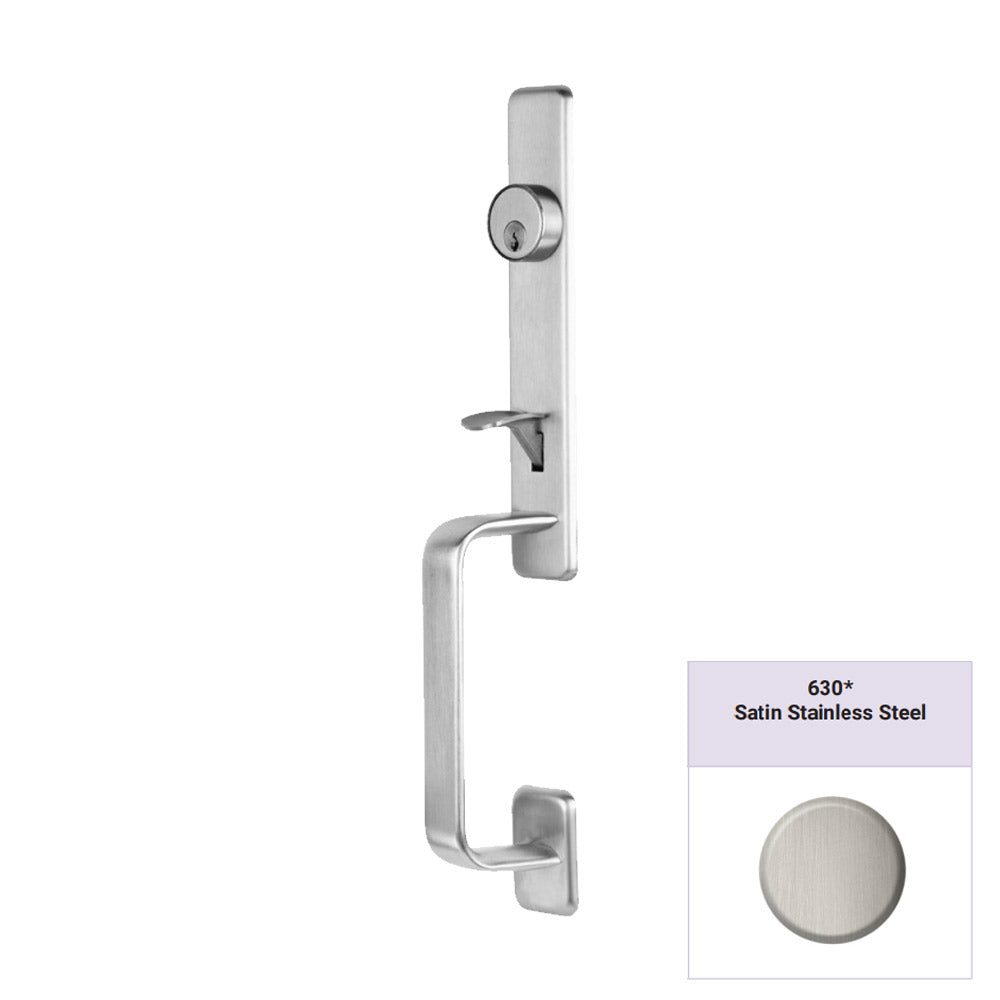

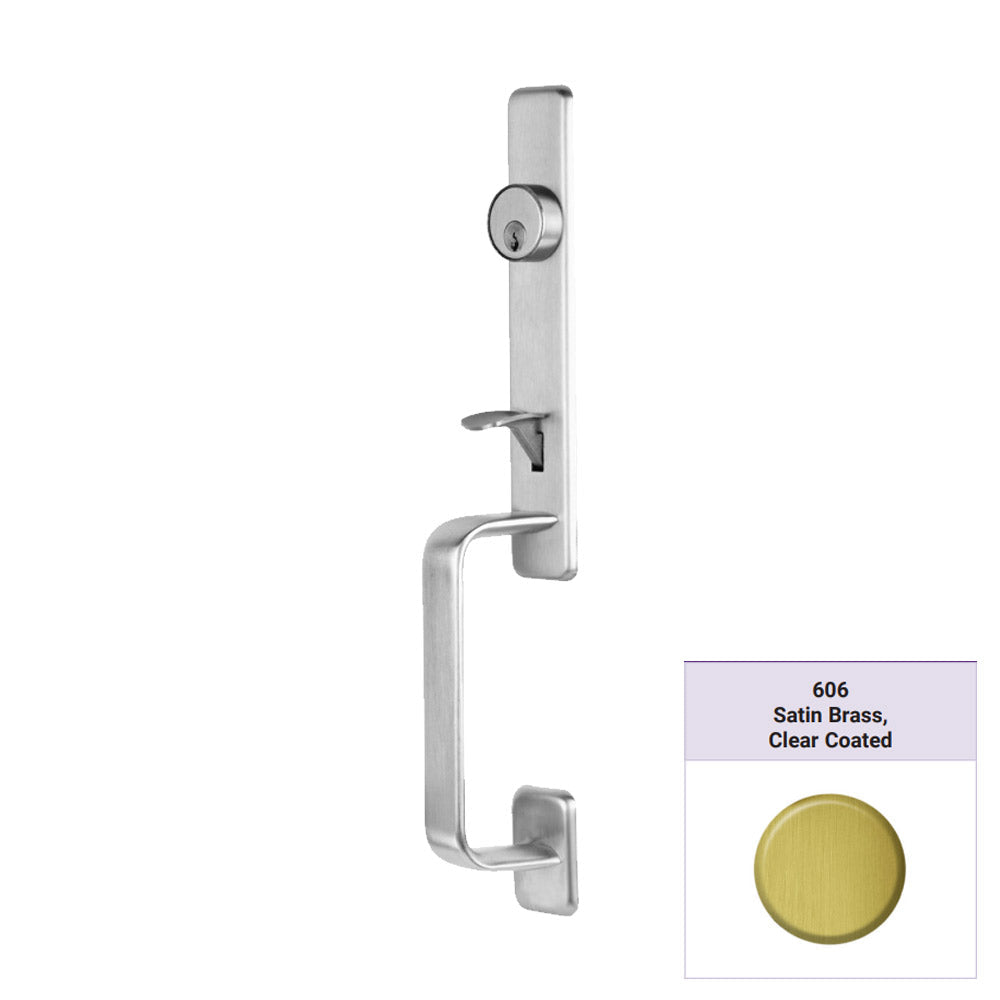

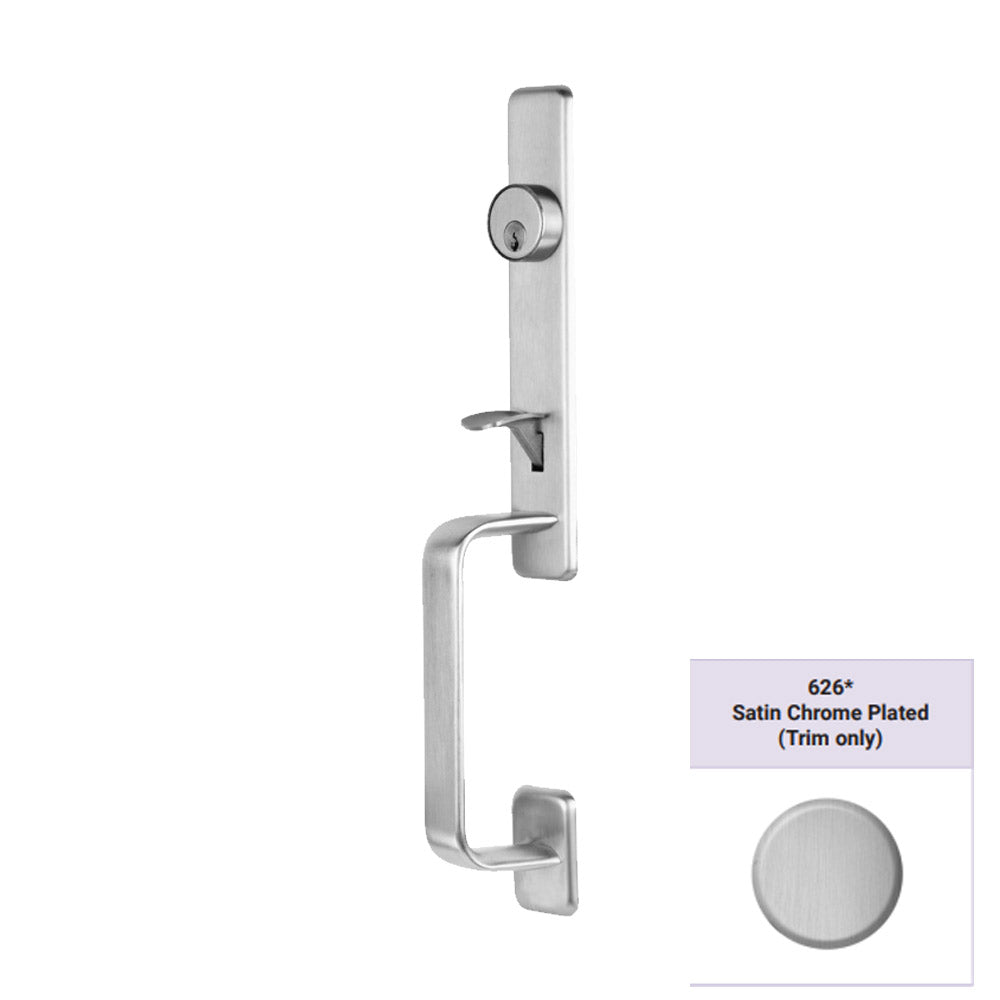

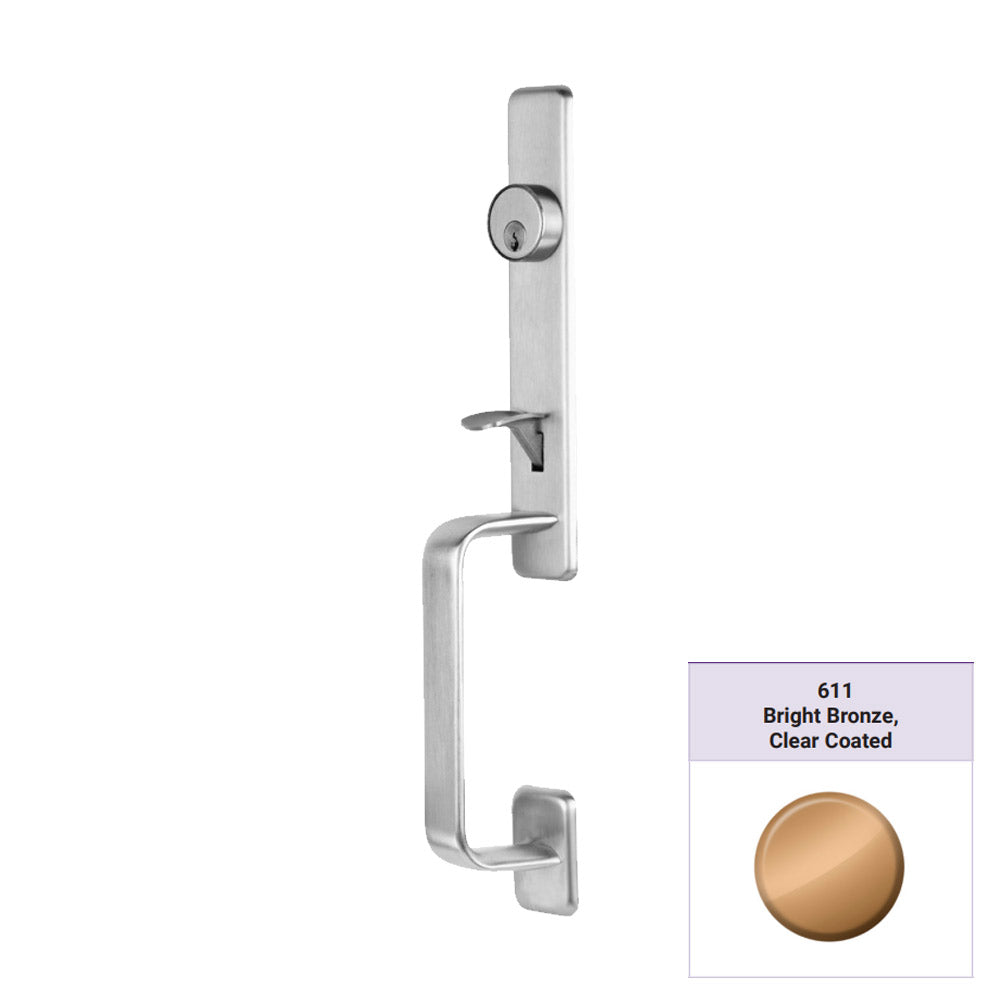

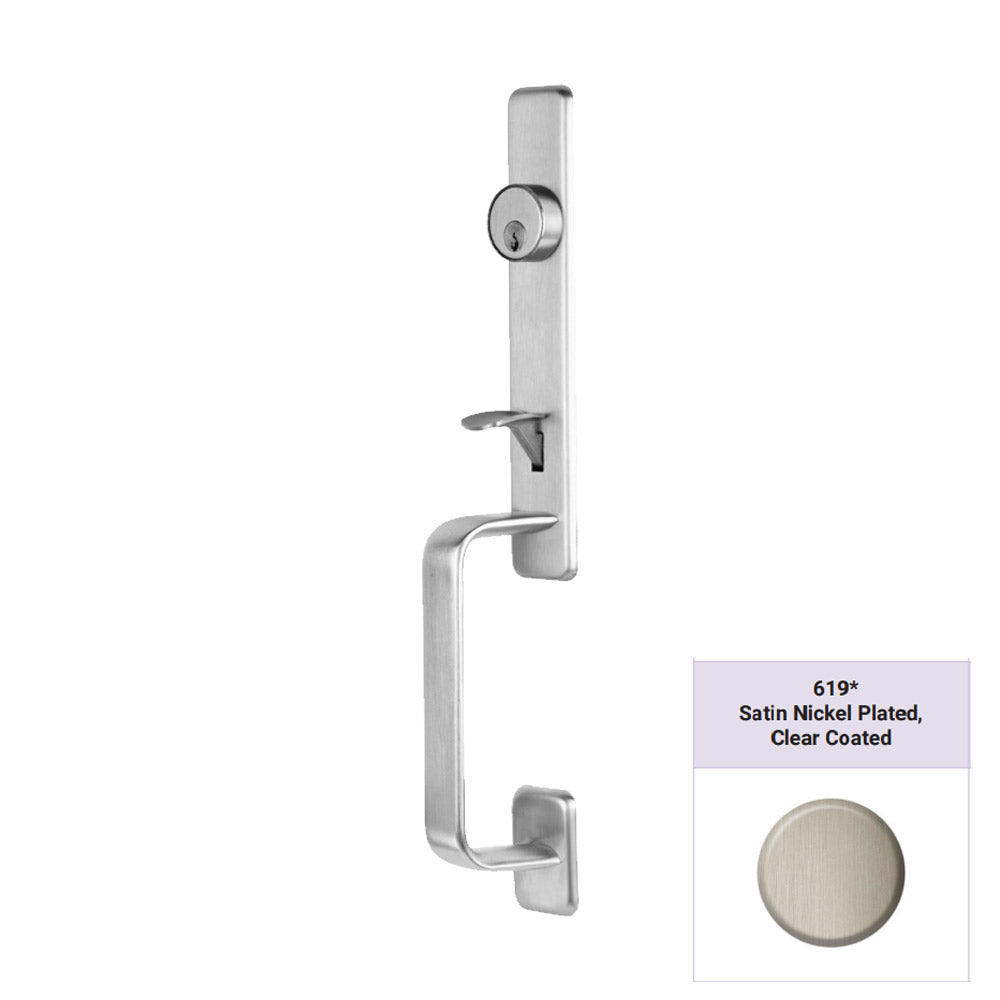

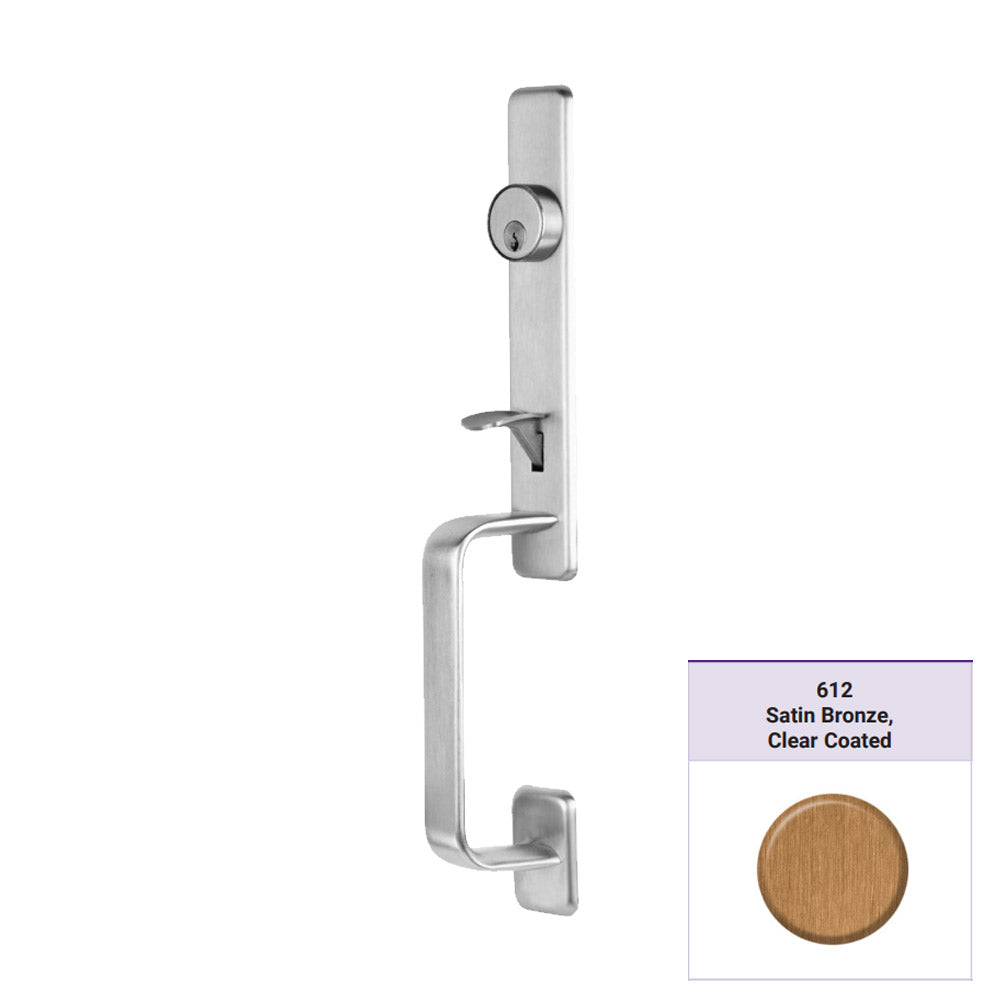

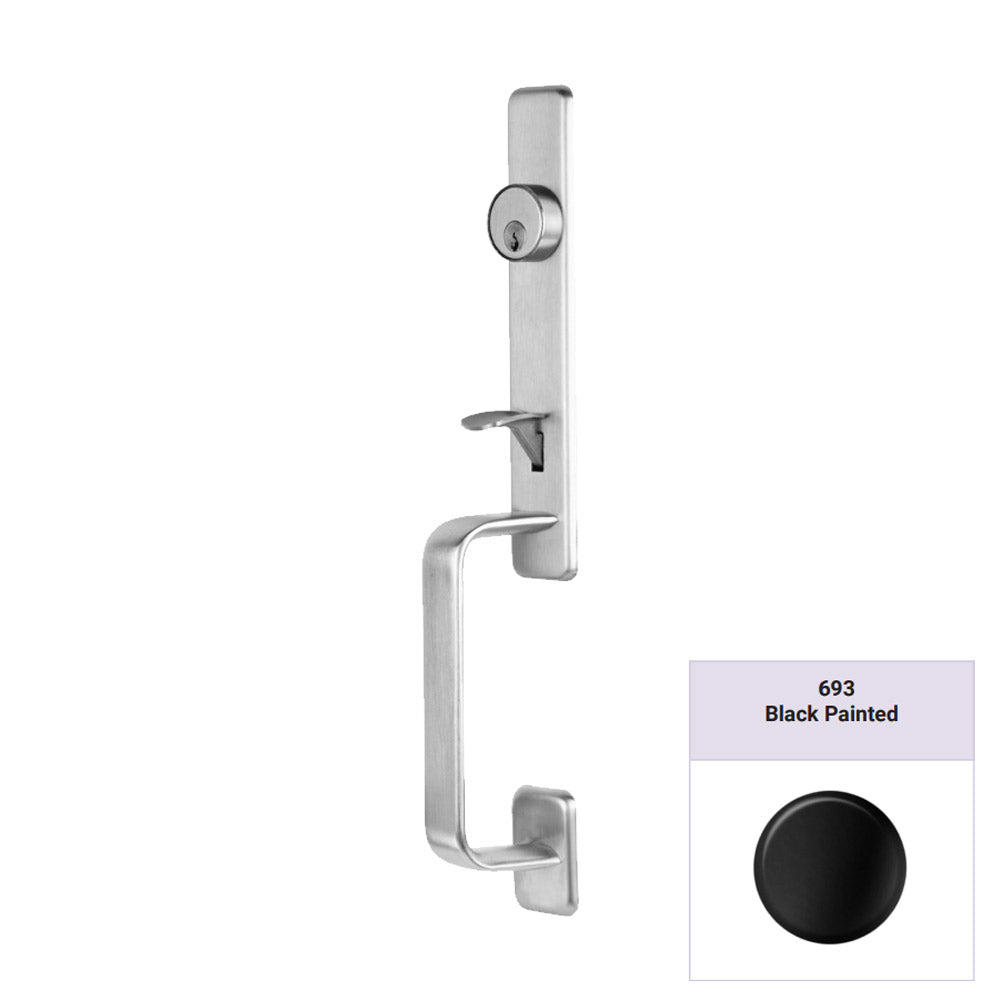

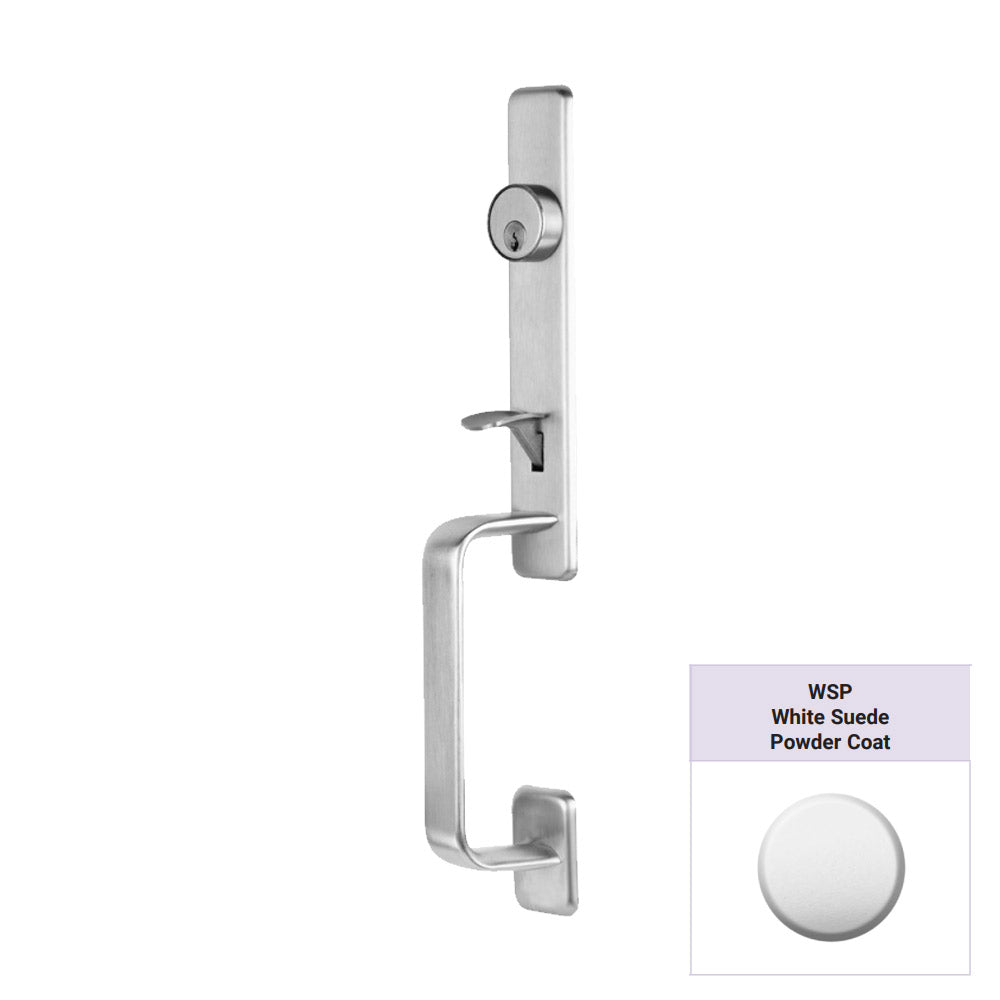

  • Variety of Finishes: Available in premium architectural finishes including 605, 606, 611, 612, 613E, 619, 626, 629, 630, 693, BSP, and WSP.

  • 1-Year Limited Warranty for peace of mind.

Compatible Trim Functions:

  • 512F – Nightlatch: Keyed access only

  • 513F – Classroom/Storeroom: Cylinder controls thumbturn

  • 514F – Dummy Trim: For non-functioning trim applications

  • 517F – Passage: Always operable; no cylinder

  • 518F – Classroom/Storeroom: Cylinder controls T-piece

  • 519F – Passage: Alternate handle configuration

Application:

Compatible with exit devices including:

  • 7200, 7210, 7220, 7250

  • 7200M(F), 7210M(F), 7220M(F), 7250M(F)

Ordering Example: 512F x 630 (Function x Finish)

Ensure secure and stylish egress solutions with the 510F Series Trim—engineered for performance, designed for excellence.
