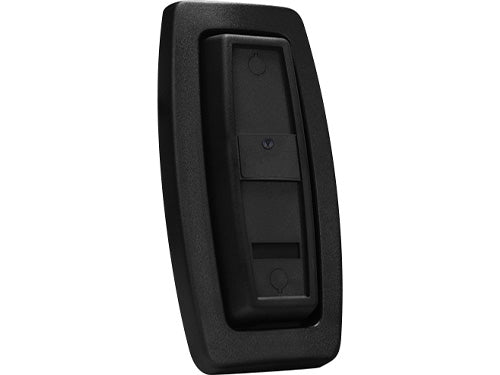

1-Gang and Mullion-Mount 125kHz Proximity Reader
The AC-PROX-1G is a 125 kHz Wiegand proximity reader designed for single-gang and mullion mounting. Clamshell cards can be read up to 6" away under ideal conditions. The frame features horizontal and vertical mounting slots, which allow the reader to be adjusted and leveled.
The following card formats are supported when used with AC Nioâ„¢ software:
| 26-Bit | HID 26-bit (Industry Standard) |
| 32-Bit | Kantech, CSN, CSN Type 2 |
| 33-Bit | DSX |
| 34-Bit | HID Standard, HID C10001, HID 0009P, Honeywell FS42, HID N10002 |
| 35-Bit | XceedID |
| 36-Bit | Keyscan Indala, Verex G-Prox, Continental |
| 37-Bit | XceedID, Fairways, Indala, Honeywell, Interlogix, STid 37-V FS01, Interlogix - XceedID |
| 39-Bit | Kantech XSF |
| 40-Bit | Aiphone 40-bit |
| 48-Bit | HID H2004604 |
| 50-Bit | RBH |
| 75-Bit | Common Access Card |
Features
- HID/AWID/Aiphone Wiegand Compatible proximity reader
- Mullion or single-gang mount
- Up to 6″ read range
- Outdoor rated
Specs
| 5~14V DC |
| 45 mA |
| 125 kHz |
| CSA, FCC, CE, C-Tick |
| Various; see the list above or the Spec Sheet for details. |
| UL 294/ULC S319-05 |
| -40°~149°F(40°~65°C) |
| 1-Gang Bracket: 5-3/4" H x 2-7/8" W x 7/8" D Mullion: 4-7/16" H x 1-5/8" W x 3/4" D |
