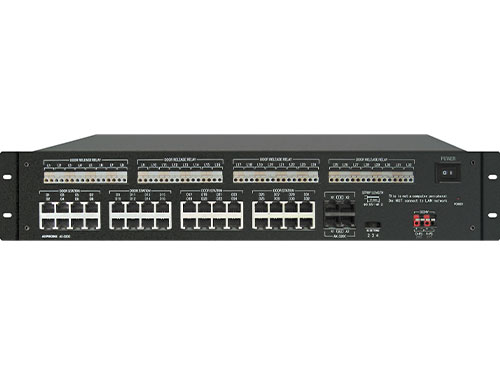

Add-on exchange unit for 32 AX Series door or sub stations.
Features
- Wiring hub for AX Series system using Cat-5e
- Two 24V DC power supply input terminals
- Rack mountable
Specs
| Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating) |
| 19" EIA rack (2U) or wall mount |
| Between Door/Sub Station and Add-On Exchange Unit: Cat-5e Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield – use Aiphone #821802 |
| Door/Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980' Central Exchange Unit to Add-On Central Exchange Unit: 16' Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG), 33'(18AWG) |
