Control and Operation Unit Kit

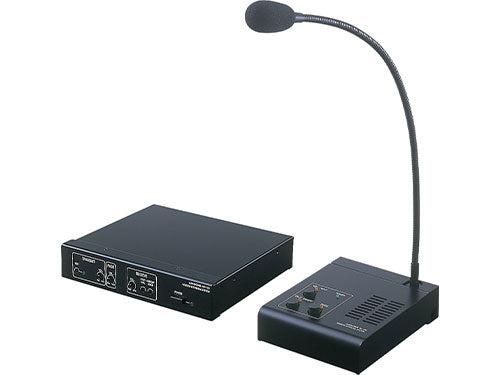

Includes the MU-100 Control Unit and the OU-100 Operation Unit with supplied connector, sold as a set. The IME-100 Gooseneck Microphone is sold separately.
Features
- VOX sensitivity adjustment
- VOX operation LED
- Transmit, speaker, receive, and standby volume control
- Ambient noise cancelling control
- Can be desk mounted or mounted under the counter with the supplied bracket
- Volume control switch (hi / lo)
- Socket for optional gooseneck microphone
- Designed for desk mounting
- Can mount up to 6′ away from the MU-100 via the supplied connector
Specs
| 14°~ 140°F (-10°~ 60°C) |
| Hands-free (VOX) or push-to-talk (simplex) Transmit output: 3W 4? Receive output: 1.5W 16? |
| 3.5mm plug Rated input: 40mW or more Max. input: 100mW or more Impedance: 32? |
| Speaker Driver to Control Unit: 2 x 2-cond., overall shield - use Aiphone #822202 or #821802 |
| Speaker Driver to Control Unit: 66'(22AWG / 18AWG) |
