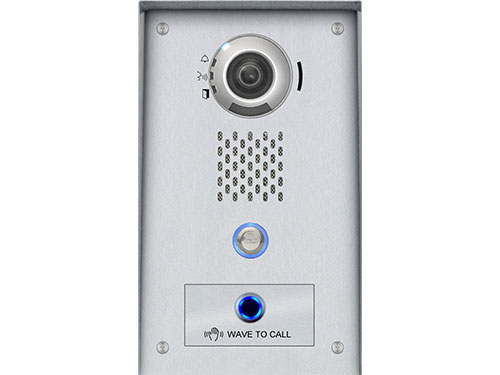

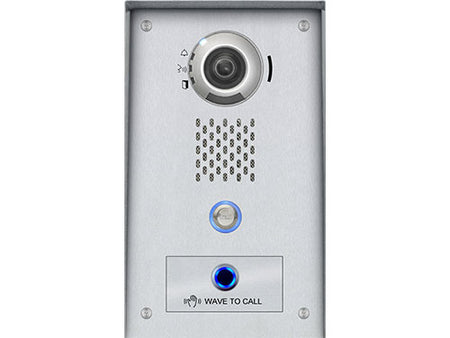

IP Video Door Station with Hand Wave Call Sensor and Surface Mount Box
The IX-DVF-HW is a surface mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover and a hand wave call sensor. The IX-DVF-HW is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-HW is compatible with all IX | IXG series devices.
Features
- Touchless sensor
- SIP Compliant
- ONVIF® Profile S Compliant
- PoE with PoE pass-through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low-light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal-resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) |
| 5.28W |
| ⅓" CMOS 1.23 megapixel |
| 0-10 cm |
| G.711 (μ-law, A law), G.722 |
| H.264/AVC, motion JPEG |
| 73dB-96dB |
| IEEE 802.1X |
| -4° ~ 131°F (-20° ~ 55°C) |
| 11-11⁄16" H x 7" W x 3-5/16” D |
