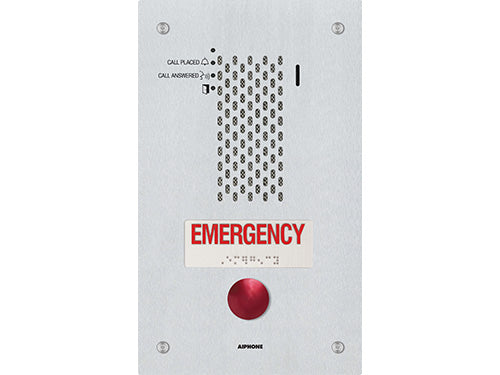

IP Emergency Station
The IX-SSA-RA is a flush mountable, vandal and weather resistant, stainless-steel IP Audio Intercom featuring an ADA compliant emergency call button. Compliant with SIP and compatible with all IX | IXG devices.
Features
- SIP compliant
- PoE with PoE pass through
- ADA compliant raised lettering and Braille signage
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
- UL certified
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) PoE pass through (802.3at Type 2 PoE+) |
| 3.36 Watts @ 48V DC |
| G.711 (μ-law, A law), G.722 |
| 73-dB-96dB |
| IEEE 802.1X |
| -40° - 140°F (-40° - 60°C) |
| IP65 |
| IK08 |
| 11-11⁄16" H x 7" W |
| Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers. |
