Mobile-Ready Box Set with Surface-Mount Door Station

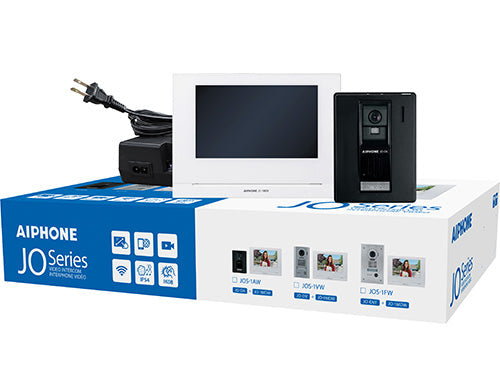

This box kit contains the JO-1MDW an analog answering station with a 7” touchscreen display and WiFi capabilities, allowing mobile apps to be added to a JO system. The JO-1MDW has two normally open dry contacts and built-in memory that can be utilized to record calls, with the option of increasing the storage capacity using a MicroSD card. The box kit also contains the JO-DA a surface mount analog door station with an IP54 rating and an adjustable switch allowing the camera angle to be manually set during installation. The box kit also contains the PS-1820UL a UL and CSA listed 18v Class II power supply.
Features
- Connect up to 8 mobile devices per system
- Store calls using onboard memory
- Add a MicroSD card to increase memory to a maximum of 32 GB
- JO-DA activates white LED light for visibility at night
- Activate door release on site or off using the mobile app
Specs
|
Model: JO-1MDW Video Display: 7" TFT Touchscreen Mounting: Surface wall mount or desk mount with MCW-S stand Internal Call Recording: 10 calls max. @ 10 seconds/call Memory Expansion: micro SDHC card slot, 32GB max. Call Recording with max memory: 1,000 calls max. @ 10 seconds/call Communication style: Handsfree or PTT Wireless Frequency: 2.4 GHz Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N) |
|
Model: Intercom App Type B Max per system: 8 devices Available at: Apple App Store℠ or Google Play™ |
|
Model: JO-DA Power Source: Supplied by inside monitor Camera: 1/4 inch color CMOS Mounting: Surface wall mount using a 1 gang electrical box Faceplate Material: Self-extinguishing PC + ABS plastic Enclosure Rating: IP54 Communication style: Handsfree Operational Tempature: -40°~140° F (-40° ~ 60° C) Volume: 69.7 dB Wiring to master: 2-cond., low cap, non-shielded Max. Wire distance: 165' (22AWG) 330' (18AWG) |
|
Model: PS-1820UL Power Source:AC 100~240V 50/60Hz Power Output: DC 18V 2A |
