Optional Expansion Station

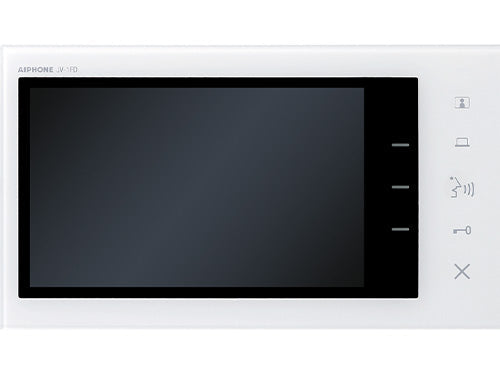

The JV-1FD is an expansion station for the JV Series. The station provides an extra monitor for JV Series systems. One can be added per JV system, is sold separately, and is intended to be used only with the JVS-1A or JVS-1F box sets.
Features
- Video identification and monitoring
- Slim design
- Hands-free communication or push-to-talk
Specs
| 24V DC (PS-2420UL) |
| Door release N/O 24V AC/DC, 1A Option output N/O 24V AC/DC, 1A |
| 100 mA standby, 780 mA max |
| 7" TFT LCD, WVGA |
| Surface wall mount |
| 3-gang box |
| Flame resistant PC + ABS resin |
| White |
| 32~140°F (0-40°C) |
| 5-1/8" H x 9-1/16" W x 13/16" D |
| 1.17 lbs (530g) |
| Door Station to Expansion Station: 2-cond., mid cap, solid, non-shielded—use Aiphone #871802 Expansion Station to Master Station (without door release): 4-cond., mid cap, solid, non-shielded—use Aiphone #871804 OR 2 runs of Aiphone #871802 Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded — use #871802 + #871804 OR 3 runs of Aiphone #871802 |
