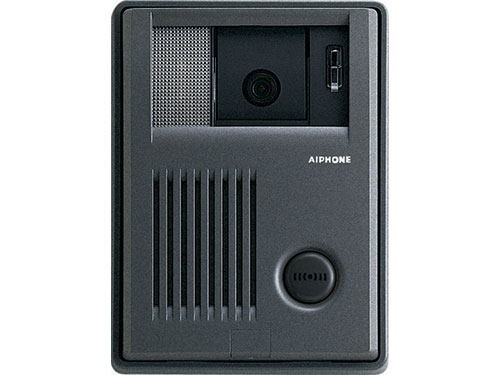

KB-DAR with Remote Activation Contacts
The KB-DAR-M allows any standard motion detector or activation device with a normally open contact to be interfaced with the KB-3MRD Video System. When the motion detector is tripped, the camera will turn on and a chime will be heard at the inside monitor station(s), indicating that there is some activity near the door station location.
Features
- Tilt controlled camera
- Mounts directly to wall or 1-gang box
- Locator LED backlit on CALL button
- LED illumination automatically turns on in low light conditions
- Motion detector interface
Specs
| Hands-free |
| Type: 1/4" CCD View Area: 3'8"~7'1" vertical x 2' horizontal at 20" |
| 14°~140°F (-10°~60°C) |
| Fire resistant ABS plastic |
| Surface mount directly to wall |
| Door Station to Master Station: 2-cond., low cap, non-shielded - use Aiphone #871802 |
| Door Station to Master Station: 330'(22AWG) 650'(18AWG) |
