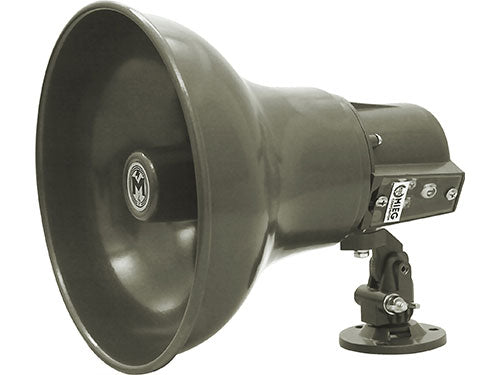

Multi-tap Paging Horn
The MH-15W provides a robust, weather-resistant solution for voice paging and signaling. Featuring all-metal construction, a wide frequency response, and external adjustable power taps, the MH-15W is suitable for demanding environments and installations.
The MH-15W can be used for 25V or 70V paging systems, and can be connected directly to an 8Ω output. It can be used with intercom systems for two-way communications that require and 8Ω direct tap.
The speaker mounts directly to a flat surface and can be adjusted to the desired angle.
Features
- Lightweight aluminium horn
- Weatherproof/waterproof construction
- Universal mounting bracket
- Build-in transformer for 100/70/25V systems
- 8Ω direct tap
Specs
| 15W maximum |
| 375-14,000Hz |
| 120dB (measured at 1 meter on axis with 15W input) |
| 110° |
| 5.0K/2.5K/1.3K/670/330/90/8 Ω |
| Spun aluminum (horn body) Die cast aluminum (driver unit housing) |
