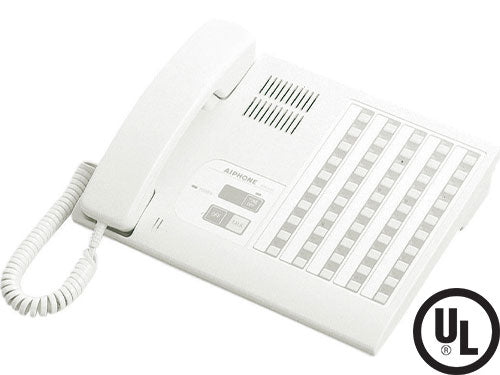

50-Call Audio Master Station with Handset
Features 3 call levels with distinct tone and light signaling for routine, urgent, and cord-out trouble calls.
Features
- Routine call and bathroom call annunciated by slow or fast flashing LED and tone
- Auto-connect to next call-in priority (no need to select station)
- Fault tone sounds when wires are disconnected or shorted at patient station, or handset is off-hook for more than 90 seconds
Specs
| Handset (VOX) or push-to-talk (simplex) |
| 1) Cord-out trouble call 2) Urgent bathroom call and NHR-3TS common area bathroom/staff call 3) Routine call (sub station call-ins on standby connected according to urgency level and time of call) |
| 1) Line-off trouble at bedside or NHR-3TS and duty station - to stop tone on duty station, plug in 2-pin jumper to CN104 in Central Control Unit 2) 90 sec. elapse timer - call tone goes up to HIGH level 3) 90 sec. off-hook timer - steady tone will notify handset is off-hook |
| Master Station to Central Control Unit: 5 twisted pair, low cap, PE, overall shield - use Aiphone #862210 |
| Master Station to Central Control Unit: 65'(22AWG) |
