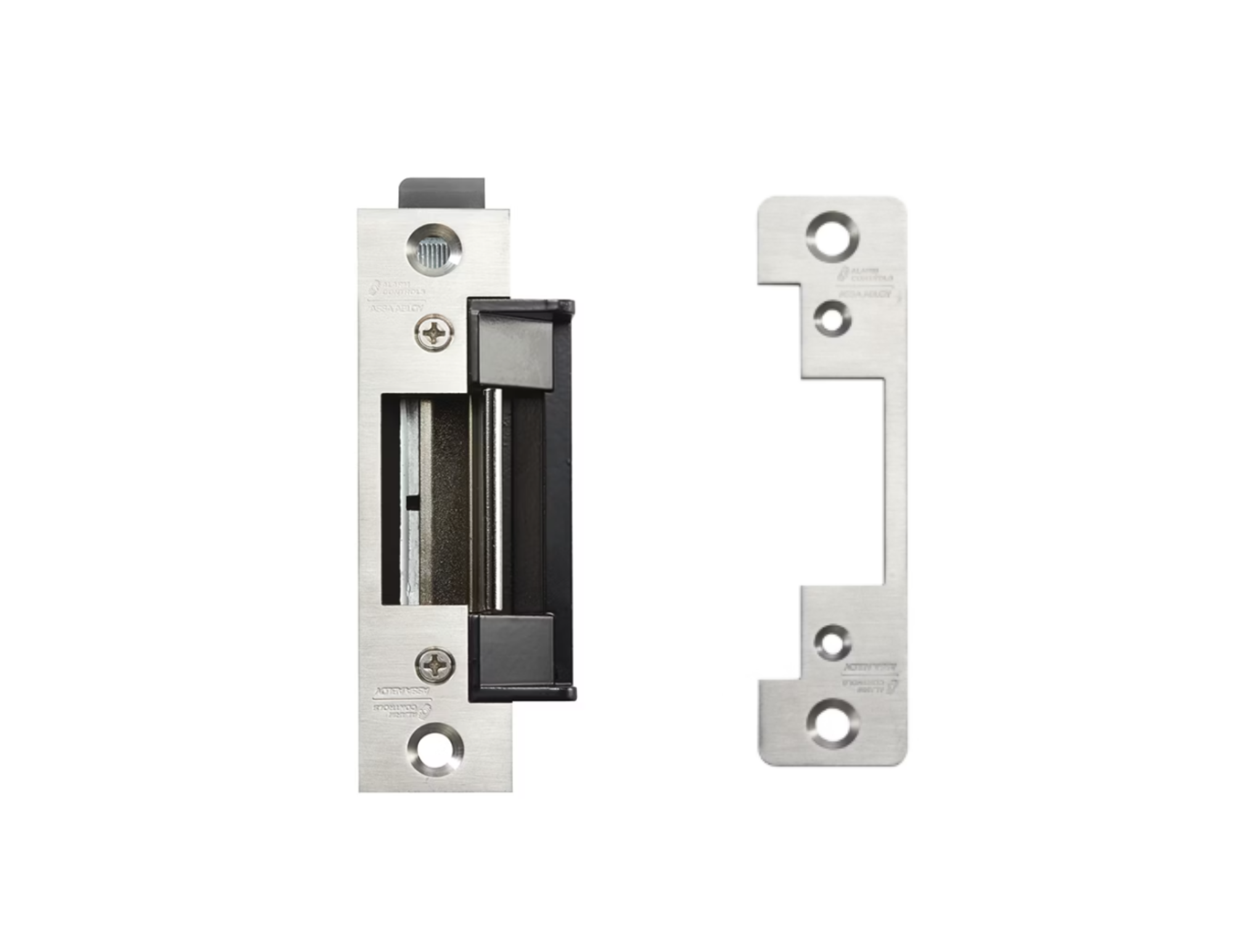

Grade 1 Electric Strike for use with cylindrical locksets, mortise latch or mortise exit devices.
Product Features
- For use with 5/8" and 3/4" throw cylindrical locksets
- Strike body depth 1-1/2"
- Field selectable, fail secure/fail safe
- Non-handed for easy installation
- Mounting kit includes two 4-7/8" stainless steel face plates (one round corner and one square corner)
Certifications
- Certifications : UL 1034 - Standard for Burglary-Resistant Electric Locking Mechanisms
Strength & Durability
- Holding Force (lbs) : 1500
- Dynamic Strength (ft lbs) : 70
- Endurance : 500000
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
- Grade : Grade 1
Electrical
- Current 12v AC : 130
- Current 24v AC : 70
- Current 24v DC : 105
- Input Operating Voltage : Dual-voltage 12/24 VAC/VDC; continuous duty operation on DC
- Power Source : Hardwired
Application
- Frame Material : Aluminum|Metal|Wood
- Handing : Non-handed
- Latchbolt Accommodation : 5/8 - 3/4
- Surface Mounting : Cutting required
