Alarm Controls EB Series Request to Exit Station | REX Push Button
Alarm Controls EB Series Request to Exit (REX) Egress Stations
The Alarm Controls EB Series Request to Exit (REX) Egress Stations provide a reliable and durable solution for request-to-exit applications in access control systems. Designed with a momentary-action push button, the switch remains active only while the button is pressed, making it ideal for controlling electric locks, electromagnetic locks, electric strikes, automatic doors, and other access control devices.

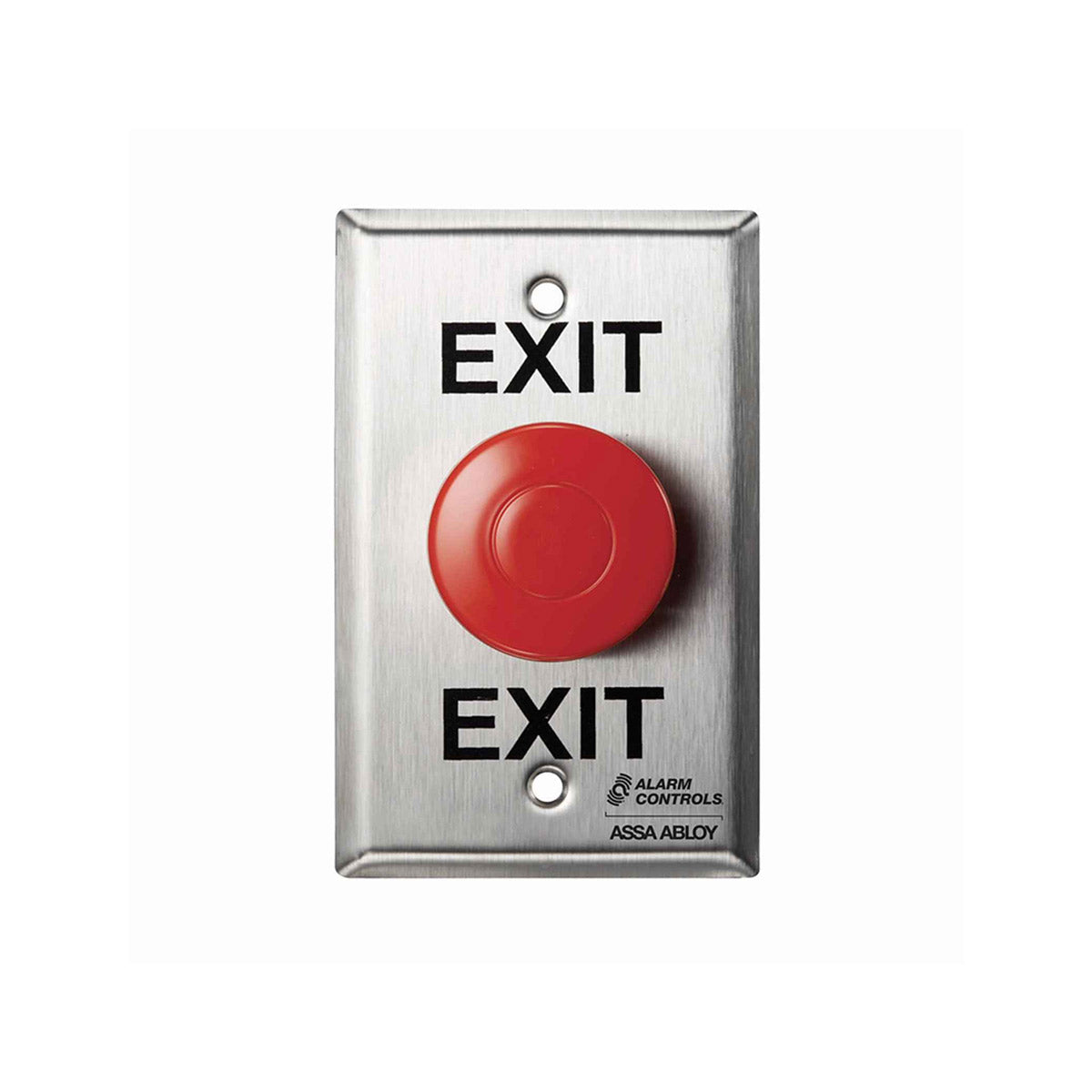

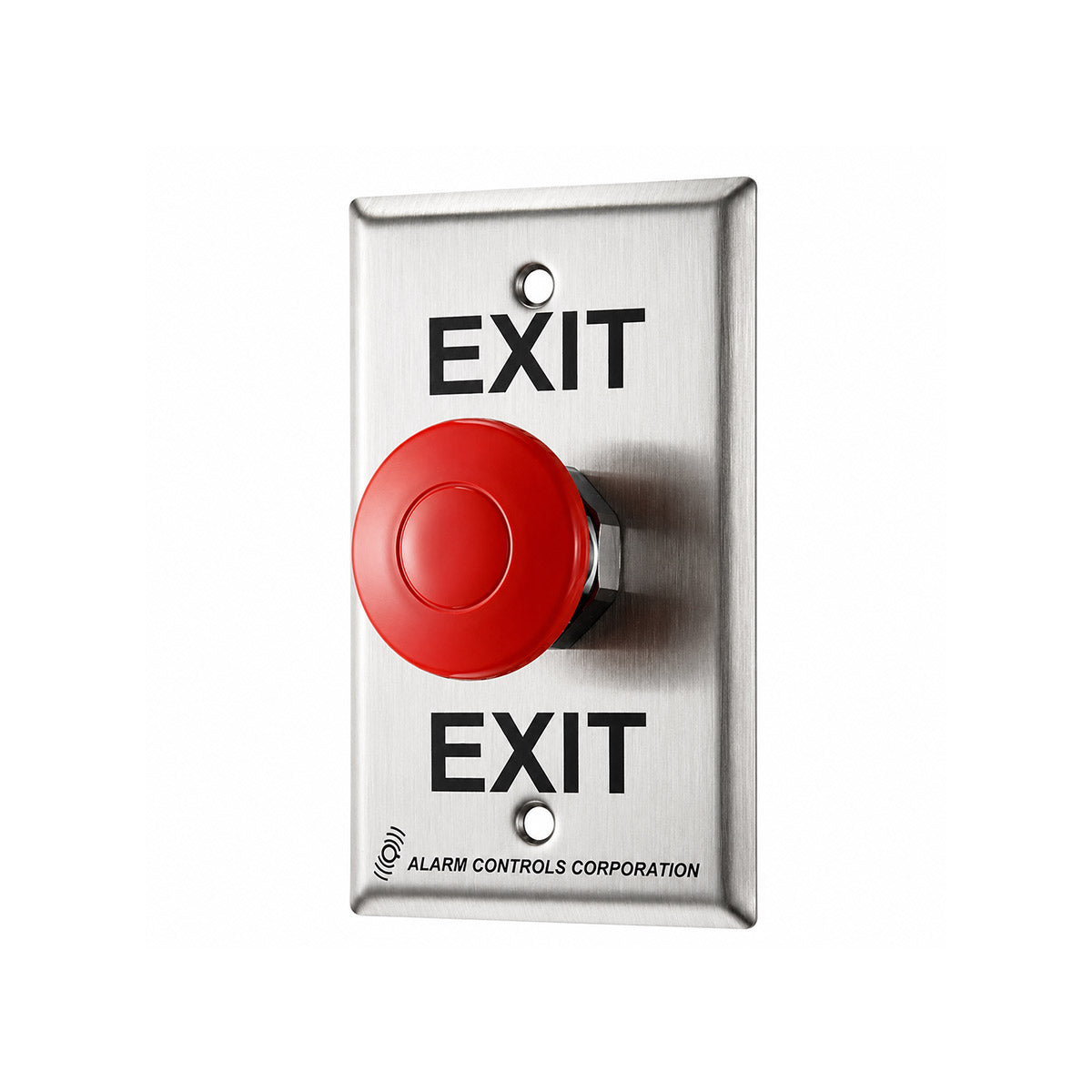

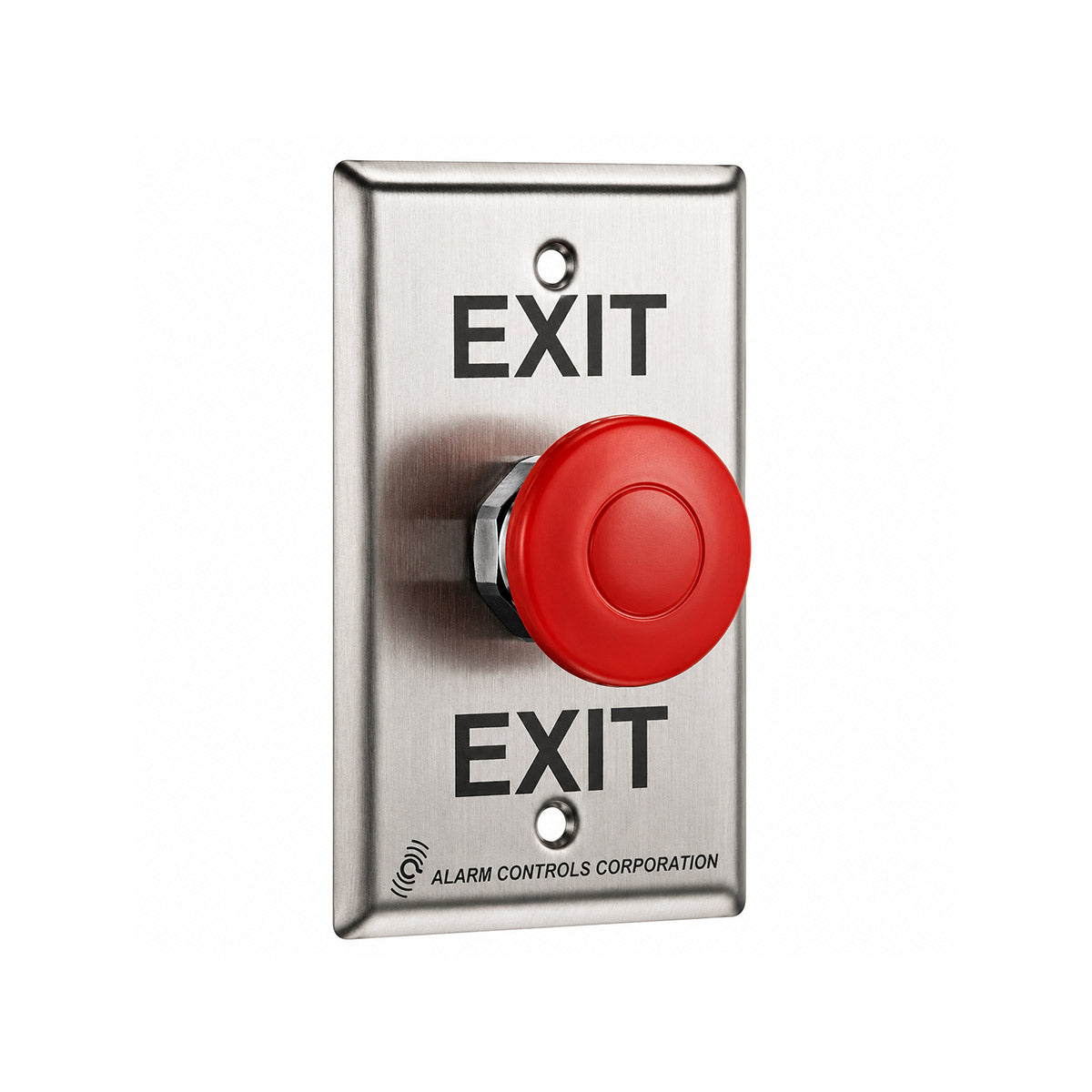

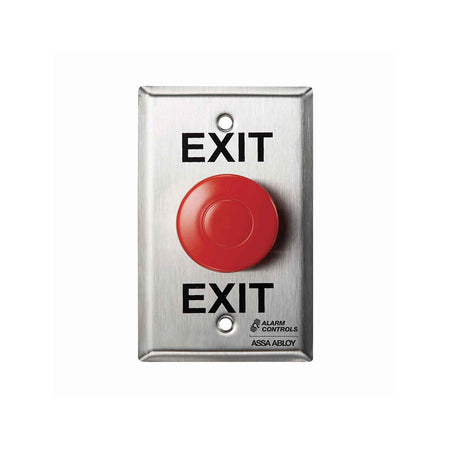

Built with a rugged single-gang stainless steel faceplate and a highly visible 1-1/2" red mushroom button, the EB Series offers dependable operation in commercial, industrial, healthcare, educational, and government facilities. Multiple contact configurations are available to ensure compatibility with virtually any access control system.
Optional illuminated buttons, guard rings, lift-up protective covers, and custom plate finishes allow the EB Series to be configured for a wide range of installation requirements.
Key Features
- Momentary-action push button remains active only while depressed
- Large 1-1/2" red mushroom button for quick and easy operation
- Durable single-gang stainless steel faceplate
- Clearly labeled "EXIT" for easy identification
- Multiple contact configurations available for maximum system compatibility
- Heavy-duty contacts rated 10A at 35VDC or 120VAC
- Screw terminal connections for fast installation
- Compatible with magnetic locks, electric strikes, automatic doors, and access control systems
- UL and CSA certified components
Available Options
Customize the EB Series to meet your application requirements:
- Multiple faceplate finishes and widths
- LED illuminated push button
- 6V
- 12V
- 24V
- 120V
- GR Guard Ring for added protection against accidental activation
- LUC Lift-Up Cover to help prevent unintended operation

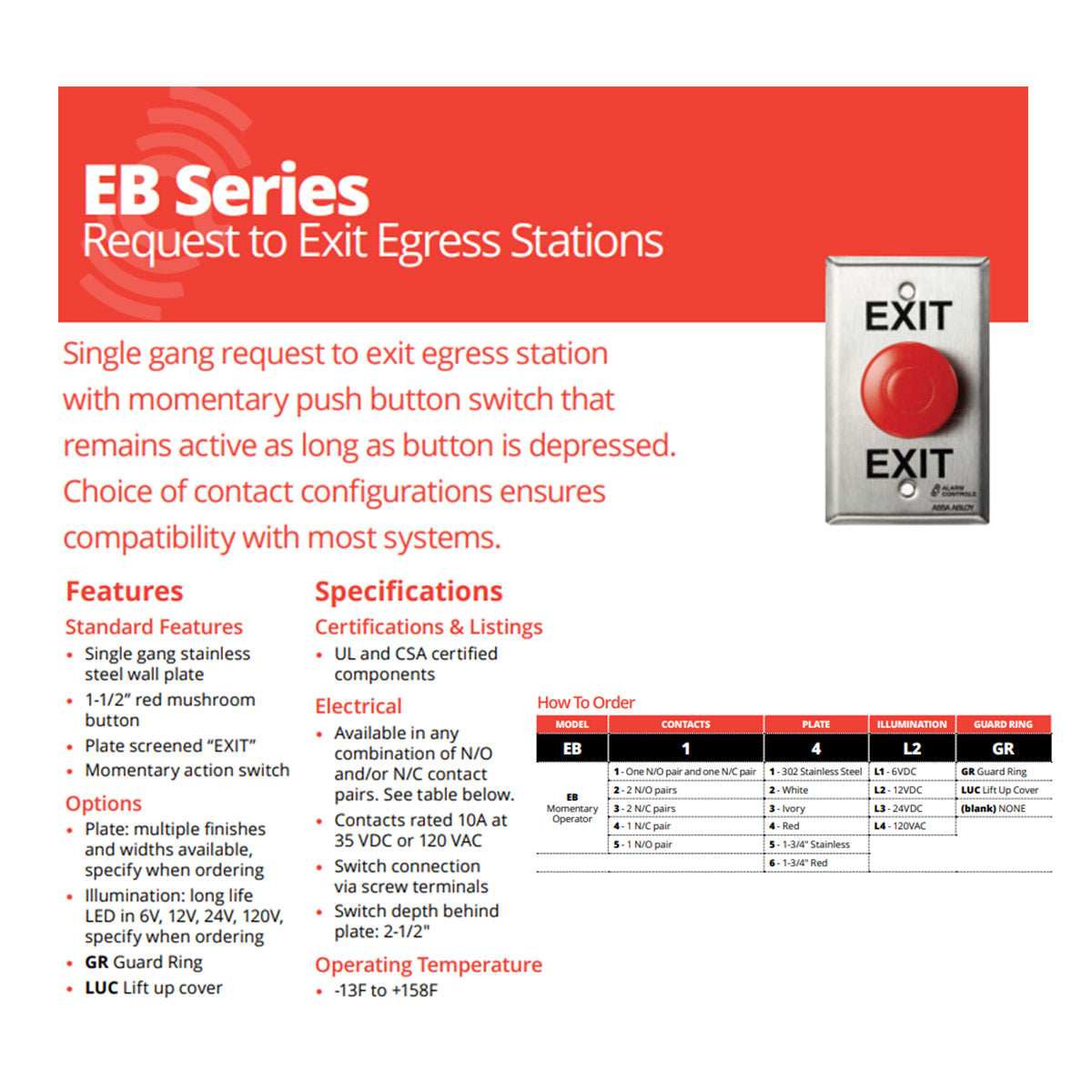

Technical Specifications
| Specification | Details |
|---|---|
| Plate Type | Single-gang stainless steel |
| Button Size | 1-1/2" mushroom button |
| Button Action | Momentary |
| Plate Marking | EXIT |
| Contact Configuration | Available in multiple N/O and N/C combinations |
| Contact Rating | 10A @ 35VDC or 120VAC |
| Wiring | Screw terminals |
| Switch Depth Behind Plate | 2-1/2" |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Certifications | UL and CSA certified components |
Ideal Applications
- Request-to-exit (REX) systems
- Access control installations
- Electromagnetic lock (Maglock) release
- Electric strike activation
- Automatic door systems
- Commercial office buildings
- Healthcare facilities
- Schools and universities
- Warehouses and industrial facilities
- Government and public buildings
Why Choose the Alarm Controls EB Series?
The Alarm Controls EB Series combines durable construction, flexible contact configurations, and optional accessories to deliver a dependable request-to-exit solution for virtually any access control installation. Whether used with magnetic locks, electric strikes, or automatic door operators, the EB Series provides reliable performance and long-lasting durability.
