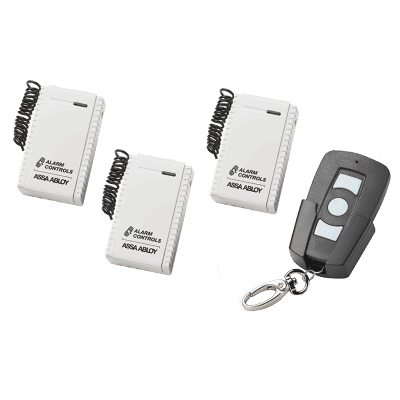

Wireless remote transmitters allow access control for up to three doors from one device. Ideal for front desk/reception applications or hard-to-wire locations. Designed to work with magnetic locks, electric strikes, keypads, gate operators and door operators. Kits include channel receiver and transmitter with mount and keychain.
Product Features
- RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
- RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
- Receiver operates on 12 or 24 VAC or VDC
- Maximum current draw 50mA
- Temperature range: -20°C to 60°C
- Rolling code; more than one billion code combinations
- Relay SPDT contacts rated 1 Amp @ 30VDC or 120VAC
- Built-in five second delay on release
- Receiver relay is factory set for momentary mode, relay can be set for latching mode
- Receiver will accept up to 30 transmitters
- Size: 2-1/2" L x 1-1/4" W x 3/4" D
- Off-white case blends with any décor
- Receiver screw terminals are hidden by cover
- Bi-color (red & green) LED on receiver indicates status of relay
