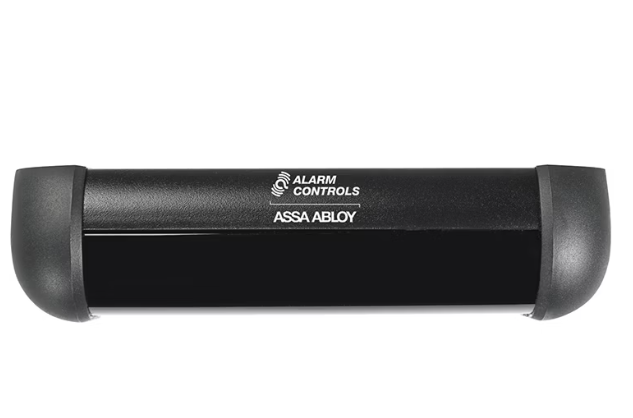

Active Focused Infrared Request to Exit
Product Overview
Active focused infrared motion sensor is specifically designed for request to exit applications. SREX-100 has an adjustable narrow activation zone and cannot be deceived by objects placed under the door.
Product Features
- Narrow activation zone is limited to door handle area (range 28" to 48")
- Designed to eliminate cross-traffic activation
- Cannot be deceived by placing objects under door
- Adjustable time delay from 1 to 60 seconds
- Built-in buzzer, can be silenced if required
- Request to exit input, keypad or card reader input
Dimensions
- Length (in) : 6-7/8"
- Width (in) : 2"
- Height (in) : 1-7/8"
Electrical
- Contact Rating : 2A contacts; rated at 1.3A at 30 VDC or 24 VAC
- Current (mA) : 155
- Door Position Switch : Normally open dry contacts
- Input Operating Voltage : 12 or 24 VAC or VDC, auto sensing
- Switch : 1 DPDT- Double Pole Double Throw
Environmental
- Maximum Operating Temperature (F) : 120
- Minimum Operating Temperature (F) : 32
