Alarm Controls TS-10 & TS-11 Vandal Resistant Request to Exit Station

SKU: TS-10
$111.15

Alarm Controls TS-10 & TS-11 Vandal Resistant Request to Exit Station

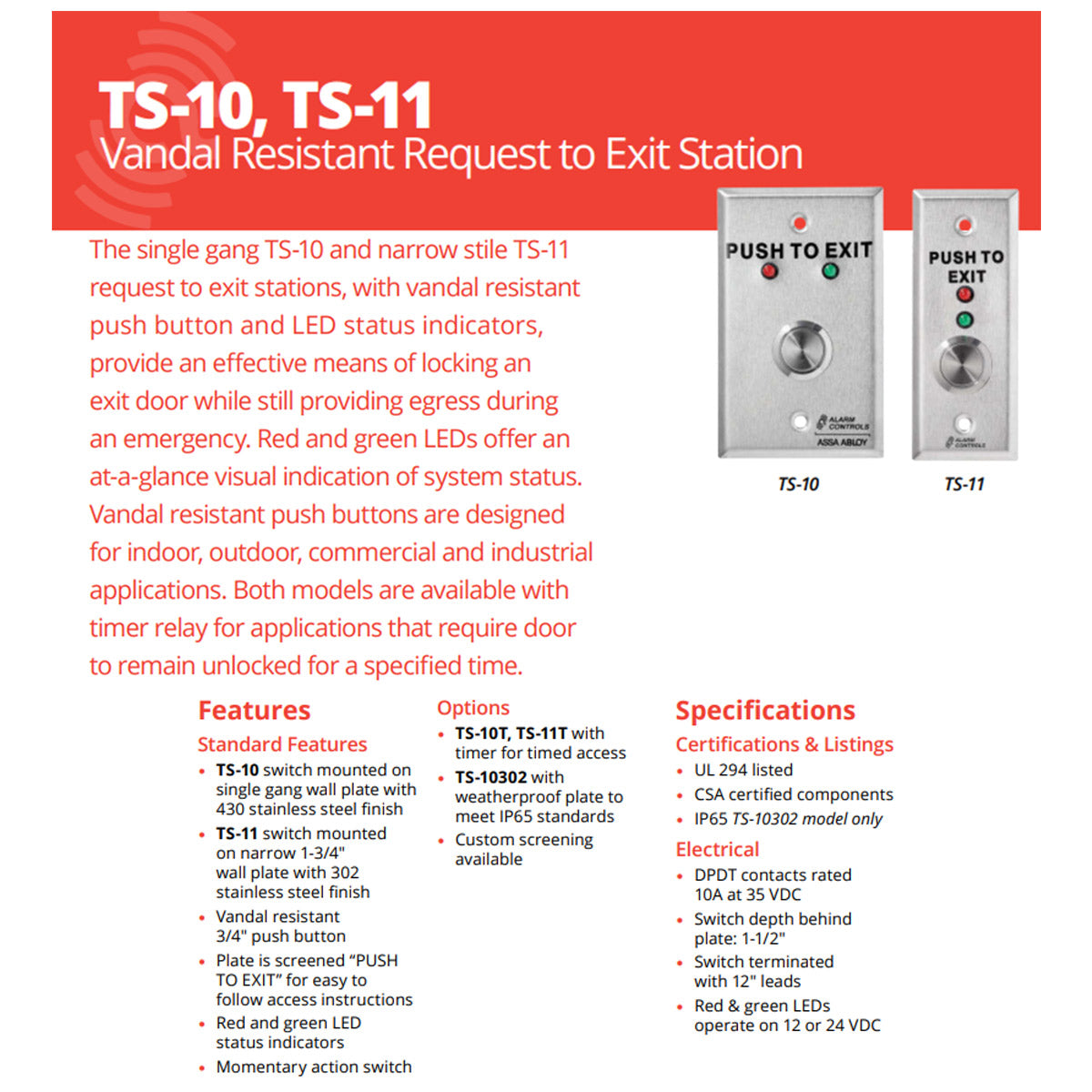

The Alarm Controls TS-10 (single gang) and TS-11 (narrow stile) Vandal Resistant Request to Exit Stations are engineered for high-security access control applications where durability and reliability are essential. Featuring a rugged 3/4" vandal-resistant push button and red/green LED status indicators, these exit stations provide dependable request-to-exit functionality while offering instant visual feedback on system status.

Designed for commercial, industrial, indoor, and outdoor environments, the TS-10 and TS-11 are ideal for facilities requiring secure egress without compromising durability. Both models are available with an optional timer relay that keeps the door unlocked for a preset period before automatically relocking. The TS-10302 model includes a weatherproof faceplate that meets IP65 standards for harsh environments.

Key Features

  • Heavy-duty 3/4" vandal-resistant push button for demanding applications
  • Red and green LED status indicators provide clear visual system status
  • Faceplate screened with "PUSH TO EXIT" for easy-to-follow exit instructions
  • Momentary action switch for reliable request-to-exit operation

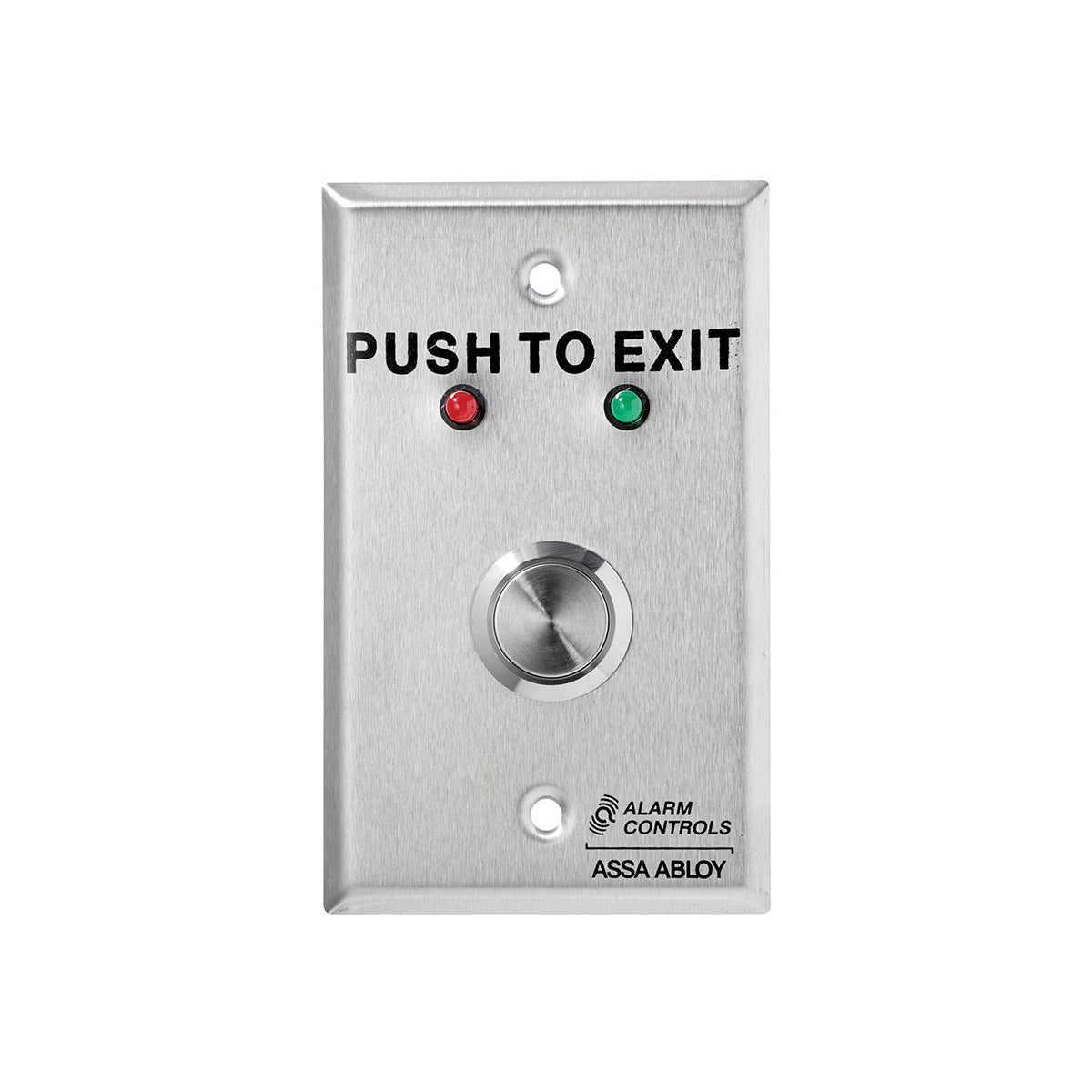

  • TS-10: Single gang 430 stainless steel wall plate

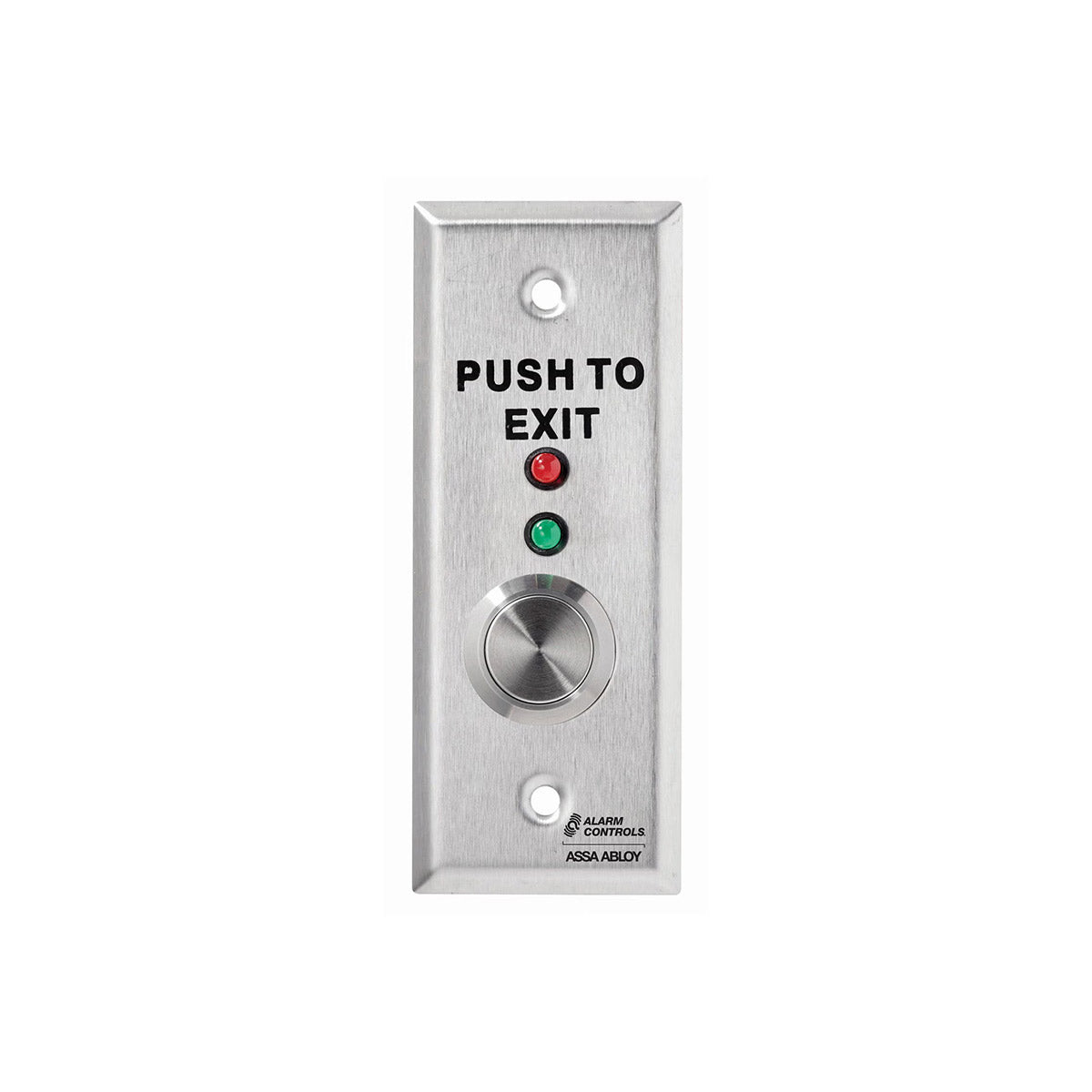

  • TS-11: Narrow 1-3/4" 302 stainless steel wall plate
  • Optional TS-10T and TS-11T timed models for controlled door release
  • Optional TS-10302 weatherproof model rated IP65
  • Custom faceplate screening available for specialized applications

Specifications

Certifications & Listings

  • UL 294 Listed
  • CSA Certified Components
  • IP65 Rated (TS-10302 Weatherproof Model Only)

Electrical

  • DPDT Contacts
  • Contact Rating: 10A at 35 VDC
  • Switch Depth Behind Plate: 1-1/2"
  • Pre-wired with 12" leads
  • Red and Green LEDs operate on 12 or 24 VDC

Construction

  • TS-10: 430 Stainless Steel Single Gang Plate
  • TS-11: 302 Stainless Steel Narrow Stile Plate
  • 3/4" Vandal-Resistant Push Button
  • Screened "PUSH TO EXIT" Faceplate

Available Models

Model Description
TS-10 Single gang vandal resistant request to exit station
TS-11 Narrow stile vandal resistant request to exit station
TS-10T Single gang model with timer relay
TS-11T Narrow stile model with timer relay
TS-10302 Weatherproof IP65-rated single gang model

Ideal Applications

  • Commercial Office Buildings
  • Industrial Facilities
  • Schools & Universities
  • Healthcare Facilities
  • Government Buildings
  • Parking Facilities
  • Exterior Access Control Doors
  • High-Traffic Entry & Exit Points
DESCRIPTION TAG: Alarm Controls TS-10 and TS-11 vandal resistant request to exit stations feature a durable 3/4" push button, red/green LED status indicators, UL 294 listing, optional timer relay, and IP65 weatherproof model for commercial access control applications.
