Alarm Controls TS-15 & TS-16 Request to Exit Station with Pneumatic Timer

The Alarm Controls TS-15 and TS-16 Request to Exit Stations with Pneumatic Timer provide a dependable, power-free solution for timed door egress in access control applications. Equipped with a pneumatic push button timer, these stations temporarily unlock a door for 2 to 60 seconds, allowing safe and convenient entry or exit before automatically relocking.

The TS-15 is designed for narrow stile aluminum door frames with a 1-3/4" 302 stainless steel wall plate, while the TS-16 features a standard single-gang 430 stainless steel wall plate for conventional installations. Since the timer operates pneumatically, no external power is required, making these stations ideal for reliable, low-maintenance operation.

Key Features

• Adjustable pneumatic timer with 2 to 60 second delay
• No external power required for timer operation
• Compact 1/4" push button with protective guard ring
• Clearly marked "PUSH TO EXIT" for intuitive operation
• Automatic door relocking after the preset time expires
• Pneumatic timer rated for up to 1 million operations
• Durable stainless steel wall plates for long-lasting performance
• Pre-wired with 10" colored leads for easy installation
• UL 294 Listed for access control system applications

Models Available

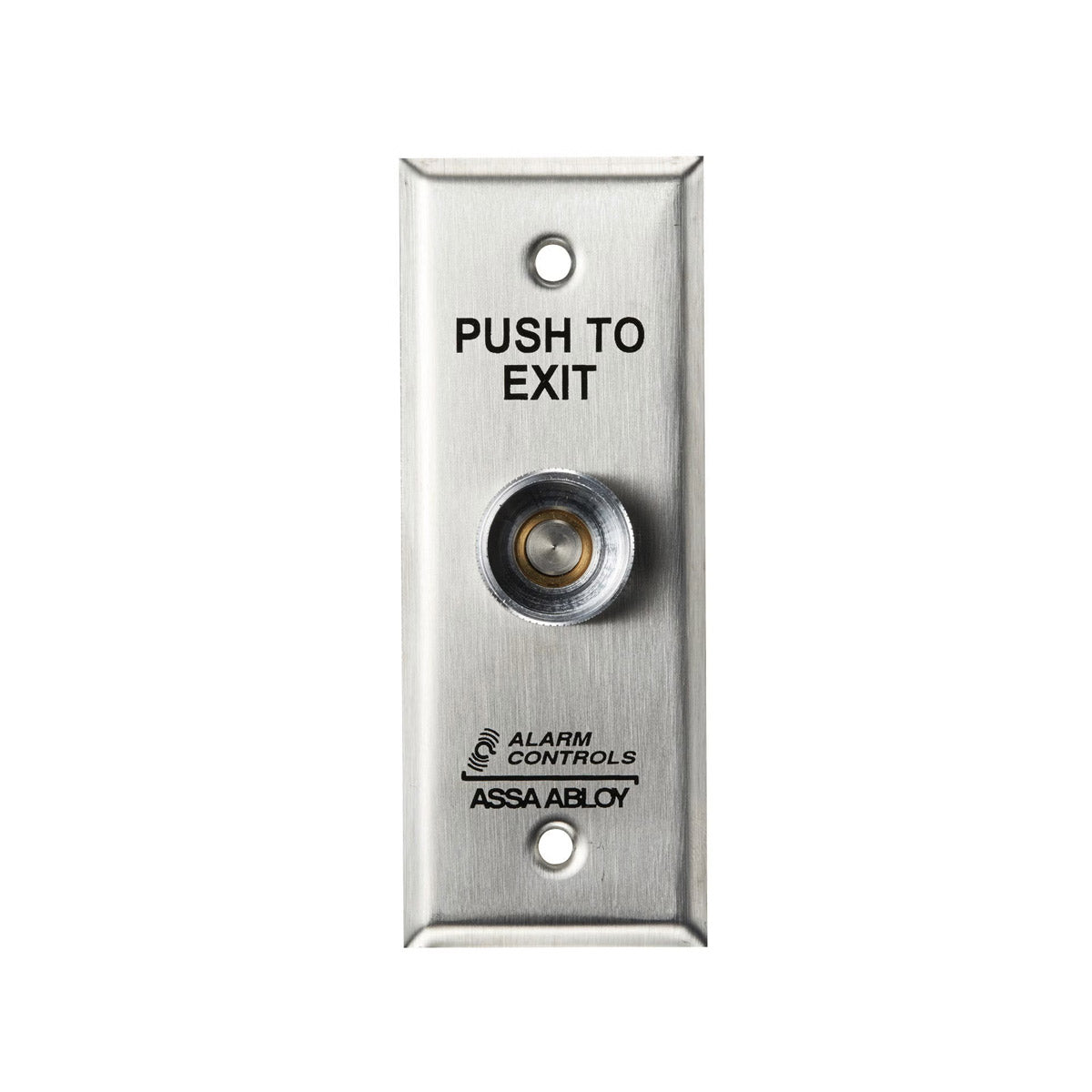

• TS-15 – Narrow 1-3/4" wall plate with 302 stainless steel finish

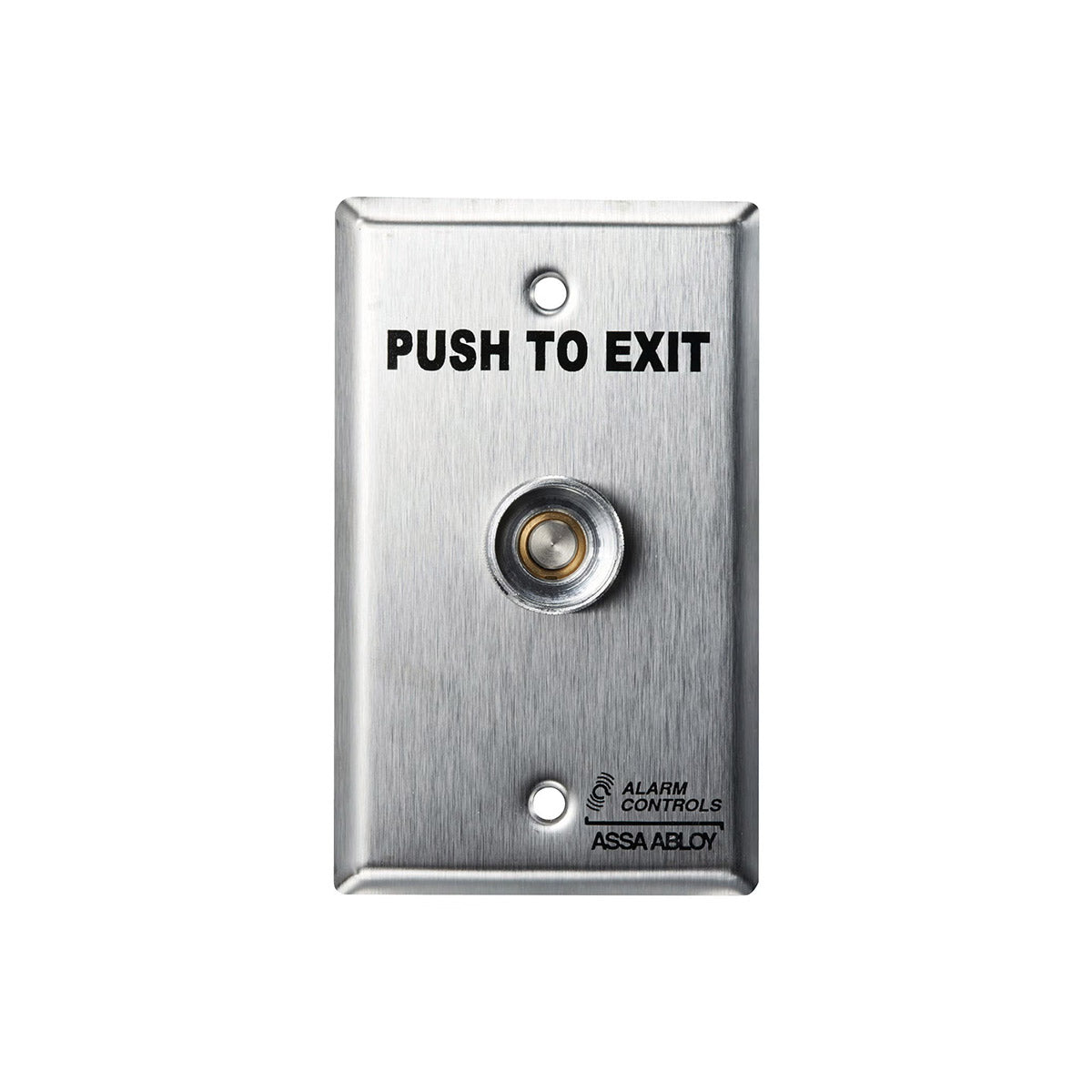

• TS-16 – Single-gang wall plate with 430 stainless steel finish

Available Options

• TS-16302 – Single-gang weather-resistant 302 stainless steel wall plate
• Custom engraved or screened plate wording available

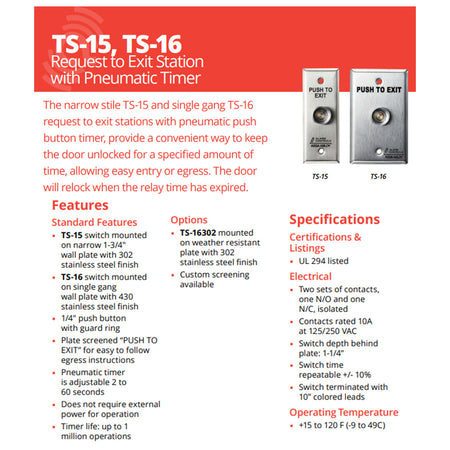

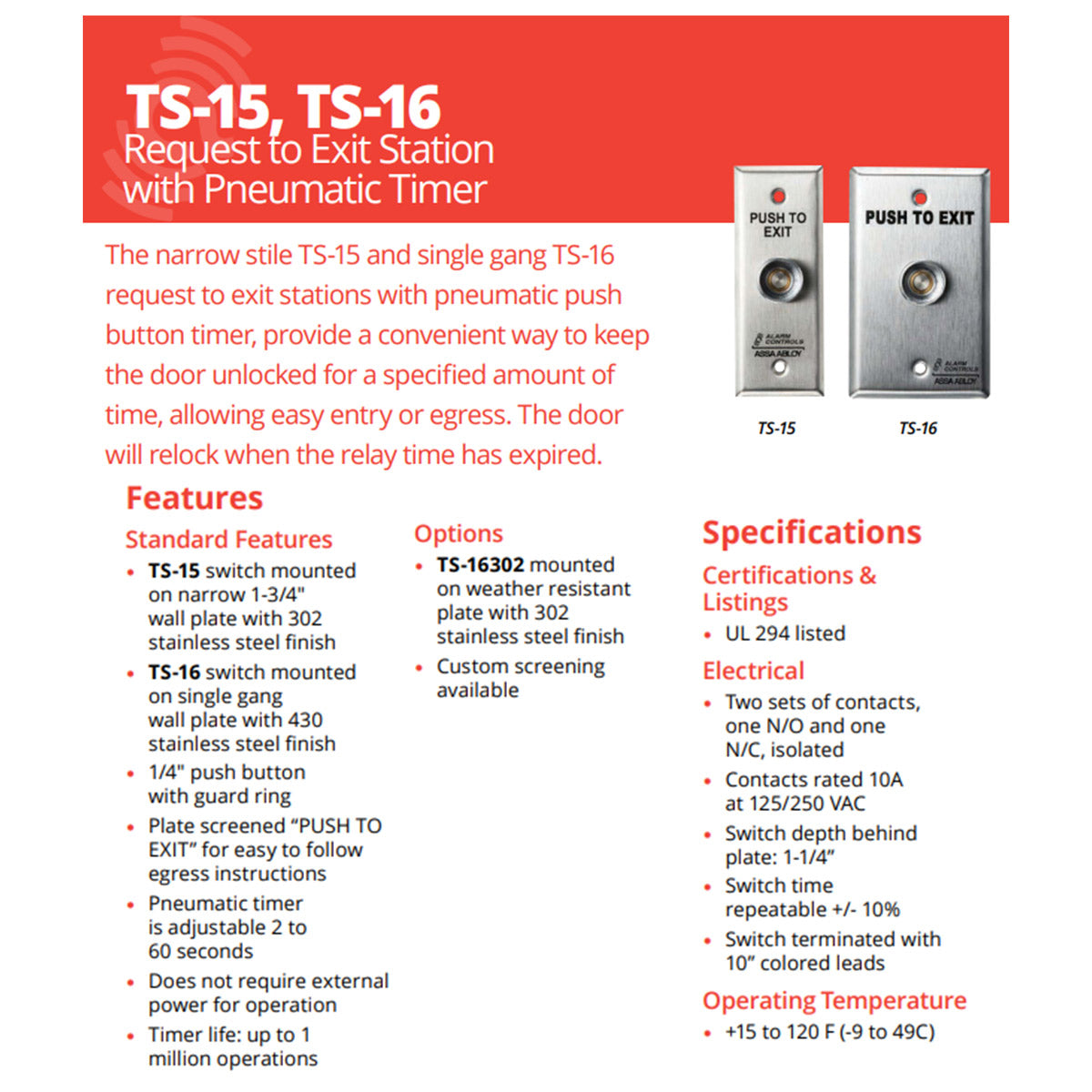

Specifications

Certifications & Listings

• UL 294 Listed

Electrical

• Two isolated contact sets:
  • One Normally Open (N/O)
  • One Normally Closed (N/C)
• Contact Rating: 10A at 125/250 VAC
• Switch Depth Behind Plate: 1-1/4"
• Timing Accuracy: ±10% repeatability
• Wiring: 10" colored lead wires

Timer

• Pneumatic timer
• Adjustable delay: 2 to 60 seconds
• Requires no external power
• Rated for up to 1 million operations

Operating Temperature

• +15°F to 120°F (-9°C to 49°C)

Ideal Applications

The TS-15 and TS-16 are ideal for access-controlled openings where a reliable timed unlock function is needed, including:

• Commercial office buildings
• Retail stores
• Schools and universities
• Healthcare facilities
• Industrial buildings
• Aluminum storefront doors
• Interior access control systems

Why Choose the Alarm Controls TS-15 & TS-16?

Designed for durability and dependable performance, the TS-15 and TS-16 combine a mechanical pneumatic timer with rugged stainless steel construction to provide a simple, maintenance-friendly solution for timed door release. With no external power required, UL 294 certification, and a timer rated for up to one million cycles, these request-to-exit stations are an excellent choice for reliable commercial access control installations.
