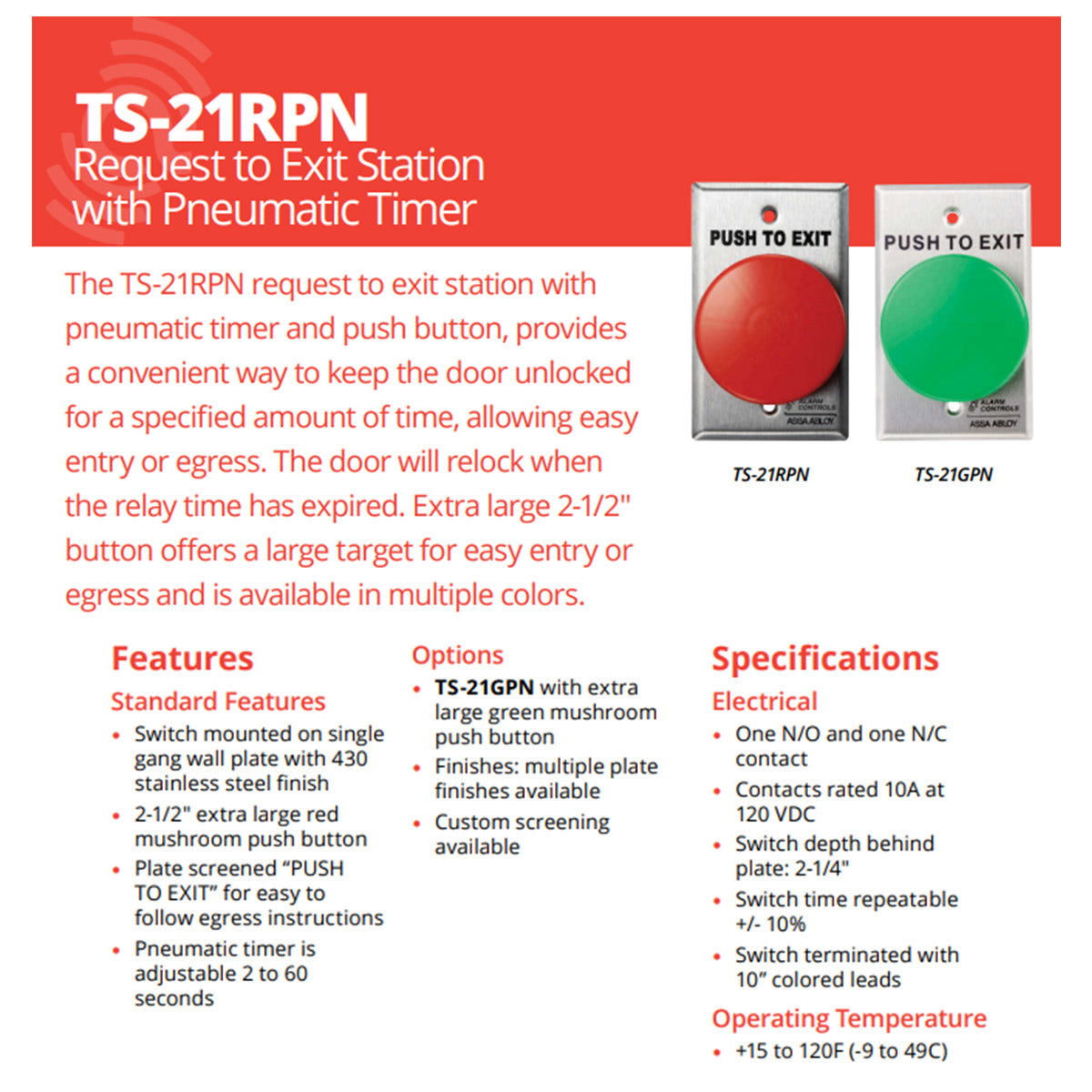

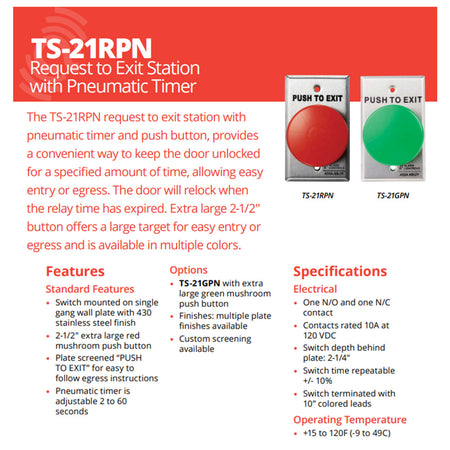

Alarm Controls TS-21RPN Request to Exit Station with Pneumatic Timer

SKU: TS-21RPN
$377.00

Alarm Controls TS-21RPN Request to Exit Station with Pneumatic Timer

The Alarm Controls TS-21RPN Request to Exit Station with Pneumatic Timer is a reliable and easy-to-use exit control solution designed for access control systems requiring a timed door release. Featuring an extra-large 2-1/2" red mushroom push button and an adjustable pneumatic timer, the TS-21RPN temporarily unlocks the door for a preset period, allowing safe and convenient entry or egress before automatically relocking.

Built on a durable 430 stainless steel single-gang wall plate, the station is clearly labeled "PUSH TO EXIT" for intuitive operation. The pneumatic timer is adjustable from 2 to 60 seconds, making it ideal for commercial buildings, healthcare facilities, schools, offices, warehouses, and other controlled access applications where a reliable timed exit is required.

Key Features

  • Extra-large 2-1/2" red mushroom push button for easy activation
  • Built-in adjustable pneumatic timer (2–60 seconds)
  • Automatically relocks the door after the preset timer expires
  • Durable 430 stainless steel single-gang wall plate
  • Clearly marked "PUSH TO EXIT" for simple operation
  • Ideal for access control and delayed exit applications
  • Reliable mechanical pneumatic timing—no external timer required
  • Suitable for commercial, institutional, and industrial installations

Specifications

  • Contacts: One Normally Open (N/O) and one Normally Closed (N/C)
  • Contact Rating: 10A @ 120 VDC
  • Timer Range: Adjustable from 2 to 60 seconds
  • Switch Depth Behind Plate: 2-1/4"
  • Timer Repeatability: ±10%
  • Wiring: 10" color-coded leads
  • Operating Temperature: +15°F to 120°F (-9°C to 49°C)

Available Options

  • TS-21GPN – Extra-large green mushroom push button
  • Multiple architectural plate finishes available
  • Custom plate screening available upon request

Ideal Applications

  • Access control systems
  • Commercial office buildings
  • Healthcare facilities
  • Educational campuses
  • Government buildings
  • Warehouses and industrial facilities
  • Controlled entry and exit doors

The Alarm Controls TS-21RPN provides dependable timed door release with the simplicity of a pneumatic timer and the visibility of an oversized mushroom push button, making it an excellent choice for facilities requiring safe, convenient, and controlled egress.
