Alarm Controls TS-2T Request to Exit Station with Electronic Timer

SKU: TS-2T
$131.30

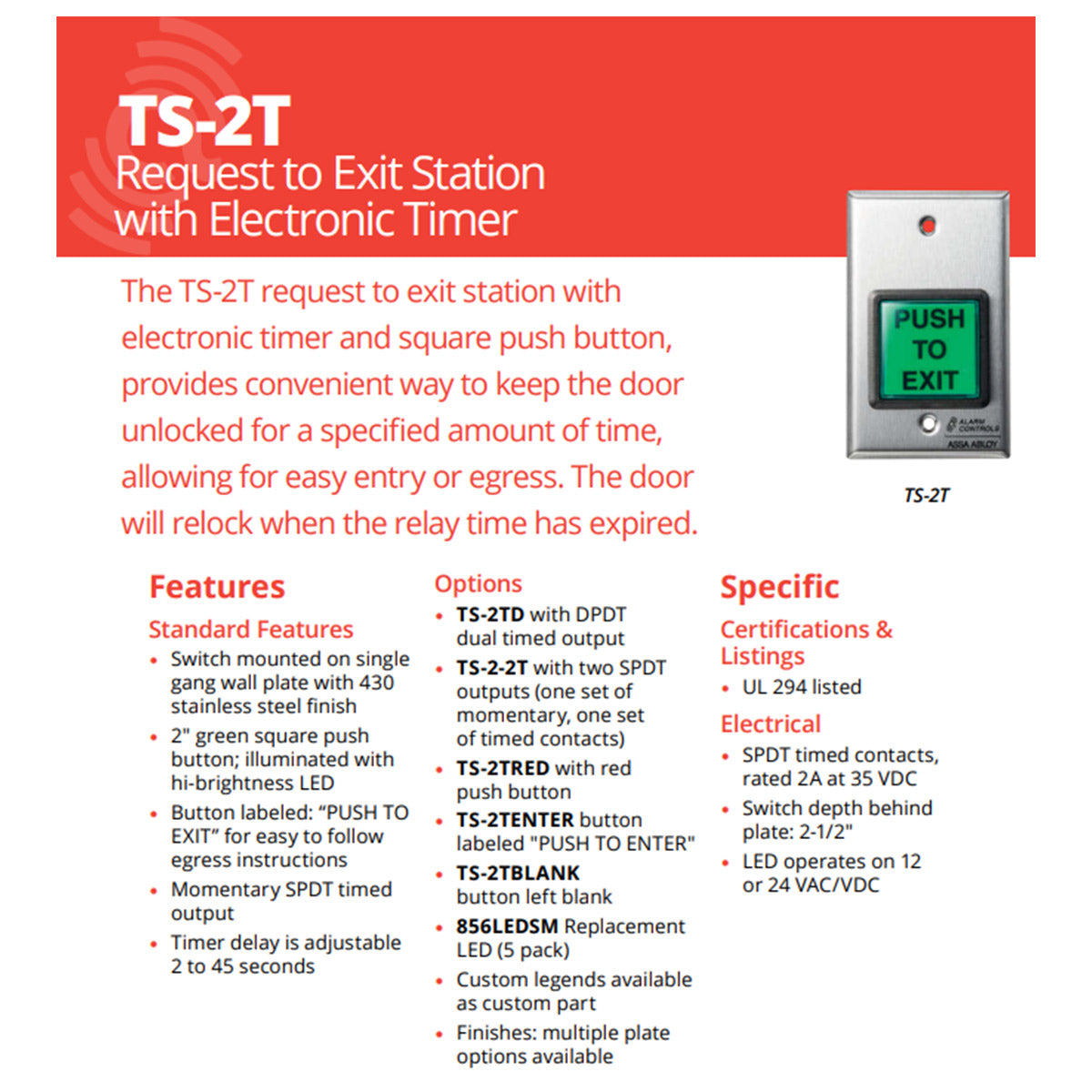

TS-2T Request to Exit Station with Electronic Timer

The TS-2T Request to Exit Station with Electronic Timer provides a simple and reliable solution for controlling door release timing in access control systems. Designed with an illuminated 2" green square push button and an adjustable electronic timer, the TS-2T keeps the door unlocked for a preset period (2–45 seconds), allowing users to exit or enter conveniently before automatically relocking the door.

Ideal for commercial buildings, offices, healthcare facilities, schools, warehouses, and other secured environments, the TS-2T combines durability, ease of use, and flexible timing control in a single-gang stainless steel wall plate.

Key Features

  • Adjustable electronic timer with 2 to 45 second delay
  • Illuminated 2" green square push button with high-brightness LED
  • Clearly labeled "PUSH TO EXIT" for intuitive operation
  • Durable 430 stainless steel single-gang wall plate
  • Momentary SPDT timed output
  • Automatic door relocking after the timer expires
  • Compatible with 12 or 24 VAC/VDC LED power
  • UL 294 Listed for access control applications

Available Options

Customize the TS-2T to fit your application:

  • TS-2TD – DPDT dual timed output
  • TS-2-2T – Two SPDT outputs (one momentary, one timed)
  • TS-2TRED – Red illuminated push button
  • TS-2TENTER – Button labeled "PUSH TO ENTER"
  • TS-2TBLANK – Blank push button without legend
  • 856LEDSM – Replacement LED (5-pack)
  • Custom button legends available
  • Multiple wall plate finish options

Specifications

Certifications

  • UL 294 Listed

Electrical

  • SPDT timed contacts
  • Contact Rating: 2A @ 35 VDC
  • LED Operating Voltage: 12 or 24 VAC/VDC
  • Switch Depth Behind Plate: 2-1/2"

Ideal Applications

The TS-2T is perfect for:

  • Commercial office buildings
  • Access-controlled entrances
  • Healthcare facilities
  • Educational institutions
  • Retail stores
  • Industrial and warehouse facilities
  • Secure interior door applications

Why Choose the TS-2T?

Unlike standard request-to-exit buttons, the TS-2T features an integrated adjustable electronic timer that automatically controls how long a door remains unlocked. This eliminates the need for external timing devices in many installations while providing reliable, user-friendly operation and enhanced convenience for controlled access systems.
