Alarm Controls TS-3 Request to Exit Station

SKU: TS-3
$73.45

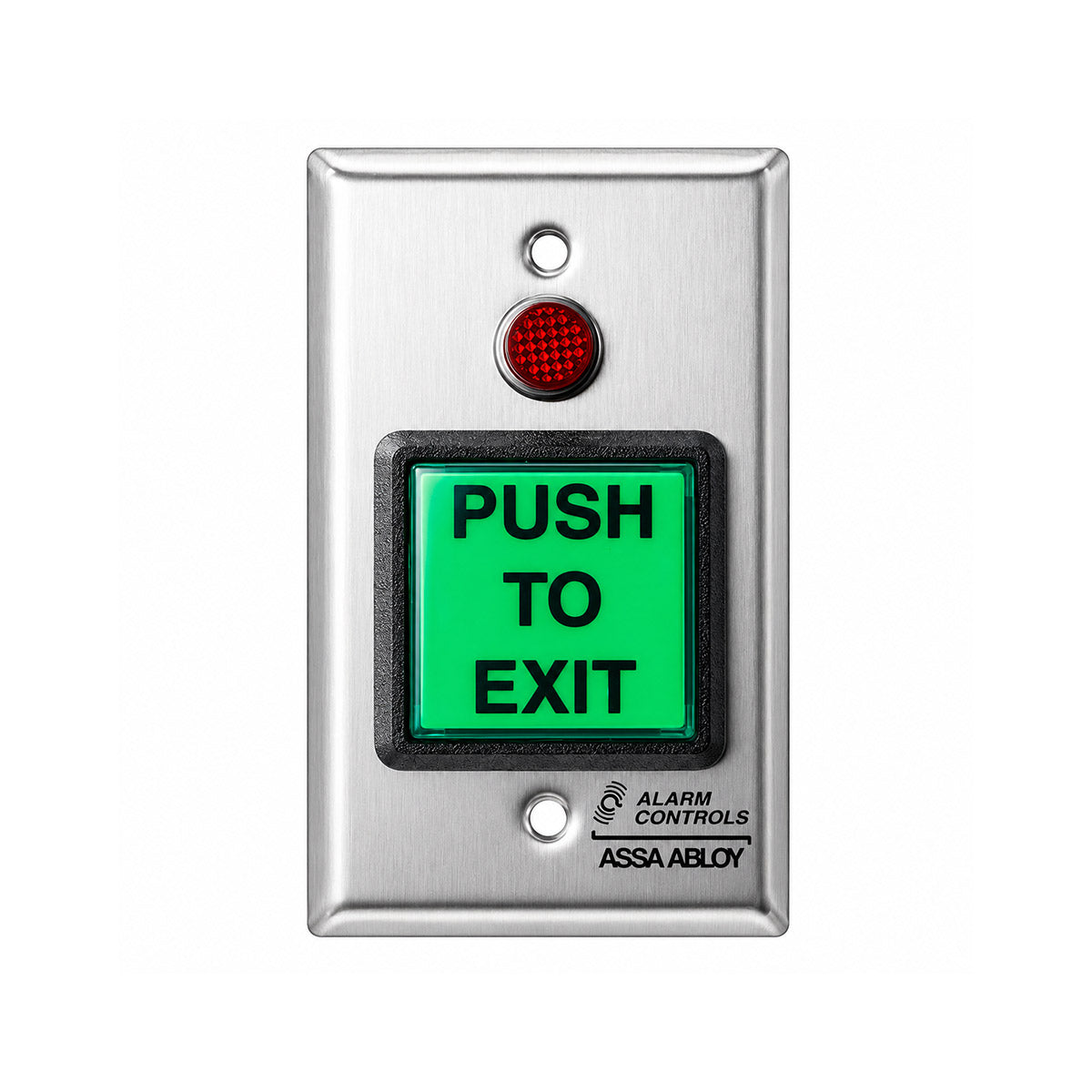

TS-3 Request to Exit Station

The TS-3 Request to Exit Station provides a reliable and convenient solution for controlled door egress in access control systems. Featuring a large illuminated 2" green square push button and a bright red LED status indicator, the TS-3 offers clear visual confirmation of system status while enabling safe and efficient door release.

Built with a durable 430 stainless steel single-gang wall plate, the TS-3 is ideal for commercial buildings, offices, healthcare facilities, schools, and other secured environments where dependable request-to-exit operation is required.

Key Features

  • Large 2" illuminated green square push button with high-brightness LED
  • Clearly labeled "PUSH TO EXIT" for intuitive operation
  • Bright 1/2" red LED status indicator for at-a-glance system monitoring
  • Durable 430 stainless steel single-gang wall plate
  • Momentary SPDT action switch
  • LED operates on 12 or 24 VAC/VDC
  • Factory-wired with 10" color-coded leads for easy installation
  • UL 294 Listed for access control applications

Available Options

Customize the TS-3 to meet your installation requirements:

  • TS-3-2 – Momentary DPDT output

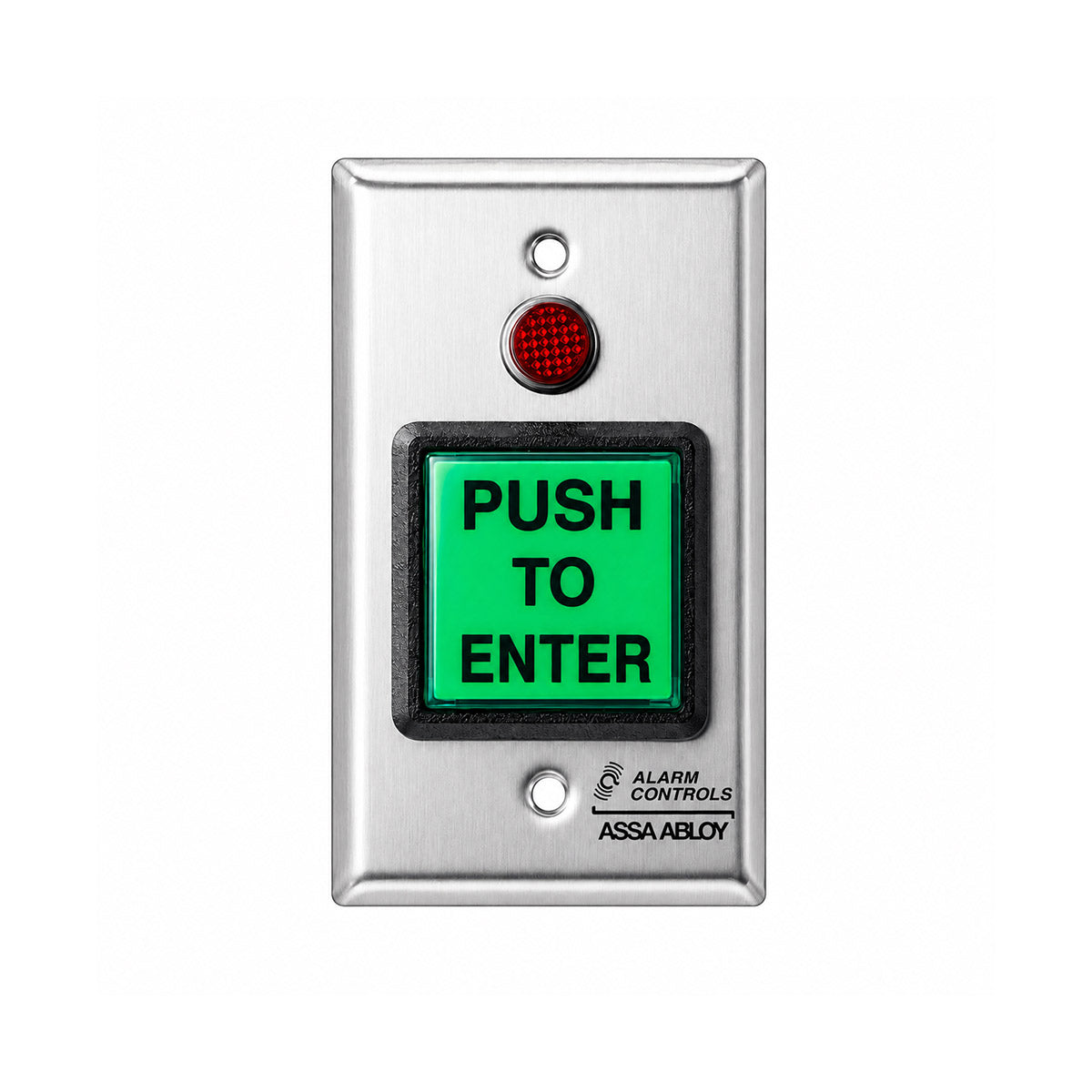

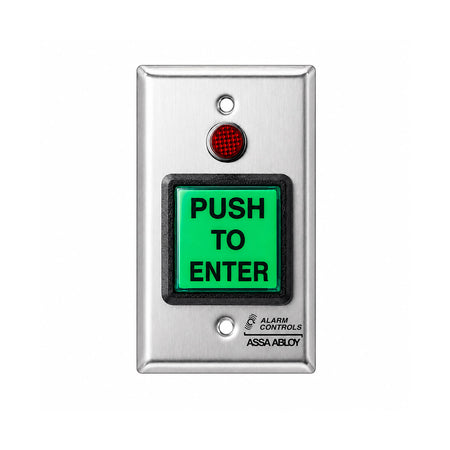

  • TS-3ENTER – Button labeled "PUSH TO ENTER"

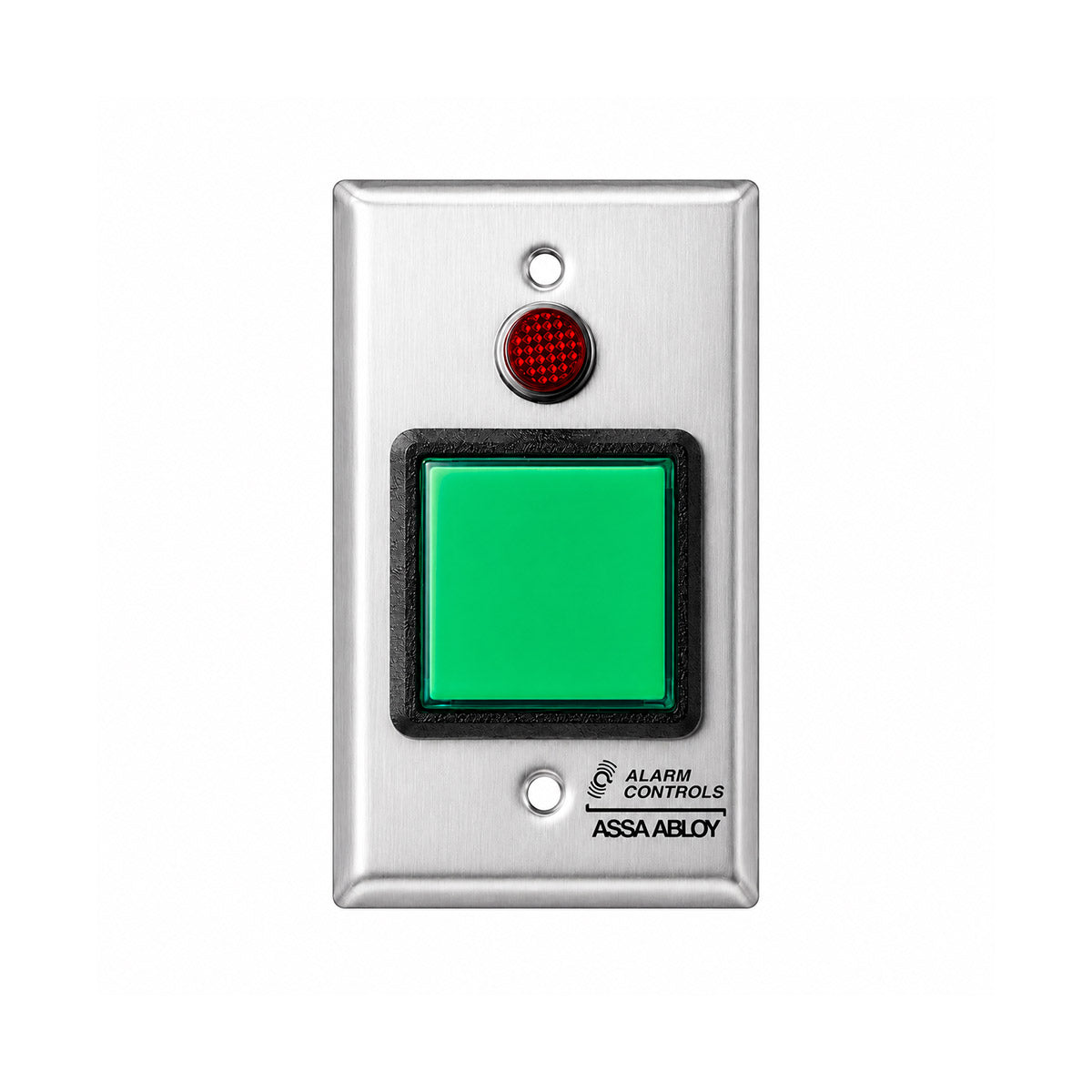

  • TS-3BLANK – Blank push button without legend
  • Custom button legends available
  • Multiple wall plate finish options

Specifications

Certifications

  • UL 294 Listed

Electrical

  • SPDT contacts
  • Contact Rating: 10A @ 35 VDC or 120 VAC
  • LED Operating Voltage: 12 or 24 VAC/VDC
  • Switch Depth Behind Plate: 1-1/2"
  • Factory-terminated with 10" color-coded leads

Ideal Applications

The TS-3 is designed for a wide range of access control installations, including:

  • Commercial office buildings
  • Healthcare facilities
  • Educational institutions
  • Government buildings
  • Retail stores
  • Industrial and warehouse facilities
  • Secure interior and perimeter doors

Why Choose the TS-3?

The TS-3 combines an illuminated exit button with a dedicated LED status indicator, allowing users and security personnel to quickly verify door or lock status. Its rugged stainless steel construction, high-current SPDT contacts, and UL 294 certification make it a dependable choice for professional access control and request-to-exit applications.
