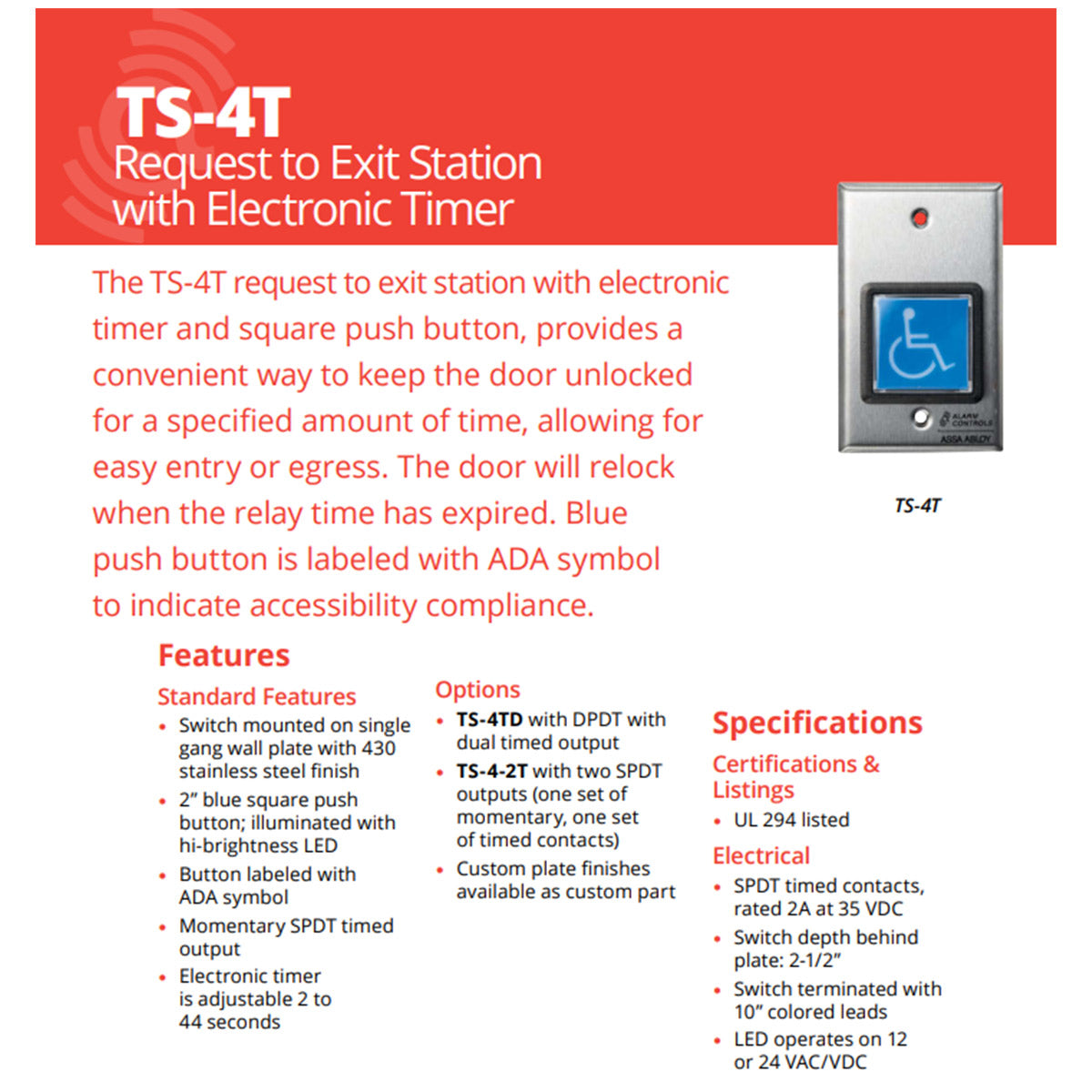

TS-4T Request to Exit Station with Electronic Timer

The TS-4T Request to Exit Station with Electronic Timer is a reliable and ADA-compliant access control solution designed to provide controlled entry or egress. Featuring an illuminated 2" blue square push button with the ADA accessibility symbol, the TS-4T allows doors to remain unlocked for a programmable period before automatically relocking. The built-in adjustable electronic timer makes it ideal for commercial buildings, healthcare facilities, schools, offices, and other applications requiring temporary unlocked access.

Constructed with a durable 430 stainless steel single-gang wall plate, the TS-4T offers long-lasting performance while its illuminated LED ensures excellent visibility in low-light environments.

Key Features

• Adjustable electronic timer from 2 to 44 seconds
• Large 2" illuminated blue square push button
• ADA accessibility symbol for compliant operation
• Durable 430 stainless steel single-gang wall plate
• Momentary SPDT timed output
• High-brightness LED illumination
• Easy installation with 10" color-coded leads
• Compatible with 12 or 24 VAC/VDC LED operation
• UL 294 Listed for access control applications

Specifications

Certifications

• UL 294 Listed

Electrical

• SPDT timed contacts
• Contact Rating: 2A @ 35 VDC
• Adjustable timer: 2–44 seconds
• LED Voltage: 12 or 24 VAC/VDC
• Switch Depth Behind Plate: 2-1/2"
• Pre-wired with 10" colored leads

Available Options

• TS-4TD – DPDT dual timed output
• TS-4-2T – Two SPDT outputs (one momentary and one timed)
• Custom wall plate finishes available upon request

Ideal Applications

The TS-4T is perfect for:

• Access control systems
• ADA-compliant entrances
• Commercial office buildings
• Healthcare facilities
• Educational institutions
• Retail stores
• Government buildings
• Controlled entry and exit doors
