Alarm Controls TS-60 Request to Exit Station with Pneumatic Timer

SKU: TS-60
$0.00

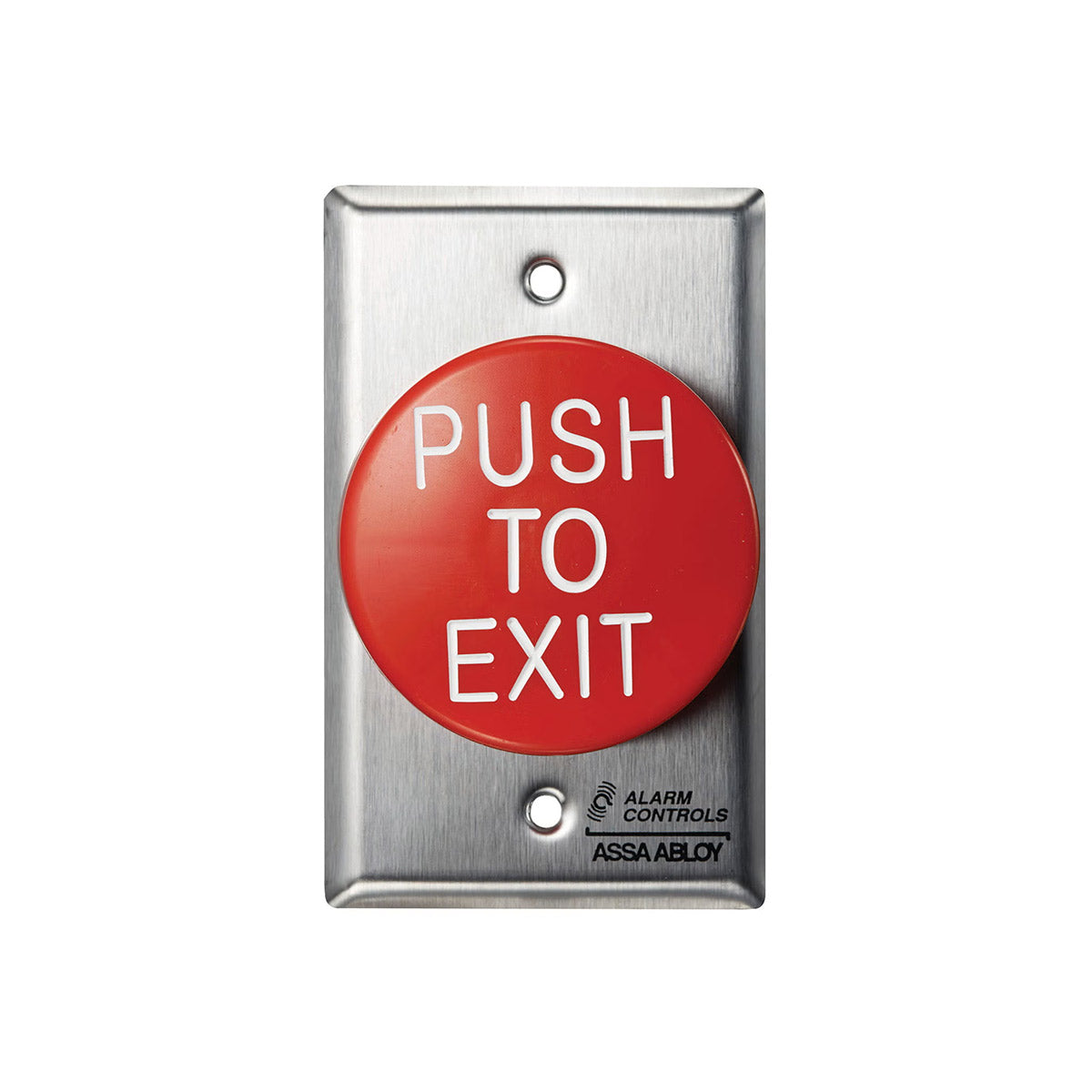

Alarm Controls TS-60 Request to Exit Station with Pneumatic Timer

Keep doors unlocked for a preset period with the Alarm Controls TS-60 Request to Exit Station. Designed for access control applications, the TS-60 features an extra-large 2-1/2" red mushroom push button with "PUSH TO EXIT" engraving for clear, easy-to-follow egress instructions. Its adjustable pneumatic timer allows the door to remain unlocked from 2 to 60 seconds before automatically relocking, making it ideal for commercial buildings, offices, healthcare facilities, schools, and other controlled-access environments.

Constructed with a durable 430 stainless steel single gang wall plate, the TS-60 is built for reliable everyday operation. An optional TS-60302 model is available with a 302 stainless steel weather-resistant plate for applications requiring additional environmental protection.

Key Features

  • Adjustable pneumatic timer with 2 to 60 second relay delay
  • Extra-large 2-1/2" red mushroom push button for fast, easy activation
  • Button engraved "PUSH TO EXIT" in white for clear exit identification
  • Durable 430 stainless steel single gang wall plate
  • Automatically relocks the door when the timer expires
  • Ideal for access control and request-to-exit applications
  • Optional TS-60302 weather-resistant model with 302 stainless steel faceplate

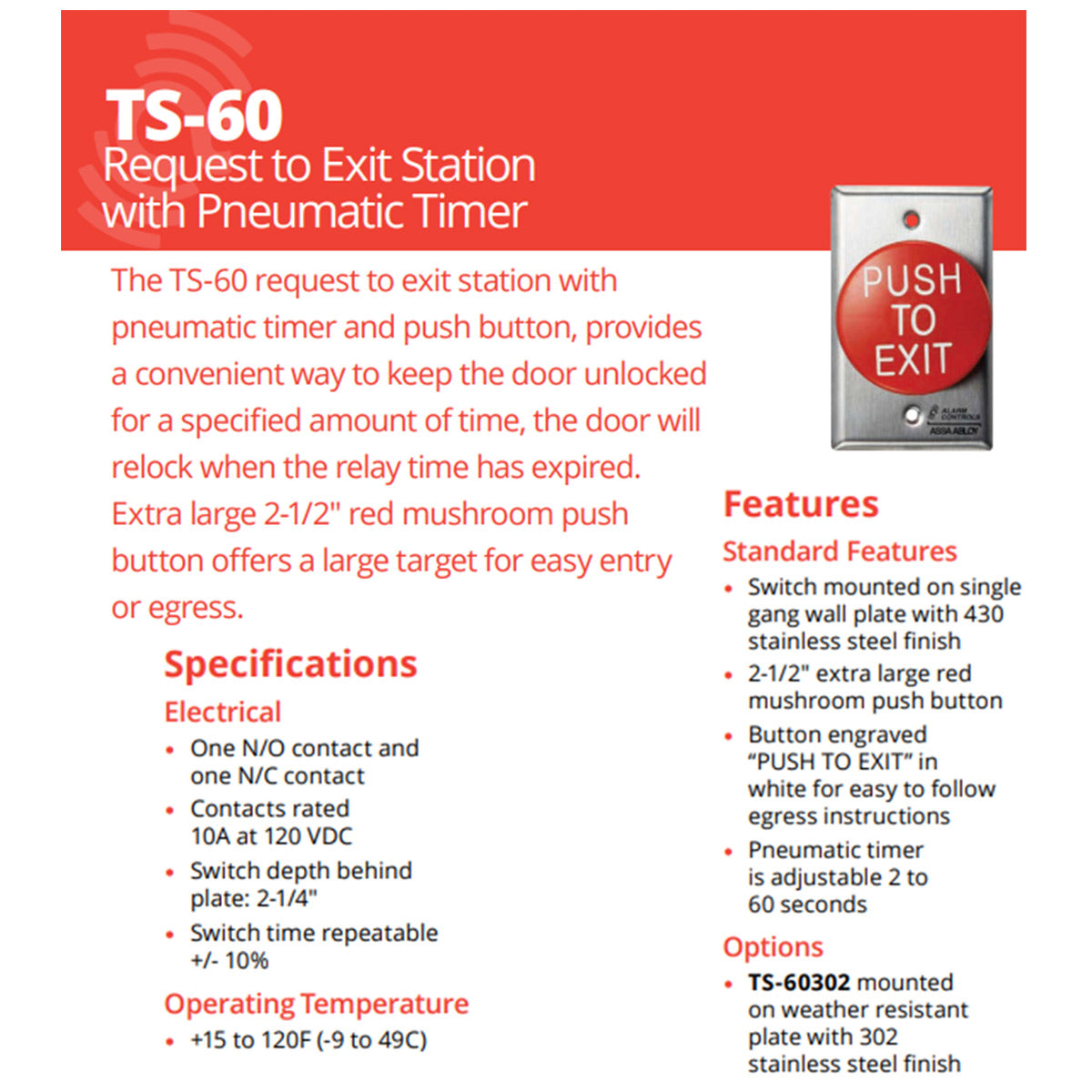

Specifications

Electrical

  • Contact Configuration: 1 Normally Open (N/O), 1 Normally Closed (N/C)
  • Contact Rating: 10A at 120 VDC
  • Switch Depth Behind Plate: 2-1/4"
  • Timer Accuracy: ±10% repeatability

Timer

  • Pneumatic Timer Adjustment: 2–60 seconds

Operating Temperature

  • +15°F to 120°F (-9°C to 49°C)

Construction

  • Wall Plate: 430 Stainless Steel
  • Optional Weather-Resistant Plate: 302 Stainless Steel (TS-60302)
  • Button Size: 2-1/2" Red Mushroom
  • Mounting: Single Gang

Ideal Applications

  • Commercial Buildings
  • Office Access Control Systems
  • Healthcare Facilities
  • Educational Institutions
  • Retail Stores
  • Industrial Facilities
  • Controlled Entry & Exit Doors
