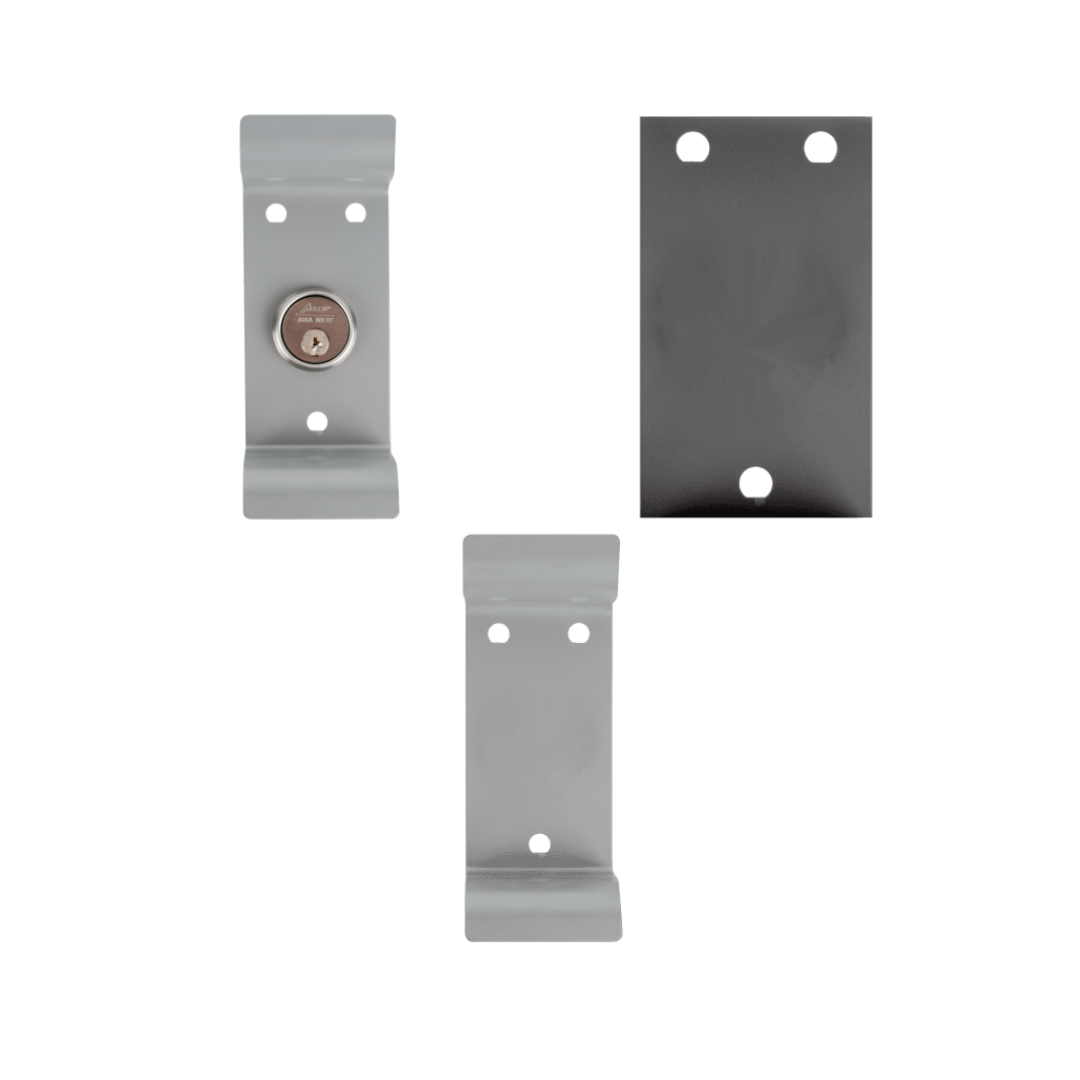

Plate Pull for Exit Devices S1150, S1250, ED910, & PEC910 Series Exit Trim
The Arrow SF Series Plate Trims are designed to provide secure and reliable exterior access control when paired with commercial exit devices. Built for compatibility with Arrow ED910, S1150, and S1250 Series exit devices, these trims deliver durable performance for high-traffic commercial environments such as schools, offices, healthcare facilities, and retail spaces.
Measuring 7-5/8" high by 3" wide, the SF Series trims offer a clean, professional appearance while supporting multiple access control functions to meet varying security requirements. From simple passage applications to keyed entry control, the SF Series provides versatile solutions for commercial door hardware systems.
Available Functions
-

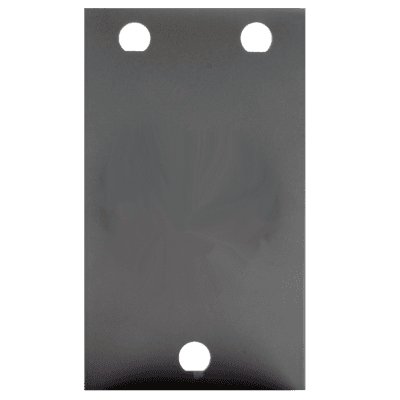

SF01 – Blank Plate
Passage function with always-operative trim. Ideal for openings where no key locking function is required. -

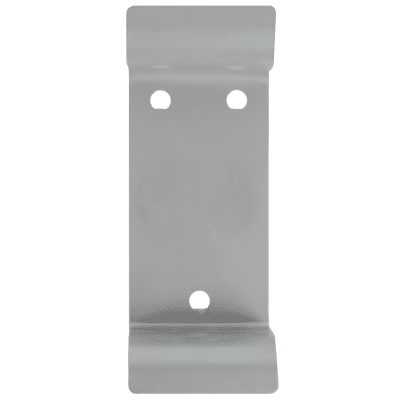

SF02 – Dummy Pull
Designed for push/pull operation only. Exterior trim does not retract the latch and will not open the door from the outside. -
SF03 – Storeroom Pull
Key retracts the latchbolt for authorized entry. Key is removable only when locked for enhanced security. -

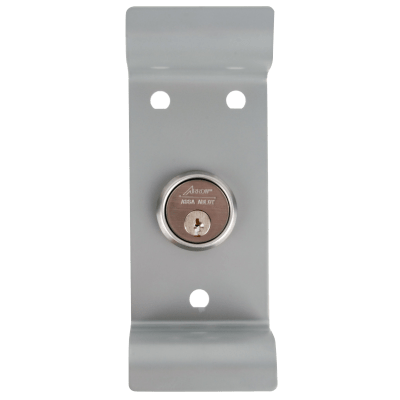

SF12 – Nightlatch Pull
Key retracts the latchbolt without automatic relocking, allowing controlled temporary access when needed.
Features
- Compatible with Arrow ED910, S1150, and S1250 Series exit devices
- Durable commercial-grade construction
- Multiple trim functions available for varying security needs
- Clean plate trim design for professional installations
- Ideal for schools, offices, retail, and institutional facilities
- Easy integration with commercial panic and exit hardware systems
Applications
The Arrow SF Series is ideal for commercial buildings requiring dependable exterior trim solutions for panic and fire exit devices. Suitable for new construction, retrofit projects, and access-controlled openings.
