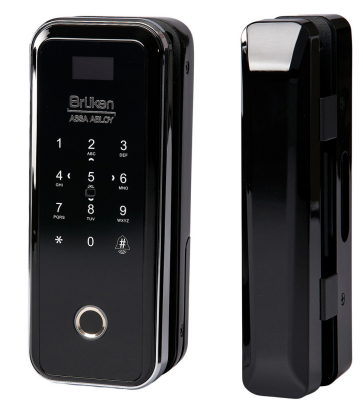

Assa Abloy DL-GS3550 Digital Glass Door Lock

SKU: DL-GS3550
$681.00

FAQ

  • Battery Operated - (2) AA Batteries with a 50,000 cycle tested lifespan
  • The door locks automatically when closed.
  • It can be programmed to not lock automatically, and then can be manually locked with the thumbturn.

Features

  • Easy installation requires no modification to glass

  • Sleek touch screen interface

  • Compatible with interior single or pairs of doors

  • Access control via card reader, keypad or fingerprint.

  • Visible operation status

  • Low voltage warning: display screen shows battery voltage in real time, prompting user to change batteries

  • Includes 2 Card Keys

  • Visible operation status

Technical Specifications

Materials

  • Front body: Plastic

  • Back body: Aluminum, plastic

System

  • Digital Touch Lock: DL-GS3550

  • Electrical: 4 AA Alkaline batteries

  • Door Thickness: 3 /8" to 1 /2" thick glass doors; indoor applications only

  • Twin Bolt Dimensions: – 7 /16" D with 11 /8" throw

  • Operating Temperature: +5°F to +150°F (-25°C to +65°C)

  • Dimensions: – 23 /4" D x 31 /16" W x 77 /8"H

  • Strike: Surface mounted strike plate for double glass doors provided

  • Finish Options: Black
