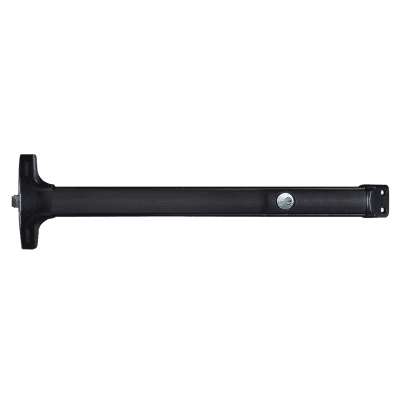

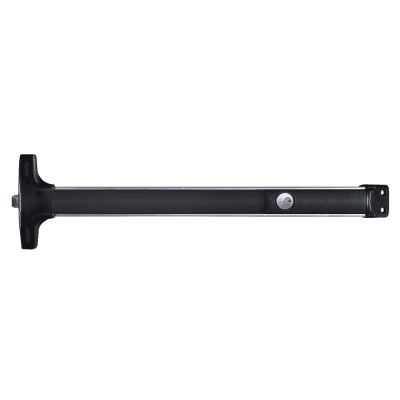

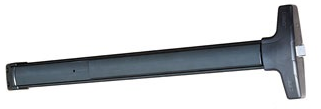

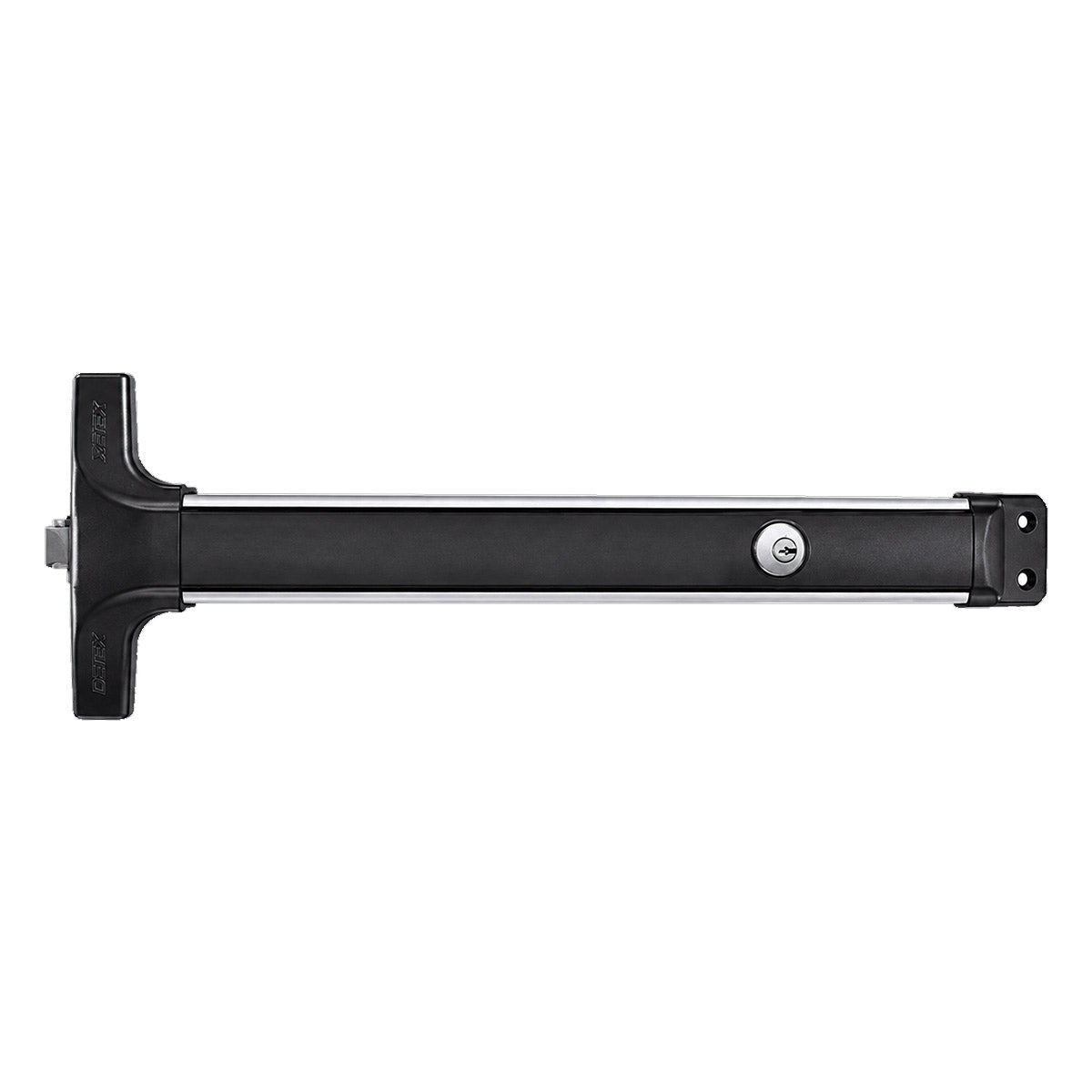

Detex V40 Cylinder Dogging Rim Panic Exit Device
The Detex V40 Cylinder Dogging Rim Panic Exit Device is a durable, secure, and economical solution for commercial doors requiring dependable panic and fire exit hardware. Part of the Detex V40 Series, this rim exit device is designed for use on a wide variety of single and double doors with mullions and is engineered for reliable performance in demanding commercial environments.
The V40 features a patented mounting plate and strike locator system that makes installation faster and more accurate while reducing door preparation. Its modular design accommodates a wide range of outside trims and functions, making it easy to configure the device for different door and access requirements.
With a stainless steel 3/4" deadlocking Pullman-style latch bolt, heavy-duty aluminum rail extrusion, high-impact ABS components, and anodized surfaces, the V40 provides long-lasting durability and enhanced security. The device can withstand over 1,400 lbs. of static pull force for added protection against forced entry.
US Lock Supply stocks the Detex V40 in all available options.
Watch the Detex V40 Installation Video
Key Benefits
- Durable & Secure – Built for demanding commercial applications with heavy-duty materials and a robust design.
- Economical Grade Hardware – Provides dependable panic exit protection at a competitive price.
- Fast Installation – Patented mounting plate and strike locator system simplifies installation and ensures accurate alignment.
- Minimal Door Preparation – Designed to cover a 161 door preparation, helping save installation time and labor.
- Versatile Door Compatibility – Suitable for a variety of single and double doors with mullions.
- Flexible Trim Options – Modular construction accepts a variety of outside trims and functions.
- Easy Trim Replacement – Outside trims can be changed or rekeyed without removing the exit device from the door.
- Enhanced Security – Withstands more than 1,400 lbs. of static pull force.
- Attractive Design – Clean, durable styling complements a wide range of commercial door applications.
Product Features
- Cylinder dogging rim exit device
- Panic and fire exit hardware
- Patented mounting plate and strike locator
- Covers a 161 door preparation
- Stainless steel 3/4" deadlocking Pullman-type latch bolt
- Non-handed design
- Field-sizeable
- Heavy-duty angled end cap
- Heavy-duty ribbed aluminum rail extrusion
- High-impact ABS components
- Durable anodized surfaces
- Withstands over 1,400 lbs. of static pull force
- Modular design accepts multiple outside trims and functions
- Standard and narrow-stile pull trims available
Cylinder Dogging
The CD (Cylinder Dogging) option provides convenient mechanical dogging for applications where the exit device needs to remain retracted during periods of controlled access or high traffic.
Mechanical Options
| Option | Description |
|---|---|
| CD | Cylinder Dogging |
| 36 | Fits 36" Door Width – Standard |
| 48 | Fits 48" Door Width |
| 99 | Surface Strike – Standard |
Ideal Applications
The Detex V40 Cylinder Dogging Rim Exit Device is well suited for:
- Commercial buildings
- Retail stores
- Office buildings
- Schools and institutions
- Warehouses
- Industrial facilities
- Single doors
- Double doors with mullions
- High-traffic commercial entrances and exits
- Applications requiring reliable panic exit hardware
Dependable Panic Hardware for Commercial Doors
The Detex V40 Cylinder Dogging Rim Panic Exit Device combines durable construction, enhanced security, and installation flexibility in an economical package. Its non-handed design, field-sizeable rail, modular trim compatibility, cylinder dogging, and patented installation system make the V40 an excellent choice for contractors, locksmiths, facility managers, and commercial door professionals.
