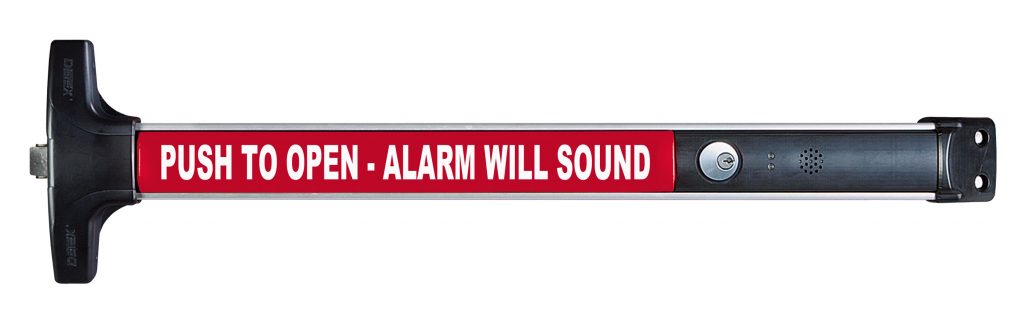

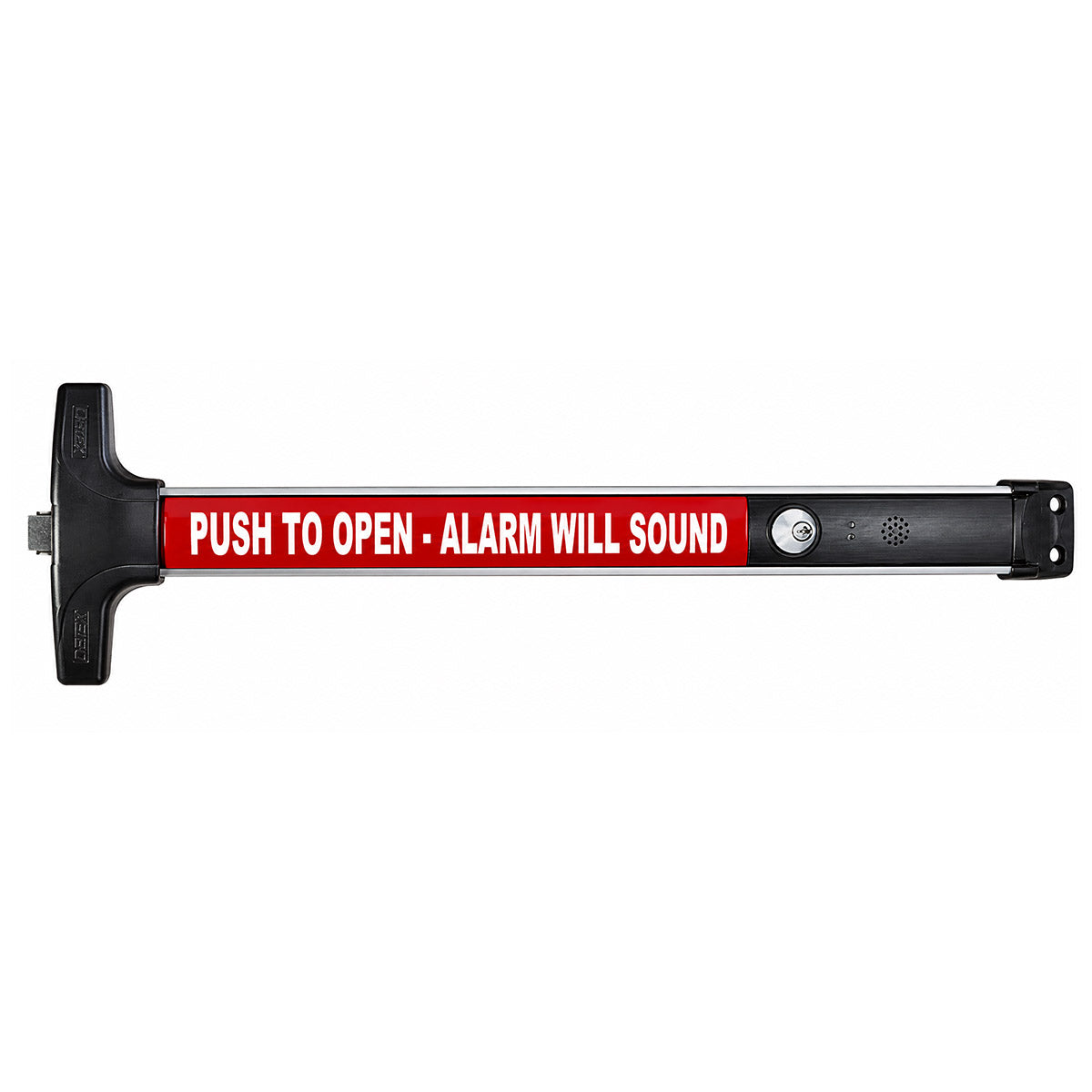

Detex V40 EA Hardwired Alarmed Rim Exit Device
The Detex V40 EA Alarmed Rim Exit Device is designed for commercial doors requiring a hardwired, alarmed panic exit device with remote signaling and bypass capabilities. It combines dependable panic hardware with integrated alarm electronics to provide enhanced security while maintaining safe and code-compliant emergency egress.
When the exit device is activated, the approximately 100 dB alarm sounds to alert management of an unauthorized exit. The remote signal output can activate a remote horn, strobe, or other compatible security device, while the remote bypass input allows authorized personnel to temporarily silence or bypass the alarm using a push button, keypad, card reader, or other access control system.
The V40 EA also incorporates electric switching that monitors the pushpad, providing reliable monitoring and enhanced security for applications where unauthorized exit detection is important.
Key Benefits
- Hardwired Alarmed Exit Device – Designed for applications requiring continuous connection to an external power source.
- Approximately 100 dB Alarm – Provides an immediate audible warning when an unauthorized exit is attempted.
- Remote Signaling – Sends a signal to activate a remote horn, strobe, or other compatible security device.
- Remote Alarm Bypass – Allows authorized users to bypass the alarm through a remote button, keypad, card reader, or access control system.
- Pushpad Monitoring – Electric switching monitors the pushpad for enhanced security and exit monitoring.
- Battery Backup – Includes a 9V battery backup for added reliability.
- Durable Construction – Heavy-duty ribbed aluminum rail extrusion provides dependable performance in demanding commercial environments.
- Flexible Status Indication – Armed and disarmed status indication is field selectable.
- Security & Life Safety – Provides loss-prevention functionality without compromising emergency exit operation.
Product Features
- Alarmed panic exit device
- 12V or 24V AC/DC powered
- 9V battery backup
- Approximately 100 dB audible alarm
- Remote signal output
- Remote bypass input
- Heavy-duty ribbed aluminum rail extrusion
- Electric switching monitors the pushpad
- Single mortise cylinder provides arming and dogging
- Mortise cylinder sold separately
- Field-selectable armed/disarmed status indicator
- Designed for durable, attractive loss-prevention applications
Remote Signal & Bypass
The V40 EA provides additional flexibility for integrating the exit device into an existing security system.
Remote Signal: When the alarm is activated, a remote signal can be sent to operate a horn, strobe, or other compatible security device, allowing personnel to be notified from another location.
Remote Bypass: Authorized users can temporarily bypass the alarm using a remote push button, keypad, card reader, or other access control device. This makes the V40 EA well suited for controlled environments where authorized exits should not generate an alarm.
Ideal Applications
The Detex V40 EA is an excellent choice for:
- Retail stores
- Commercial buildings
- Warehouses
- Schools and institutions
- Office buildings
- Industrial facilities
- Security-sensitive areas
- Doors requiring remote alarm notification
- Applications integrating panic hardware with access control systems
Reliable Alarmed Panic Hardware for Enhanced Security
The Detex V40 EA Hardwired Alarmed Rim Exit Device provides a dependable combination of panic exit hardware, audible alarm protection, pushpad monitoring, remote signaling, and remote bypass. With 12V/24V AC/DC operation and 9V battery backup, it is a practical solution for commercial applications requiring enhanced unauthorized-exit detection while preserving safe emergency egress.
