Detex V40 Series Rim Exit Device
The Detex V40 Series Rim Exit Device delivers dependable security and durable performance at an economical price. Designed as Grade 1 panic and fire exit hardware, the V40 Series is suitable for a wide range of single and double-door applications with mullions.
Its patented mounting plate and strike locator system simplifies installation while helping ensure accurate alignment, saving valuable installation time and labor.
Key Features
- Grade 1 panic and fire exit hardware for reliable, long-term performance
- Available in wide or narrow stile configurations
- Heavy-duty ribbed aluminum rail extrusion provides added strength and durability
- Patented mounting plate and strike locator system for fast, accurate installation
- Outside trims can be changed or rekeyed without removing the device from the door
- Angled end cap helps deflect impact and reduce damage to the device
- Withstands over 1,400 lbs. of static pull force for enhanced security
- Designed for single and double doors with mullions
- Weatherized version available for demanding exterior applications
Available Options
Dogging Options
- CD – Cylinder Dogging
- HD – Hex Dogging (Standard)
- LD – Less Dogging
Door Width
- 36 – Fits doors up to 36" wide (Standard)
- 48 – Fits doors up to 48" wide
Stile Options
- Narrow stile version available for 2" narrow-stile glass doors – see V40xNS
Ratings
- F – 3-Hour Fire Rated
- H – Hurricane Rated
Strike Options
- 99 – Surface Strike (Standard)
- 98 – Semi-Mortise Strike
Rail Finishes
- 628 – Base Rail Extrusion (Standard)
- 711 – Base Rail Extrusion
Power Transfer & Conduit Options
- FC3 – Flexible 3' Conduit Kit, mounts to device end cap
- FC10 – Flexible 10' Conduit Kit, mounts to device end cap
- PT5 – Concealed Mortise Mount Power Transfer
- EH8 – Five-Knuckle Energy Transfer Hinge with 8 wires
Weatherized Version
For applications exposed to the elements, the weatherized V40XW Series is also available.
Installation & Documentation

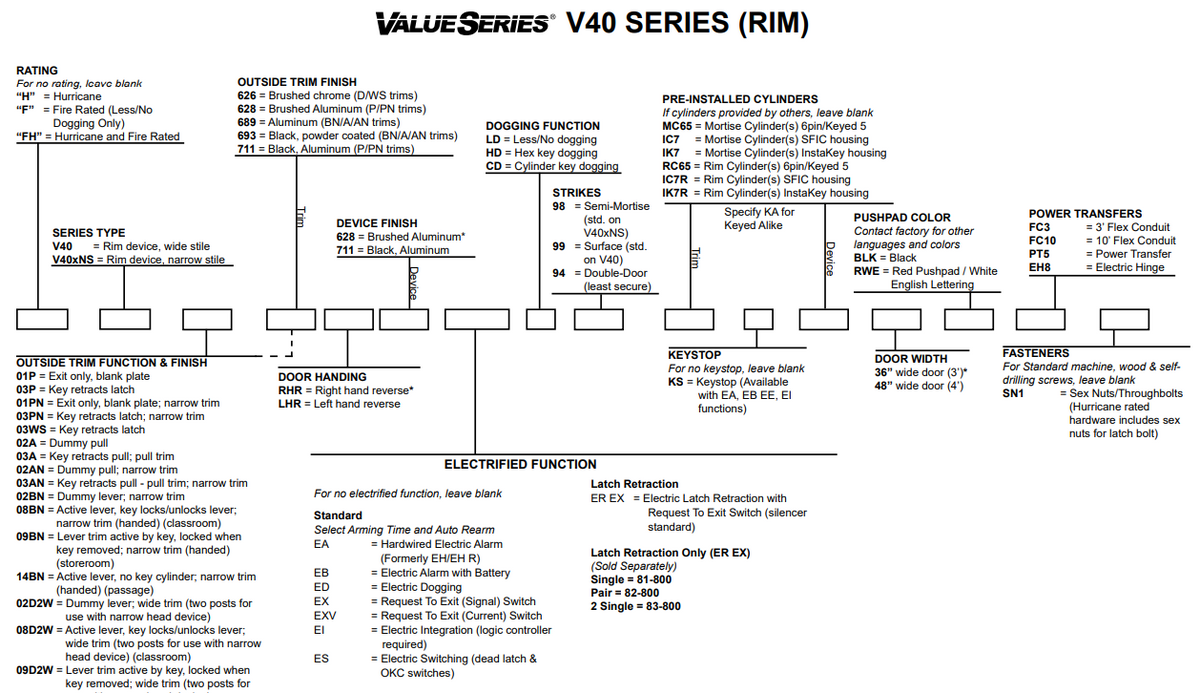

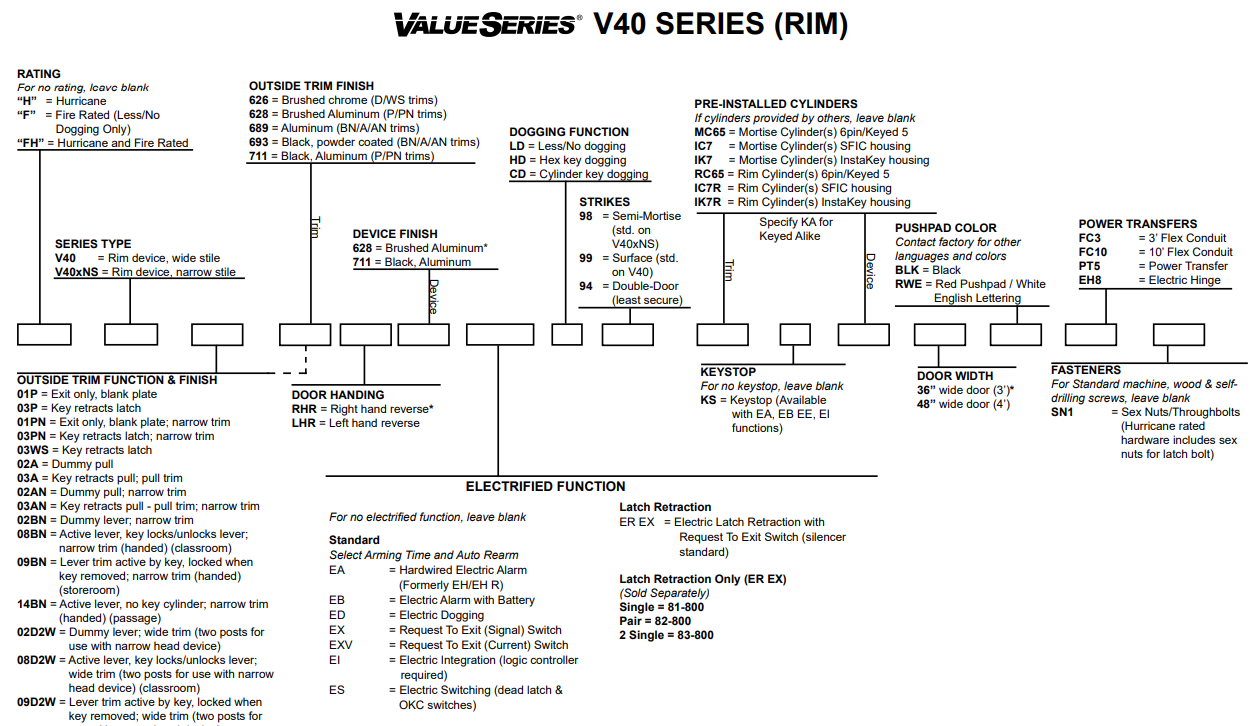

For complete configuration and mechanical options, refer to the V40 Series How To Order documentation and installation materials.
Installation Video: Available from Detex
Instructions Catalog: V40 Series Installation & Product Catalog
