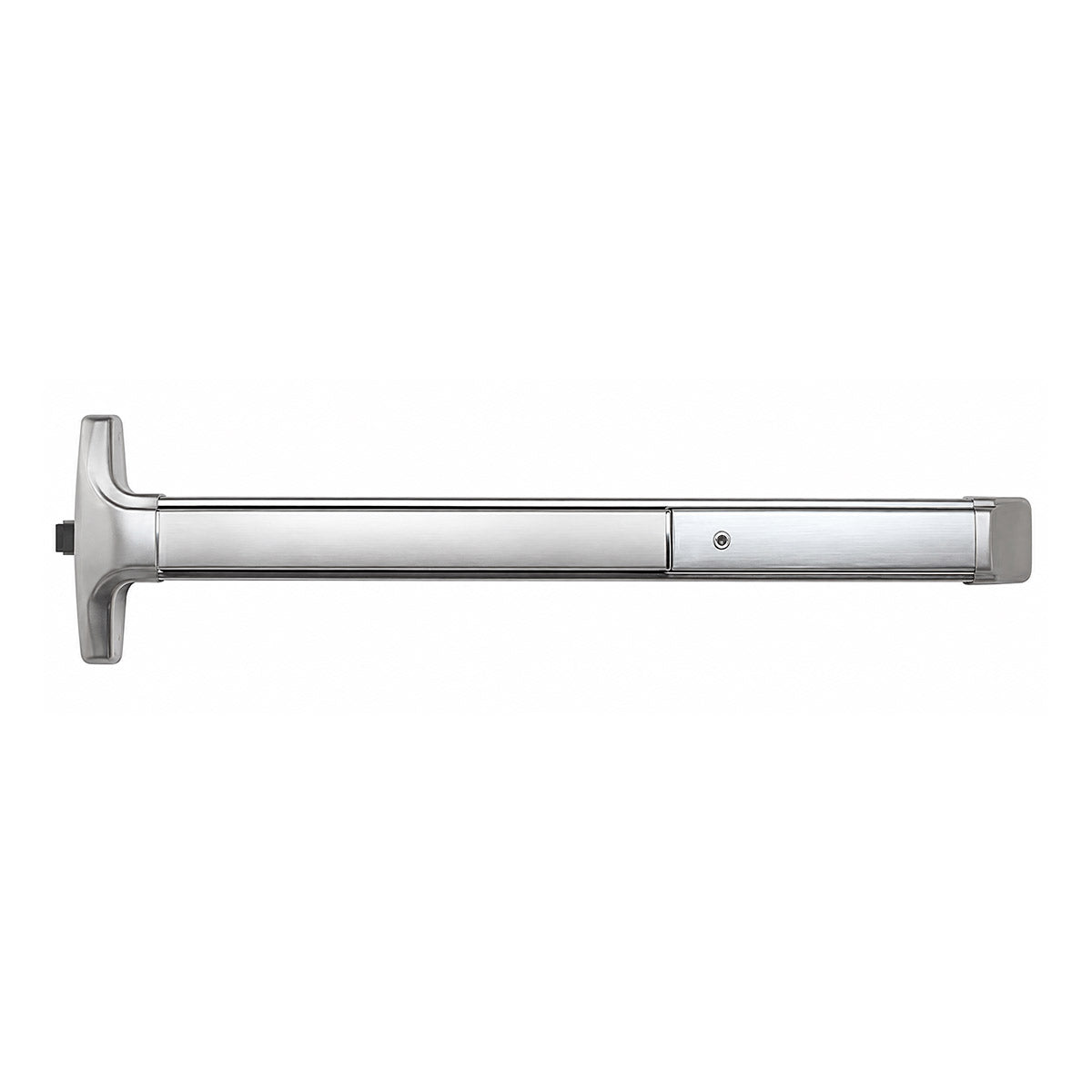

Detex V40 Series Rim Exit Device
The Detex V40 Series Rim Exit Device combines dependable security, durable construction, and economical performance. This Grade 1 panic and fire exit device is designed for a wide range of single- and double-door applications with mullions, making it a versatile choice for commercial, industrial, and institutional installations.
Featuring a patented mounting plate and strike locator system, the V40 Series makes panic hardware installation faster and more precise—helping save both time and installation costs.
Key Features
- Grade 1 panic and fire exit hardware
- Available for wide or narrow stile applications
- Heavy-duty ribbed aluminum rail extrusion for enhanced durability
- Patented mounting plate and strike locator system for fast, accurate installation
- Outside trims can be changed or rekeyed without removing the device from the door
- Angled end cap helps deflect impact and protect the device
- Withstands over 1,400 lbs. of static pull force for enhanced security
- Suitable for single and double doors with mullions
- Available in a weatherized version for exterior applications
Available Options
Dogging
- CD – Cylinder Dogging
- HD – Hex Dogging (Standard)
- LD – Less Dogging
Door Width
- 36 – Fits 36" door width (Standard)
- 48 – Fits 48" door width
Stile & Door Applications
- Narrow-stile option for 2" narrow-stile glass doors – see V40xNS
Ratings
- F – 3-Hour Fire Rated
- H – Hurricane Rated
Strikes
- 99 – Surface Strike (Standard)
- 98 – Semi-Mortise Strike
Rail Extrusion
- 628 – Base Rail Extrusion (Standard)
- 711 – Base Rail Extrusion
Power Transfer & Conduit
- FC3 – Flexible 3' Conduit Kit, mounts to device end cap
- FC10 – Flexible 10' Conduit Kit, mounts to device end cap
- PT5 – Concealed Mortise Mount Power Transfer
- EH8 – Five-Knuckle Energy Transfer Hinge with 8 wires
Weatherized Option
For applications requiring additional protection against the elements, the V40 Series is also available in a weatherized configuration.
Installation & Resources
The V40 Series is engineered for straightforward installation and accurate hardware placement. Refer to the manufacturer's installation documentation for complete configuration details, available mechanical options, and installation requirements.
Installation Video: Detex V40 Series Installation Video
Instructions Catalog: Detex V40 Series Instructions & Catalog
