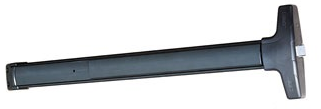

Detex V40 Series Rim Exit Device – Grade 1 Panic & Fire Exit Hardware
The Detex V40 Series Rim Exit Device is a secure, durable, and economical Grade 1 panic and fire exit device designed for commercial applications requiring dependable exit hardware and long-term performance. Available for wide and narrow stile doors, the V40 is suitable for single and double doors with mullions and provides reliable protection for a wide range of commercial, institutional, and industrial applications.
The V40 Series features a patented mounting plate and strike locator system that simplifies installation and provides precise alignment between the exit device, door, and frame. This innovative design helps installers save time while reducing installation errors.
Built with a heavy-duty ribbed aluminum rail extrusion and an angled end cap designed to deflect impact, the V40 is engineered to withstand demanding daily use. The device can withstand over 1,400 pounds of static pull force, providing an added level of security.
View Detex V40 Installation Video
Key Benefits
- Grade 1 Construction – Durable panic and fire exit hardware designed for demanding commercial applications.
- Versatile Door Compatibility – Designed for single and double doors with mullions.
- Wide & Narrow Stile Options – Available in configurations to accommodate different door styles and applications.
- Fast, Accurate Installation – Patented mounting plate and strike locator system simplifies installation and helps ensure precise alignment.
- Enhanced Security – Withstands more than 1,400 lbs. of static pull force.
- Durable Rail Construction – Heavy-duty ribbed aluminum extrusion provides strength and long-term durability.
- Replaceable Outside Trim – Outside trims can be changed or rekeyed without removing the exit device from the door.
- Impact Protection – Angled end cap helps deflect damage away from the device.
- Flexible Configuration – Multiple dogging, strike, door-width, fire, hurricane, and power-transfer options are available.
Product Features
- Grade 1 rim exit device
- Available as panic or fire exit hardware
- Designed for single and double doors with mullions
- Heavy-duty ribbed aluminum rail extrusion
- Patented mounting plate and strike locator
- Over 1,400 lbs. static pull force
- Angled end cap helps protect the device from impact
- Outside trim can be changed or rekeyed without removing the device
- Available in 36" and 48" door widths
- Multiple dogging options
- Surface or semi-mortise strike options
- Optional fire-rated and hurricane-rated configurations
- Optional power-transfer and energy-transfer accessories
Dogging Options
Choose the dogging configuration that best matches your application:
- CD – Cylinder Dogging
- HD – Hex Dogging (Standard)
- LD – Less Dogging
Door Width Options
- 36 – Fits 36" Door Width (Standard)
- 48 – Fits 48" Door Width
For narrow-stile glass doors with approximately 2" narrow stiles, see the Detex V40xNS narrow-stile configuration.
Rating & Application Options
- F – 3-Hour Fire Rated
- H – Hurricane Rated
- 99 – Surface Strike (Standard)
- 98 – Semi-Mortise Strike
- Available with 628 base rail extrusion (standard)
- Available with 711 base rail extrusion
Power Transfer & Electrification Options
The V40 Series can be configured with accessories for electrified applications and power transfer:
- FC3 – Flexible 3' conduit kit; mounts to device end cap
- FC10 – Flexible 10' conduit kit; mounts to device end cap
- PT5 – Concealed mortise-mount power transfer
- EH8 – Five-knuckle energy transfer hinge with 8 wires

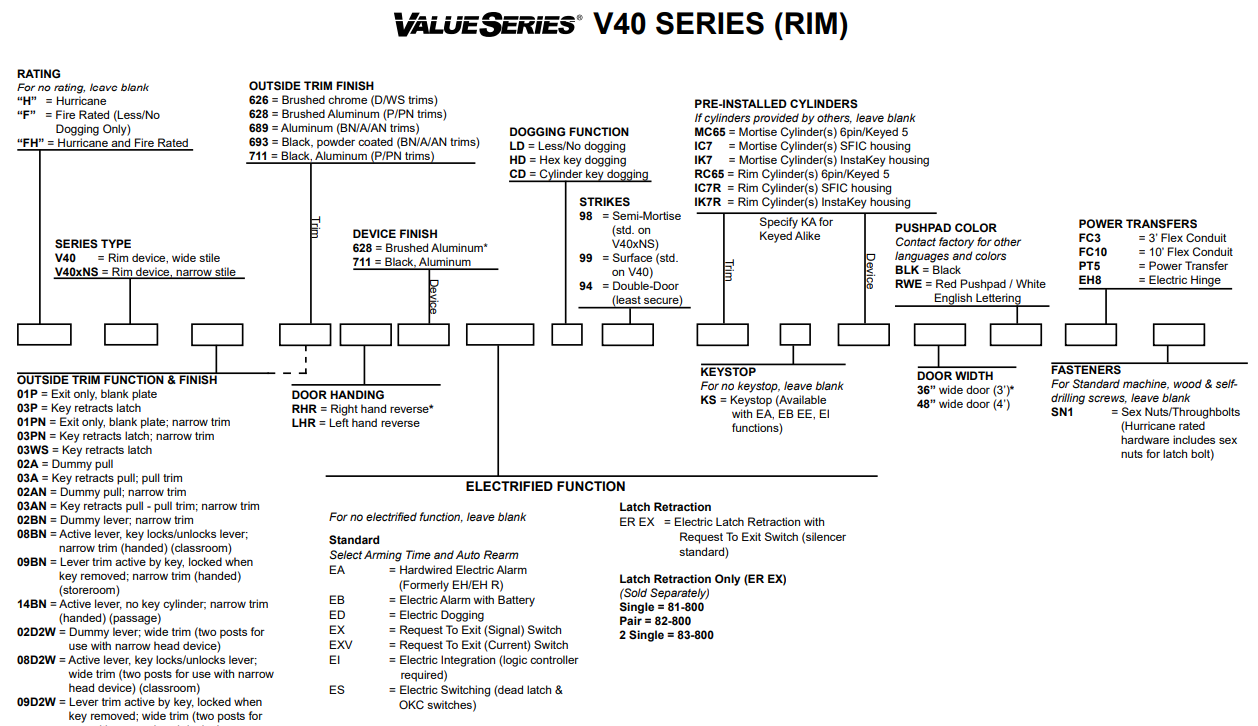

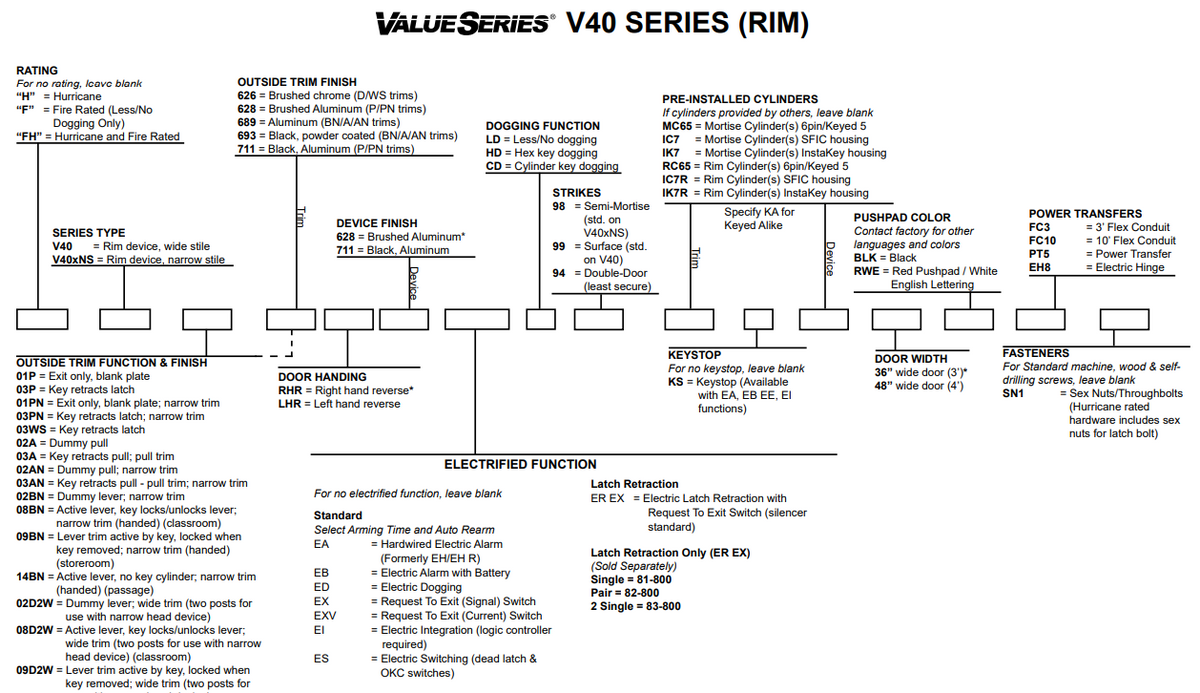

For the complete selection of available configurations and mechanical options, refer to the V40 Series How to Order documentation.
View Detex V40 Instructions & Catalog
Also Available in a Weatherized Version
For exterior doors, gates, or installations exposed to moisture and harsh weather conditions, the V40 Series is also available in a weatherized configuration.
View Detex V40 Weatherized Series
Ideal Applications
The Detex V40 Series is well suited for:
- Commercial buildings
- Retail stores
- Office buildings
- Schools and educational facilities
- Industrial facilities
- Warehouses
- Institutional buildings
- Single and double doors
- Doors with mullions
- Fire-rated openings
- Hurricane-rated applications
- Electrified access control applications
Reliable Grade 1 Exit Hardware at an Economical Price
The Detex V40 Series Rim Exit Device delivers the durability, security, and installation flexibility expected from Grade 1 panic and fire exit hardware while maintaining an economical price point. With multiple dogging, strike, door-width, fire, hurricane, and electrification options, the V40 can be configured to meet a wide range of commercial door requirements.
