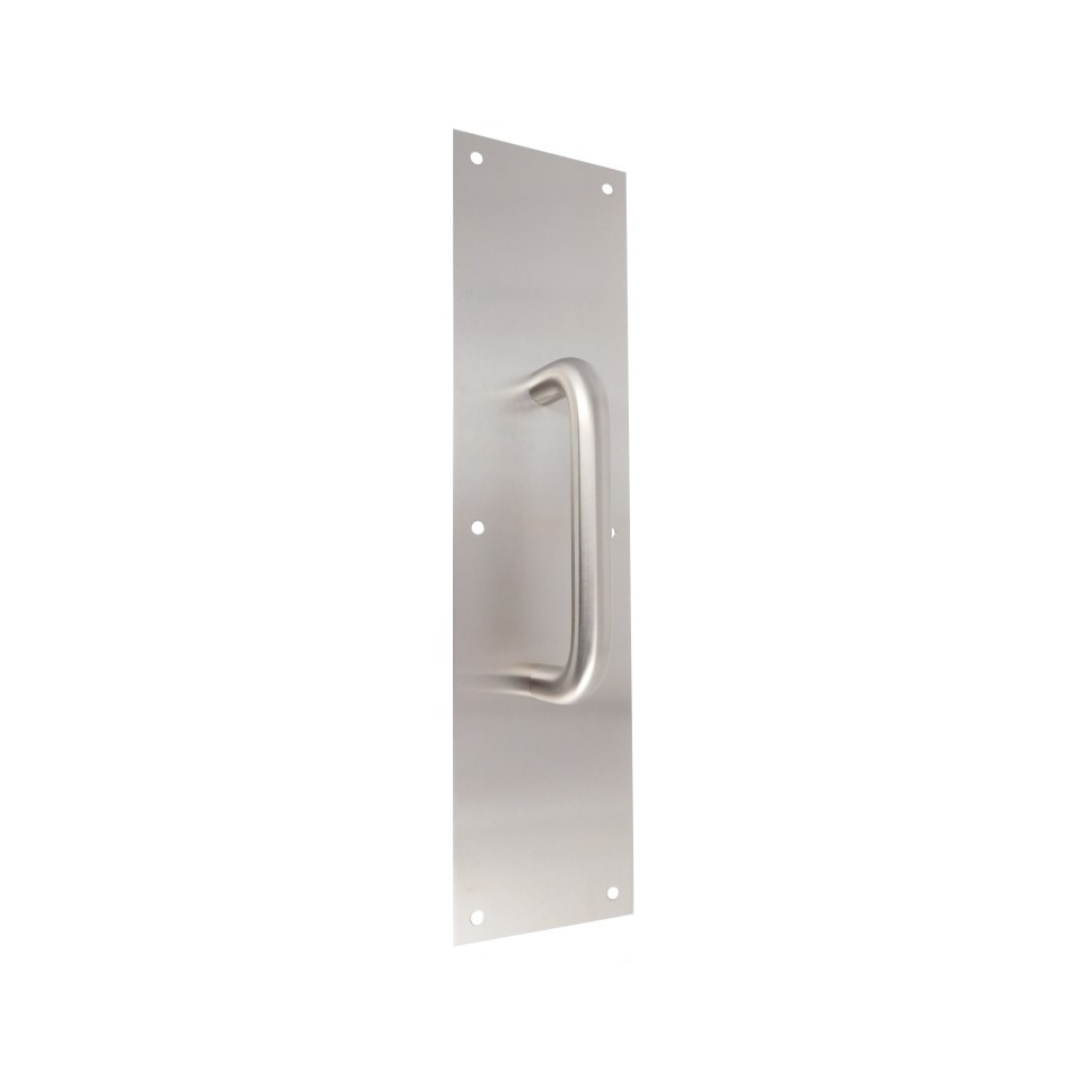

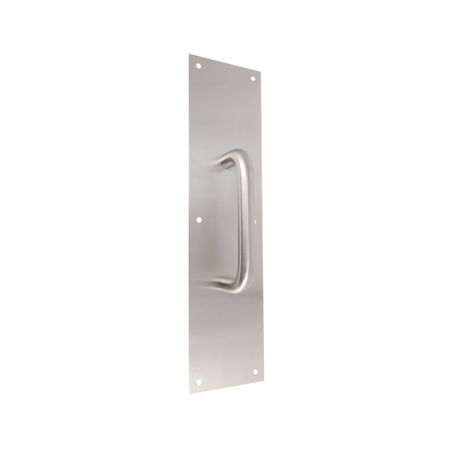

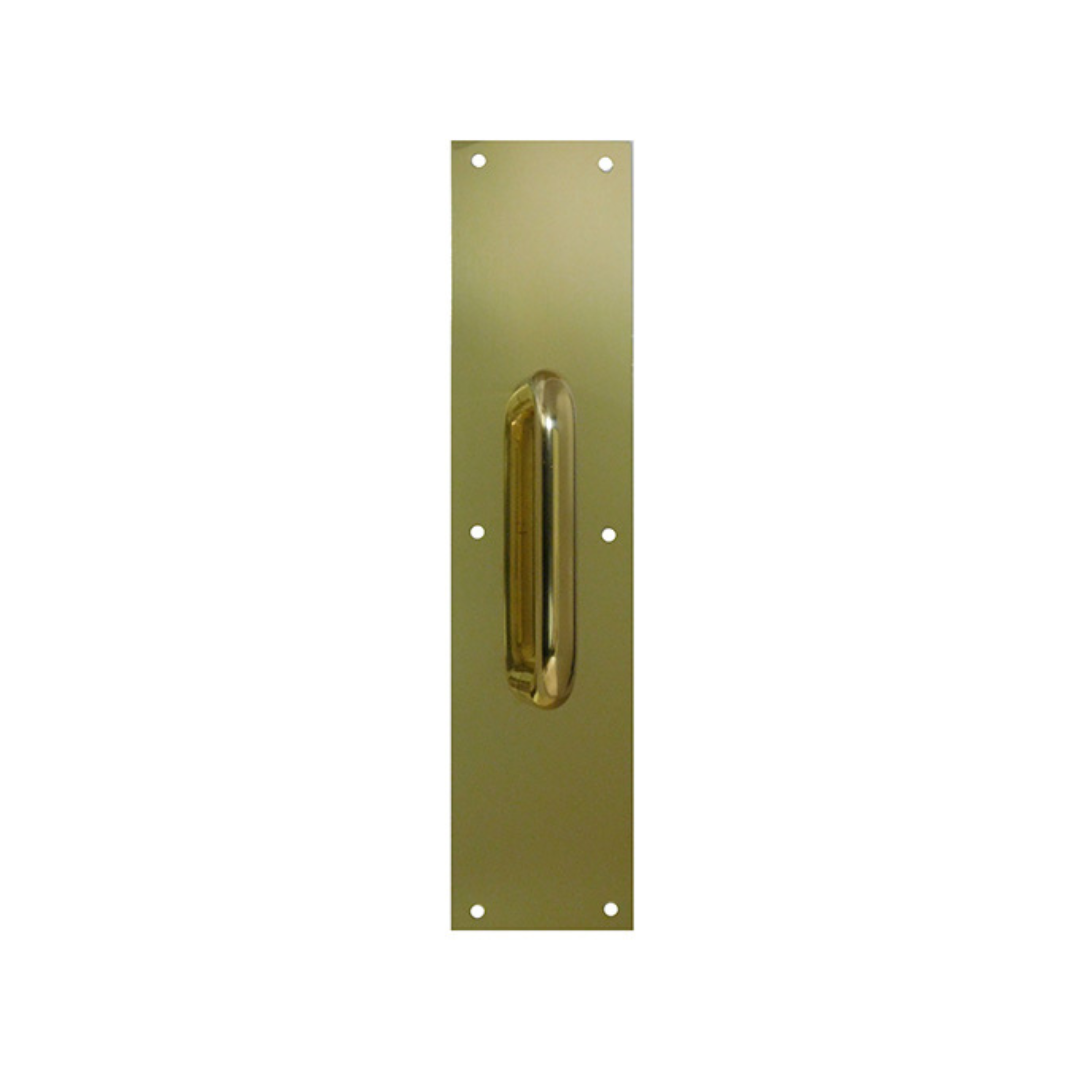

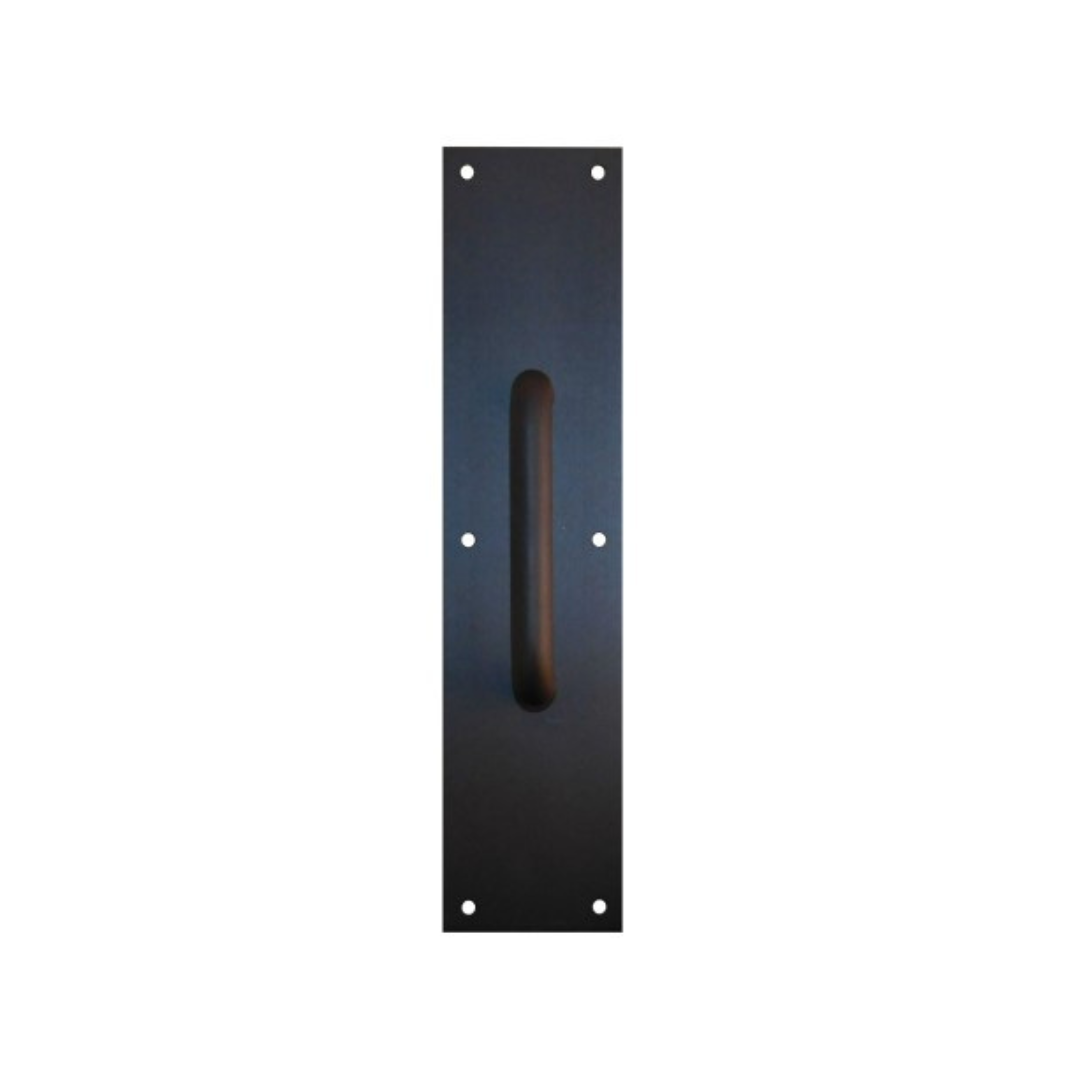

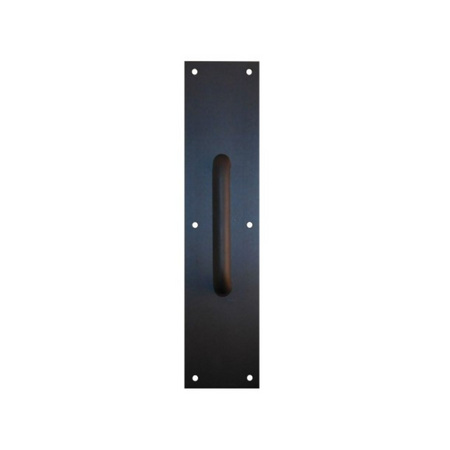

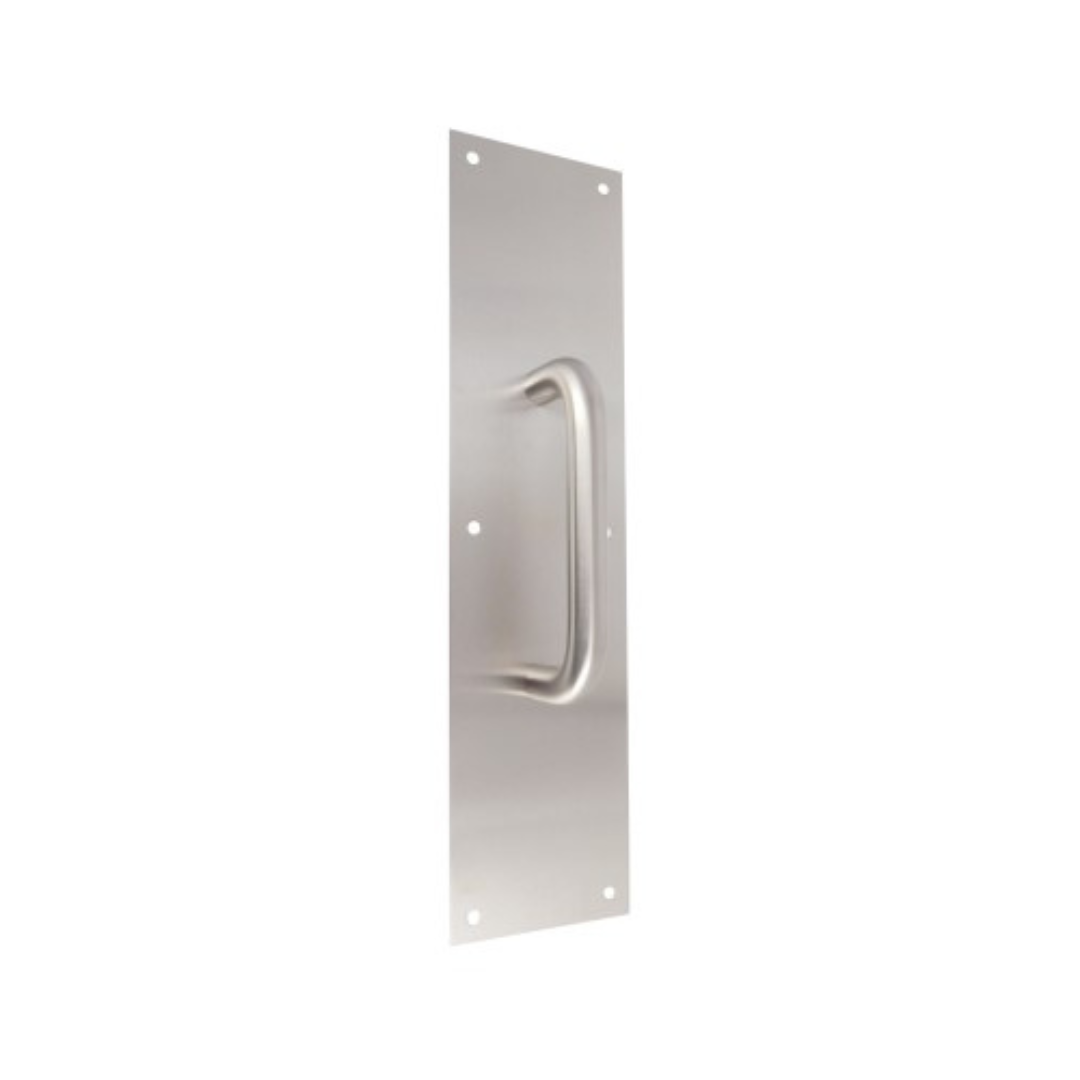

DON-JO 7017 Pull Plate with Round Pull
Product Specifications
- Finishes: 605, 606, 613, 628, 629, 630
- Product Type: Pull Plate
- ANSI: J405
- Shelf Pack: 1

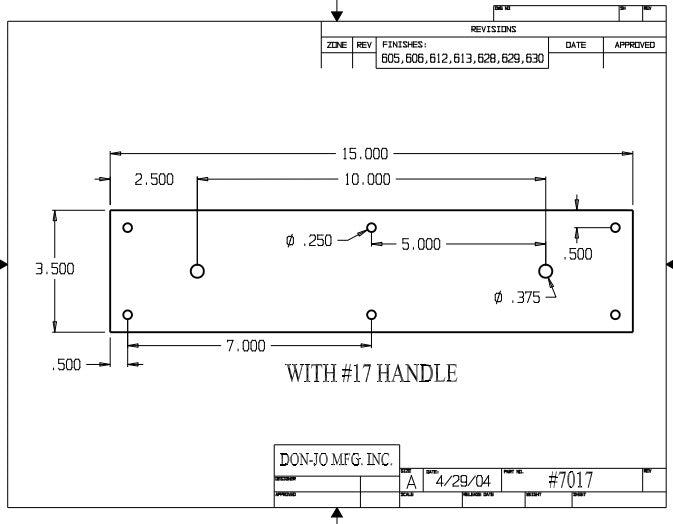

| Model | Length | Width | Projection | CTC | Diameter | Clearance |
| 7017 | 15" | 3-1/2" | 2-1/4" | 10" | 3/4" | 1-1/2" |
| Model | Length | Width | Projection | CTC | Diameter | Clearance |
| 7017 | 15" | 3-1/2" | 2-1/4" | 10" | 3/4" | 1-1/2" |
