Power Supply/Charger, Selectable 12/24VDC Output at 1.5A Continuous, Dual Lock Outputs, Aux. Output and Supervised Fire Alarm Interface
• Selectable 12/24VDC Output at 1.5A Continuous
• Built-in Battery Charger
• Fail-Safe & Fail-Secure Lock Outputs
• Supervised Fire Alarm/Access Control Interface
• AC Fail, Battery Presence/Fail Supervision
• Lifetime Warranty

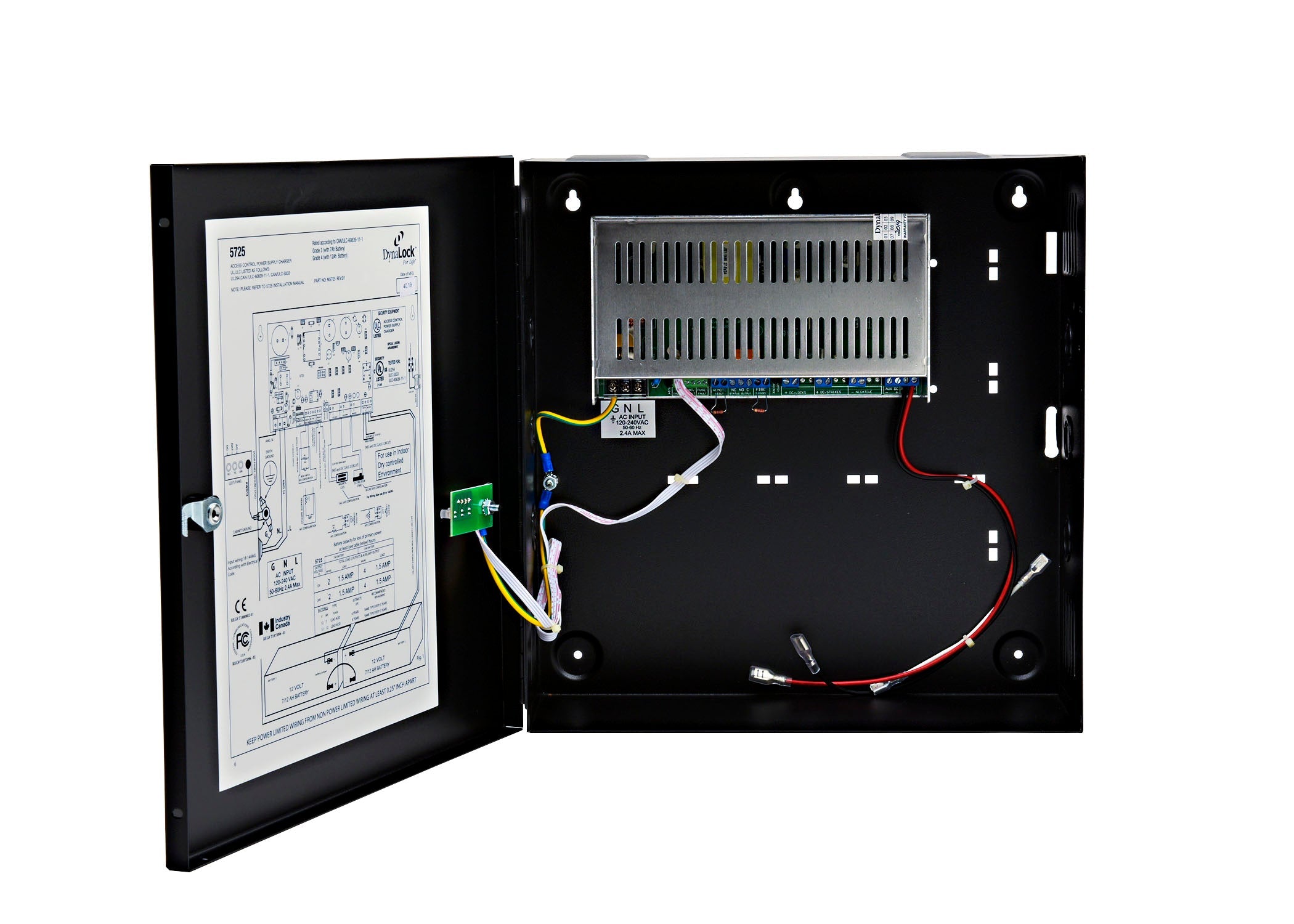

The DynaLock 5725 Series Power Supply/Charger supplies a regulated 12 VDC or 24VDC at 1.5 Amps nominal continuous current. It’s housed in hinged, locking steel enclosure
capable of accommodating one or two optional 7AH or 12AH lead acid rechargeable standby batteries. Model 5725 features individual Class 2 outputs for failsafe or fail-secure locking devices, a auxiliary 500mA Class 2 output, a supervised input for fire alarm or access control and a cascade facility, allowing two or more power supplies to be tied together for simultaneous fire alarm sequencing.
The 5725 is UL Listed in the US and Canada, CE, FCC and Industry Canada compliance registered. See page 4 for a full breakdown of agency listings and registrations.
Features & Specifications
• Input = 120-240 VAC, 50-60Hz at 2.4 Amps Maximum
• Overall Output = 1.5 Amps Continuous at 12 or 24VDC
• Dual 500mA Fire Alarm/Access Controlled Lock Outputs
with Electronic Over-Current Protection Rated to 1 Amp
• Auxiliary 500mA Output
• Supervised Fire Alarm/Access Control Interface with
Selectable Latching and Reset Input
• Built-in Dedicated Battery Charger
• 1 Amp Maximum Charging Current
• Auto Switchover To Battery Standby Upon AC Failure
• Automatic Battery Load Test Every 48 Hours
• Battery Reversal Protection
• Low Battery Indication at 11.4/22.8 Volts
• Automatic Low Battery Disconnect at 10/20.2 Volts
• AC, DC and Battery Status LED’s on Enclosure Door
• AC and Battery Failure CMOS Relay Outputs
• Battery Leads Included
• Key-Locked Enclosure Lid (Includes 2 Keys)
• Enclosure Size: 12.7”W x 13”H x 4.3”D
(323mm x 331mm x 110mm)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Lifetime Warranty
