HES

5000 HES Electric Strikes, Bolts, Magnet

SKU: 5000
Regular price $108.78
Regular price Sale $201.00 Sale price $108.78




Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike

Inventory loading

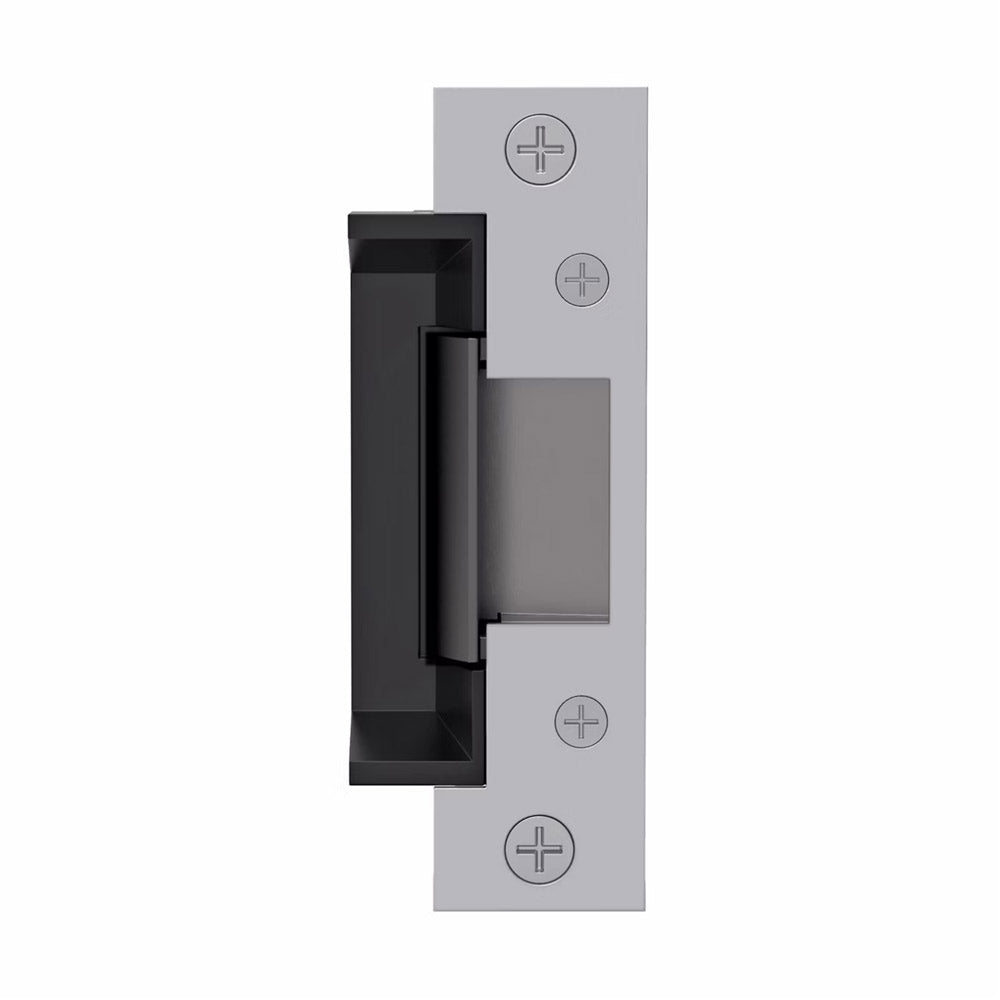

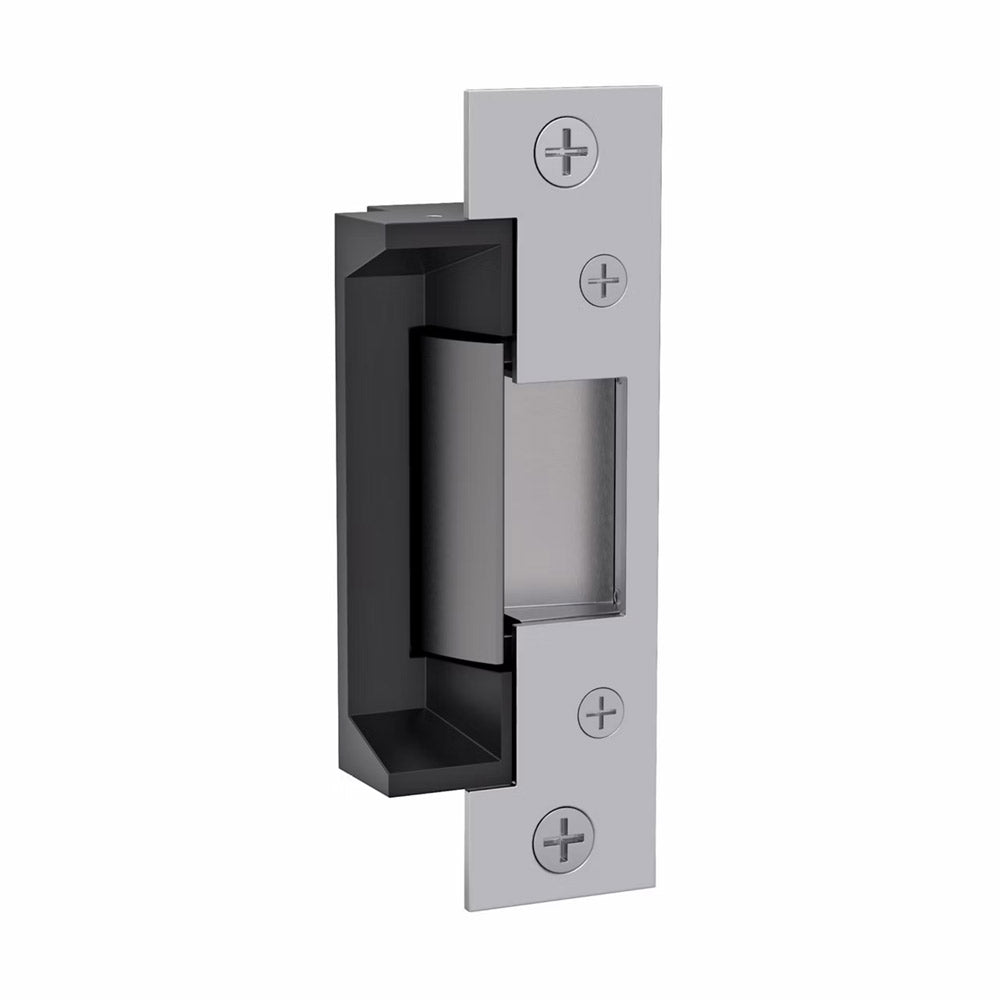

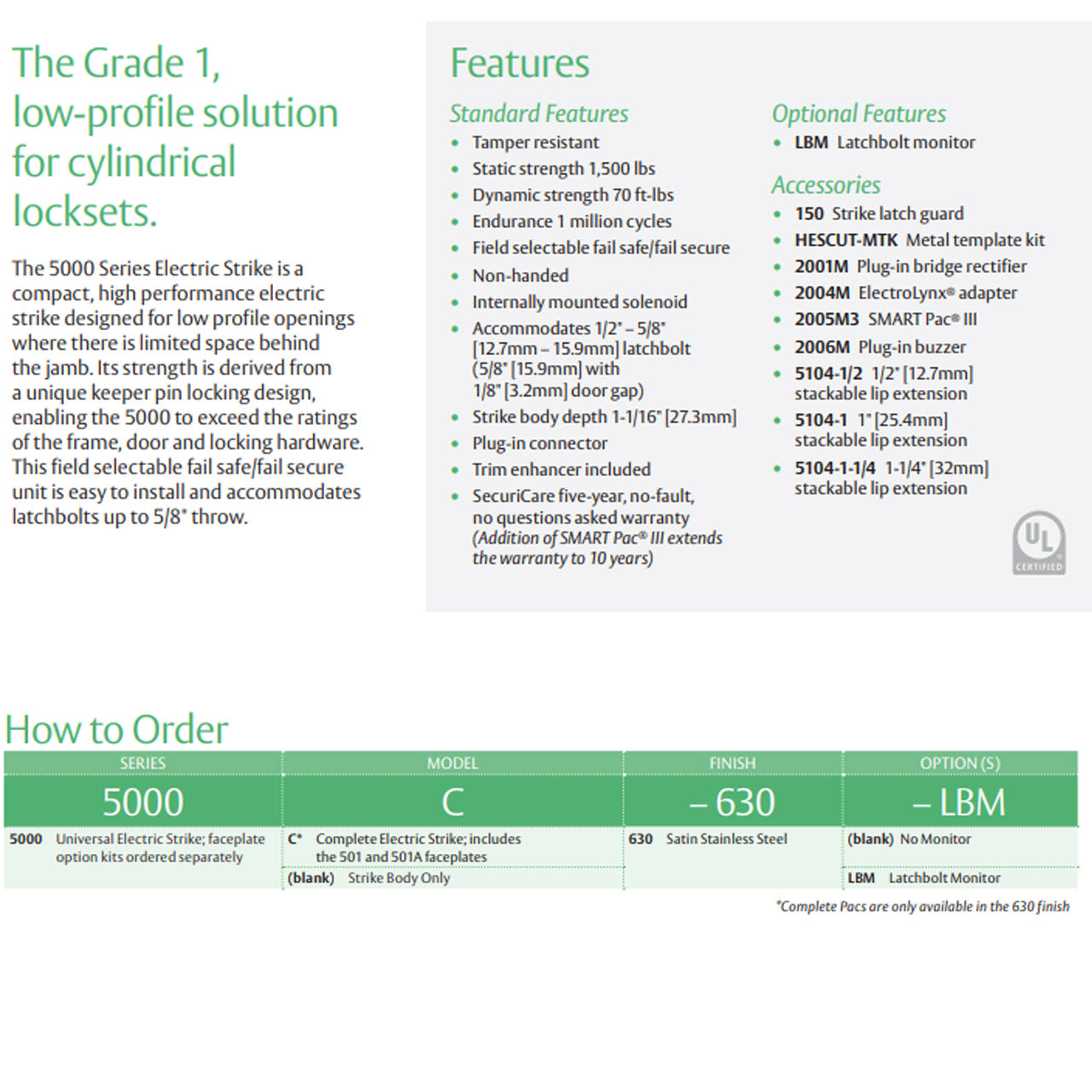

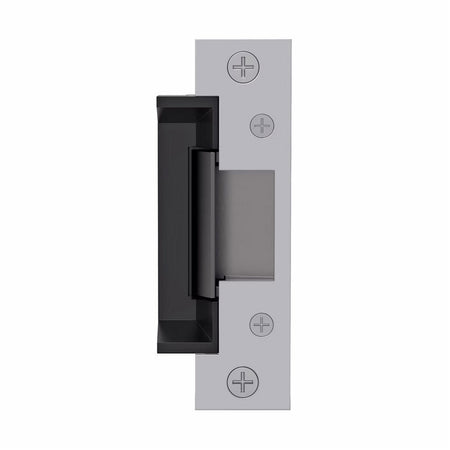

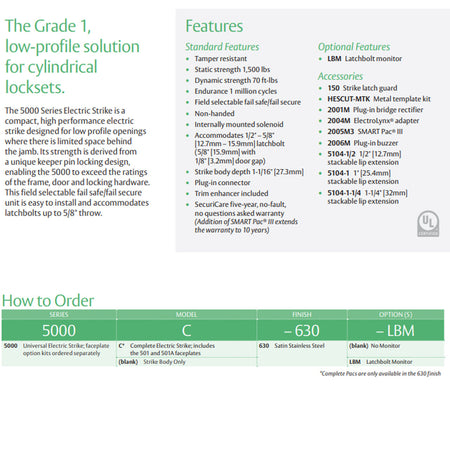

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

AMP DRAW: .24 @ 12V .12 @ 24V
APPLICATION: Multi-Application
BAA QUALIFIED: Yes
CONFIGURATION: Centered
COUNTRY OF ORIGIN: USA
FACEPLATE SIZE: None
FINISH: None
FIRE RATED: No
FLORIDA: 66
FRAME APPLICATION: Metal or Wood
FUNCTION: Fail Secure
GRADE: Grade 1
HEIGHT: 2.25"
HOLDING FORCE: 1500
ILLINOIS: 345
KEEPER SIZE: 1/2 In.
LENGTH: 10.5"
LIMITED WARRANTY: 5 Years
MANUFACTURER: HES
MASSACHUSETTS: 480
MECHANICAL OPTIONS: Strike Body Only
NEVADA: 18
OPERATING VOLTAGE: 12VDC/24VDC
SERIES: 5000 Series Electric Strikes
SWITCH TYPE: None
USE WITH: Cylindrical Locks
WEIGHT: 1 lbs.
WIDTH: 3.5
