HES

8500-630 HES Electric Strikes

SKU: 8500-630
Regular price $325.30
Regular price Sale $606.00 Sale price $325.30

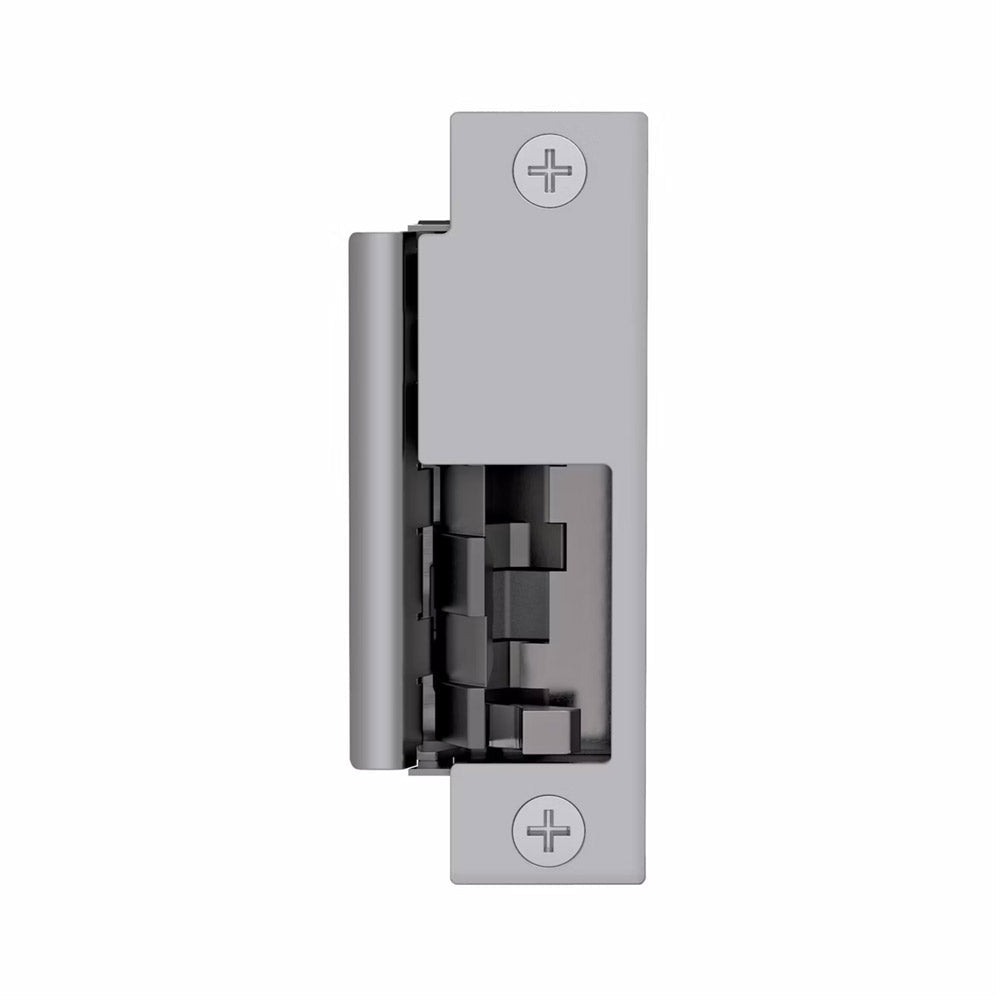

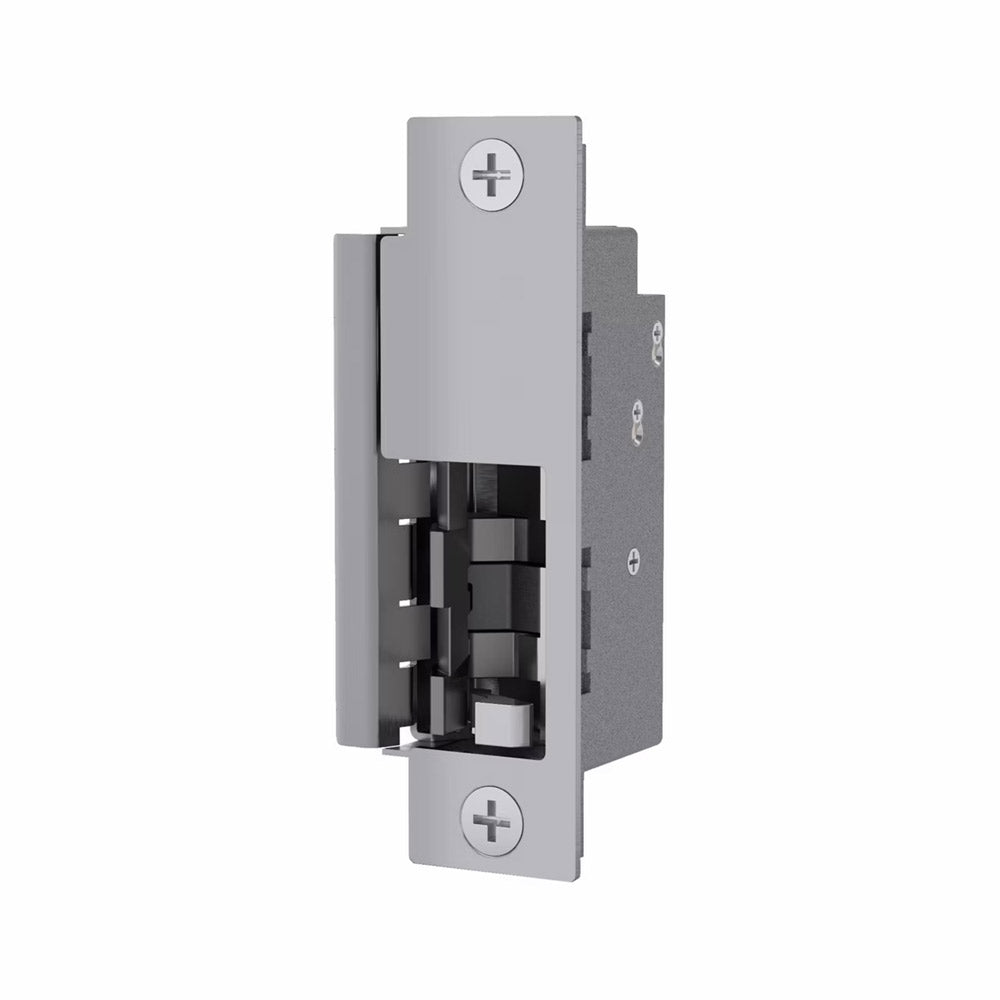

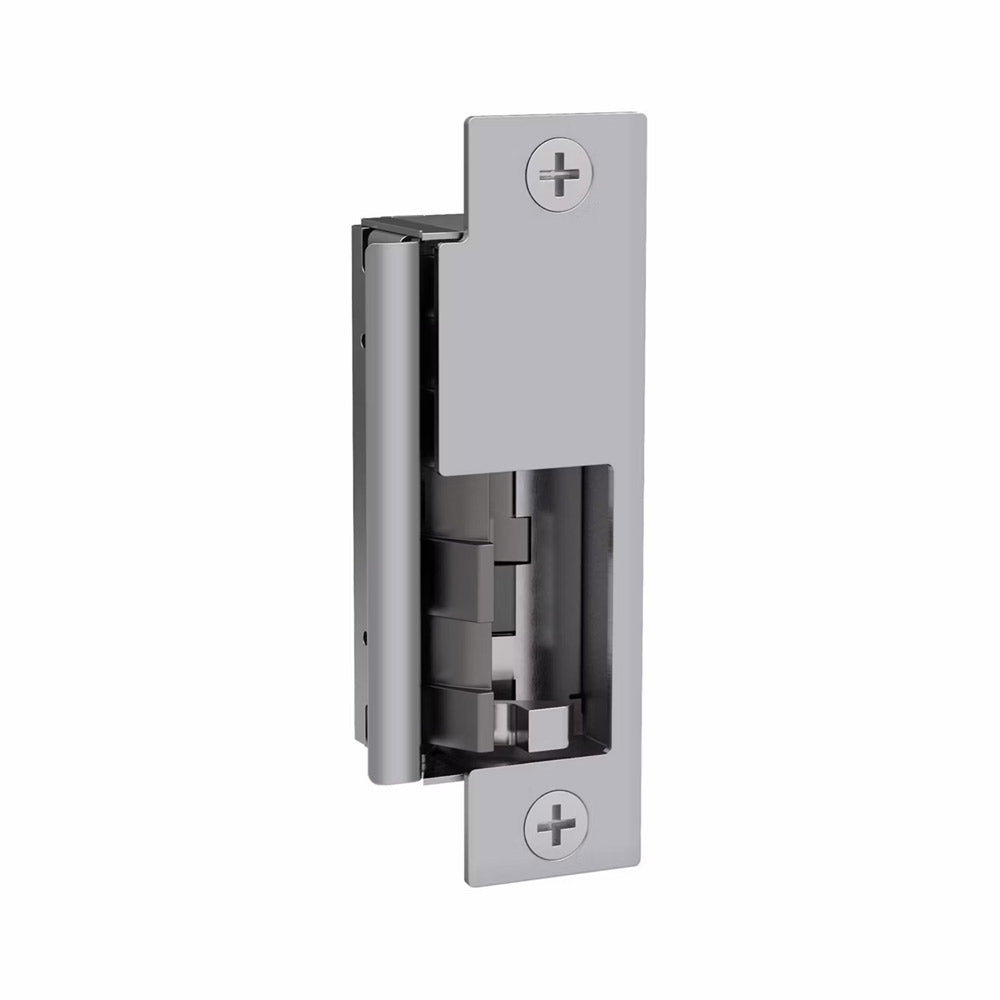

Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike, Satin Stainless Steel

Inventory loading
The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.
AMP DRAW: .24 @ 12V .12 @ 24V
APPLICATION: Multi-Application
BAA QUALIFIED: Yes
BASE MATERIAL: Stainless Steel
CONFIGURATION: Universal
COUNTRY OF ORIGIN: USA
FINISH DESCRIPTION: Satin Stainless Steel
FINISH TITLE: 630/US32D
FIRE RATED: Yes
FRAME APPLICATION: Metal or Wood
FUNCTION: Fail Safe/Fail Secure
GRADE: Grade 1
HEIGHT: 2.25
HOLDING FORCE: 1500
KEEPER SIZE: 3/4 In.
LENGTH: 10.5
LIMITED WARRANTY: 5 Years
MANUFACTURER: HES
OPERATING VOLTAGE: 12VDC/24VDC
SERIES: 8500 Series Electric Strikes
SWITCH TYPE: None
USE WITH: Mortise Locks
WEIGHT: 1
WIDTH: 3.375
