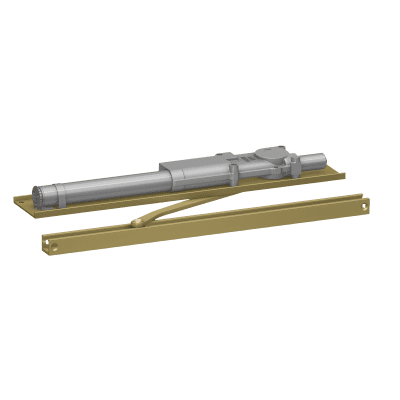

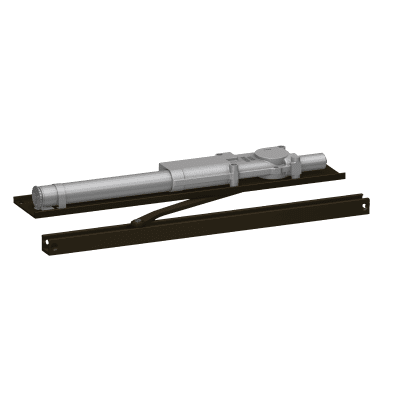

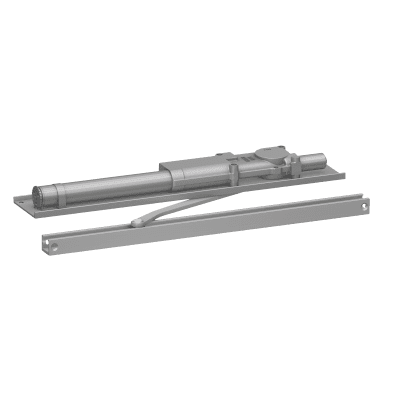

LCN 2030 Overhead Concealed Door Closer

SKU: 2031-STD-689
$1,050.14

2030/5030/6030 Series Closers


These heavy-duty closers are designed for concealment in narrow aluminum transoms.

Overview

The heavy-duty 2030/5030/6030 Series Pacer® closers are designed for concealment in a narrow minimum 1-3/4” aluminum transom, meeting ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 Series, a forged steel double-lever arm for the 5030 Series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty.

Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Body Construction

  • Cast iron cylinder
  • Full-complement bearing
  • 1-1/8” diameter piston

Quality and Durability

  • All-weather fluid
  • Forged steel arm
  • 15-year warranty

Installation

  • Designed to fit in a narrow header
  • 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
  • 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6
  • UL and cUL listed for self-closing doors without hold-open
  • Tested and certified under ANSI/BHMA A156.4 Grade 1
  • Spring power and latch speed adjustments are independent for either swing
  • Backcheck and general speed adjustments are common for both swings
  • Optional plated finish on arm and fasteners
  • Meets ADA requirements
  • Aluminum frames require 1-3/4” (44mm) x 4” (102mm) tube
  • Standard or optional custom powder coat finish
  • Optional plated finish
  • Optional SRI primer for installations in corrosive conditions available with powder coat only

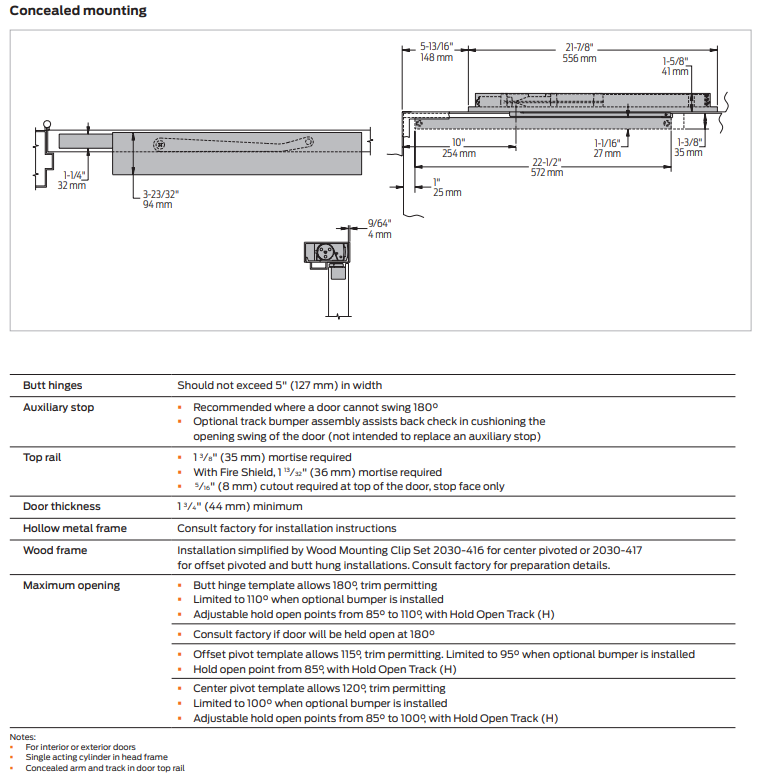

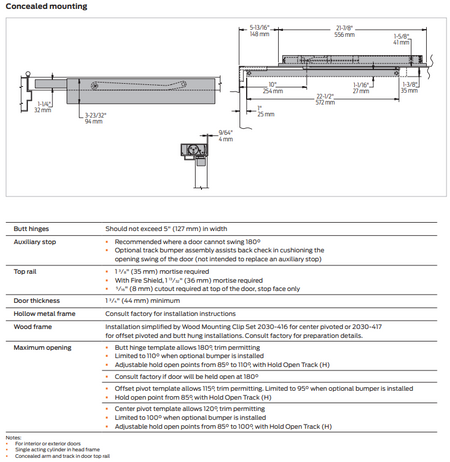

  • The 2030 Series mounts in the frame with a concealed track in the door.
  • The 5030 Series mounts in the frame with an exposed double-lever arm.
  • The 6030 Series mounts in the frame with a concealed track in the door. It is also a double-acting closer.

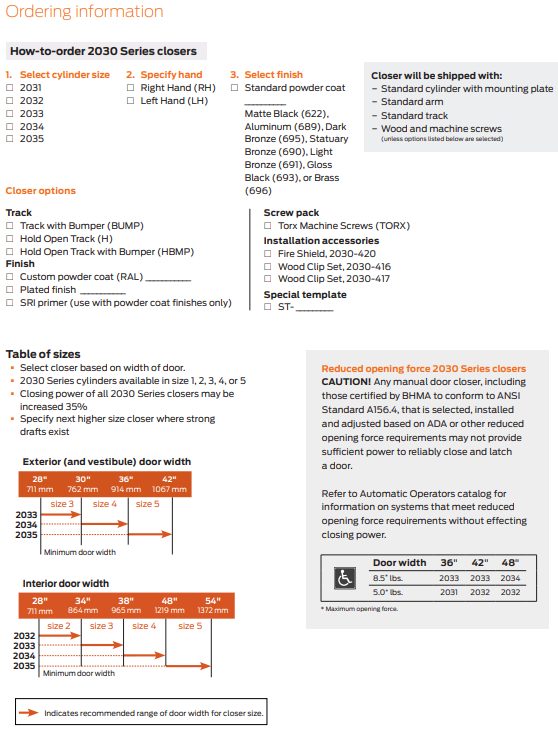

Size:
  • 2031 - Size 1
  • 2032 - Size 2
  • 2033 - Size 3
  • 2034 - Size 4
  • 2035 - Size 5
