General Features
- N Series: National Keyway
- 100M MRI Series deadbolt door lock
- All non-ferrous (non-magnetic) materials and parts
- Suitable for use in Magnetic Resonance Imaging suites, where all components must have non-magnetic properties
- For standard locks, see 100DR
- For weather-resistant locks, see 100B
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA Grade 1 (E07121)
- Barrel lengths: 15/16" or 1-3/8" (specify barrel length when ordering)
- Barrel diameter: 7/8"
- Standard function: locks are non-handed with a key removable in both the locked and unlocked positions.
- Optional key-retaining* function: Specify 100MKR for right-hand or 100MKL for left-hand. NOTE: Specify right-hand or left-hand for key-retaining function only. See key-retaining chart.

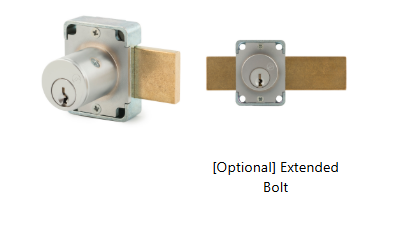

- Optional extended bolt - Specify -LB option
- 26D finish
- Packed 10 per box
- Includes bar strike 56-1
- Includes copper-plated non-magnetic keys (2 per lock)
- US Patent Nos: 4,899,563; 4,920,774
- *Key-retaining = key removable in locked position only
- WARNING (California Proposition 65)
Available Separately
- An extended bolt increases the overall bolt length by 1-1/2" (3/4" for both left- or right-hand bolt projections). For bolt only, specify part-number 15-1-35.
- Spacers WP20, WP21, WP22, WP23
- Through-bolt trim plate 1/8" thickness ETS2-125
- Through-bolt trim plate 1/4" thickness ETS2-250
- Through-bolt trim pull ETS2-PL
- Through-bolt trim spacer template ETST2

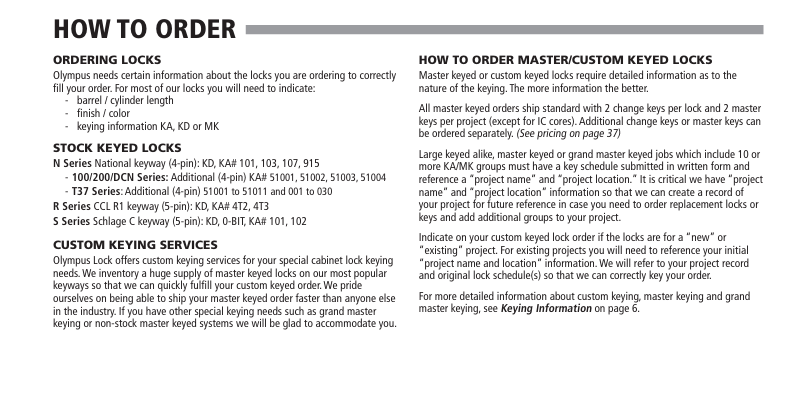

Keying
- N Series: National Keyway
- National D4291(4-pin) or D4292 (5-pin) keyway
- KD/KA - 4 pin standard
- KA# 101, 103, 107, 915
- Master keyed - 5 pin standard
- Includes keys (2 per lock)
- Use for rekeying N1 Pin Kit
- 5-pin copper plated keyblank = (equivalent to NA12, 1069LA) KBN-5B
