General Features
- N Series: National Keyway
- 200M deadbolt drawer lock
- All non-ferrous (non-magnetic) materials and parts
- Suitable for use in Magnetic Resonance Imaging (MRI) suites, where all components must have non-magnetic properties
- Easily rekeyable via set screw cylinder release mechanism
- For standard locks, see 200DW.
- For weather-resistant locks, see 200B.
- Solid brass pin tumbler cylinder drilled for 5 pins
- (E07041) ANSI/BHMA Grade 1
- Barrel lengths: 15/16", 1-3/8" or 1-5/8" (see below). Specify barrel length when ordering
- Barrel diameter: 7/8"
- Standard function: locks are non-handed with a key removable in both the locked and unlocked positions.
- Optional key-retaining* function: Specify 200MKV for vertical-hand or 200MKI for inverted hand. NOTE: Specify vertical hand or inverted hand for key-retaining function only. See key-retaining chart.

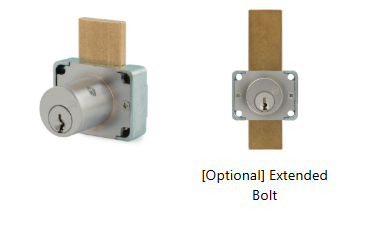

- Optional extended bolt - specify -LB option
- US26D finish
- Includes bar strike 56-1
- Packed 10 per box
- US Patent Nos: 4,899,563; 4,920,774
- 1-5/8" barrel length for 3/4" x 3/4" drawer construction
- WARNING (California Proposition 65)
Available Separately
- The extended bolt increases bolt length by 11/16" when in the locked position. For bolt only, specify part-number 15-1-35.
- Spacer WP20, WP21, WP22, WP23
- Through-bolt trim plate 1/8" thickness ETS2-125
- Through-bolt trim plate 1/4" thickness ETS2-250
- Through-bolt trim pull ETS2-PL
- Through-bolt trim spacer template ETST2

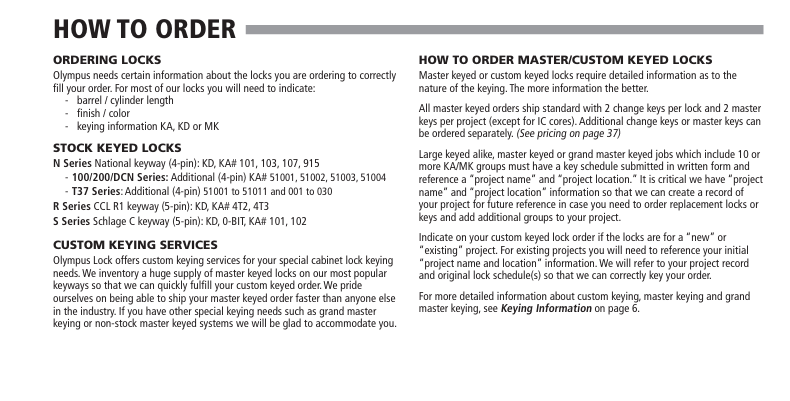

Keying
- N Series: National keyway
- National D4291(4-pin) or D4292 (5-pin) keyway
- KD/KA - 4 pin standard
- KA# 101, 103, 107, 915
- Master keyed - 5-pin standard
- Includes keys (2 per lock)
- 5-pin copper plated keyblank = (equivalent to NA12, 1069LA) KBN-5B
