General Features

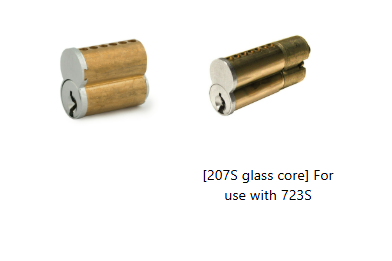

- 207S = 7 pin core for use with 723S sliding door cylinder housing

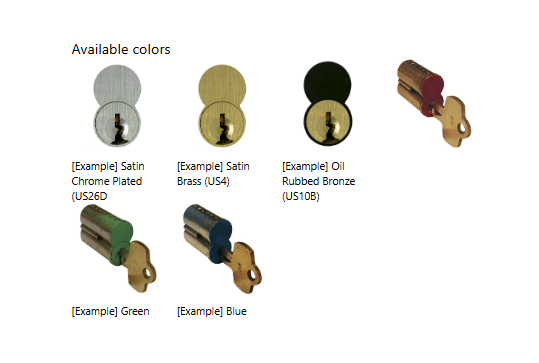

- We can match BEST painted cores (blue, green, red) Painted cores are available in the 207 (7-pin) series only.
- 26D or US4 finish
- US10B finish available on A keyway only
- WARNING (California Proposition 65)
Documents
Keying
- Uncombinated: Core only (does not include pins, springs or keys)
- Keyed cores: Specify KA, KD or MK.
- Keyed cores ship standard with two change keys per cylinder. Two additional keys (either control keys and/or master keys) are provided at no charge per order--specify at time of order.
- Additional keys available separately. See keyblanks section.
Dimension Illustrations
For use with
Requires 207S series cores 723 Series
Part Numbers
- Part-number designation: (x*) = keyway letter, (y*) = finish
- 206-(x*)-(y*) = 6 pin core, uncombinated
- 206-(x*)-(y*)-CUST = 6 pin core, custom keyed
- 207-(x*)-(y*) = 7 pin core, uncombinated
- 207-(x*)-(y*)-CUST = 7 pin core, custom keyed
- 207S-(x*)-(y*) = For 723S - 7 pin core, uncombinated
- 207S-(x*)-(y*)-CUST = For 723S - 7 pin core, custom keyed207-A-GR = GREEN core, 7 pin, A keyway, keyed core
- 207-A-RD = RED core, 7 pin, A keyway, keyed core
- 207-A-BL = BLUE core, 7 pin, A keyway, keyed core
- KB400K(x*) = Key blank for 6 or 7 pin cores
- KB400K(x*)-CUST = Cut key for 6 or 7 pin cores
- KB400K(x*) = Key blank for 6 or 7 pin cores
- KB400K(x*)-CUST = Cut key for 6 or 7 pin cores
