General Features
- Cam lock - SFIC
- Accepts Best, Arrow, Falcon or equivalent 6 or 7 pin small format interchangeable core cylinders
- Similar to Best original 1E series
- (E07261) ANSI/BHMA Grade 1
- Cylinder diameter: 1-1/8
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-1/8"
- Min. material thickness: 0.08"

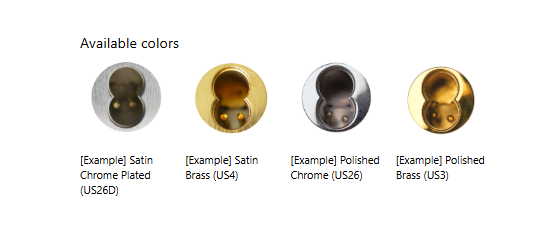

- US26, 26D, US3 or US4 finish
- Packed 10 per box
- Includes all parts for key-retaining or non-key-retaining function
- See all alternate cams and accessories
- WARNING (California Proposition 65)
Available Separately
- Long inverted cam 720-3-3
- Extra long 3" vertical cam 720-3-4
- Long inverted cam with shallow offset 720-3-5
- For extending the face of the lock out from casework material Trim collars

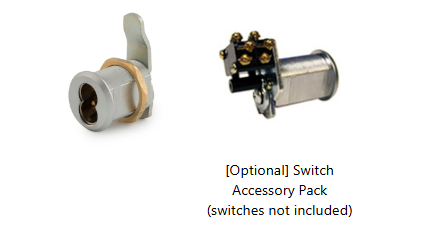

- Includes parts to convert lock for use as a switch lock (does not include electronic switches) SW-1 switch accessory pack
- Double D Metal Punch (punches a 7/8" x 1-1/8" cutout in sheet metal for cam lock installation) CL-MP-118
Definitions
- Standard function = key removable in the locked and unlocked position
- Key-retaining function = key removable in the locked position only
Includes
Videos
Cores for Locks
- All locks sold less core
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders
- See our SFIC compatible cores IC core section
Documents
Testing
(E07261) ANSI/BHMA A156.11 Grade 1
Dimension Illustrations
